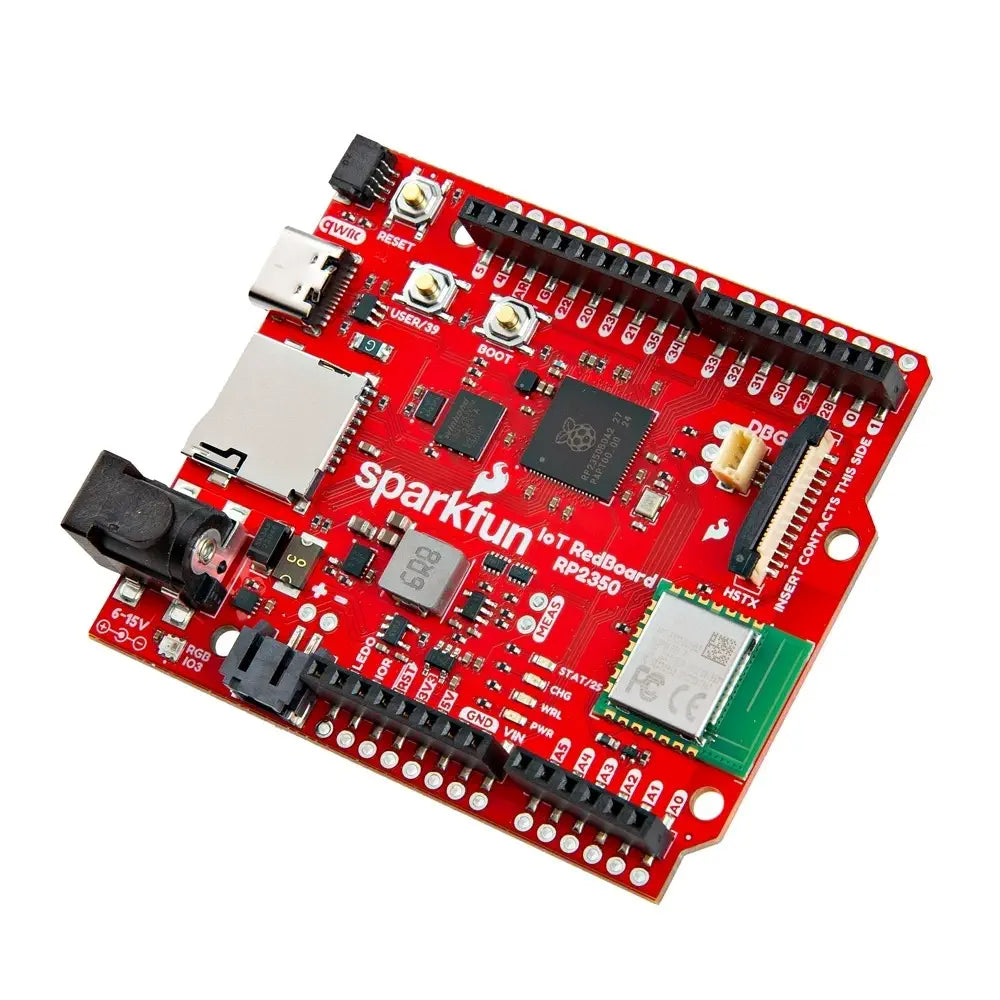

SparkFun IoT RedBoard - RP2350

Description SparkFun IoT RedBoard - RP2350 Integrates RP2350 with RM2 for the robust wireless platform Features dual-core Arm Cortex-M33 and RISC-V architecture Includes WiFi 4 and Bluetooth 5.2 support Offers 48 GPIO and diverse communication interfaces Supports C, MicroPython, and Arduino programming The SparkFun IoT RedBoard - RP2350 integrates the Raspberry Pi RP2350 microcontroller with the RM2 radio module, offering a robust wireless development platform in an Arduino R4 form factor. This board features integrated battery power and charging circuits, a microSD card slot, and a Qwiic connector. It also includes a 22-pin ribbon cable connector linked to the RP2350's high-speed transmit pins, providing flexibility in connection options. The RP2350 microcontroller is equipped with a dual-core, dual-architecture configuration, allowing users to choose between Arm Cortex-M33 cores, Hazard3 RISC-V cores, or a combination of both, operating at up to 150 MHz. This variant includes 48 GPIO pins, eight analog inputs, and multiple communication interfaces such as UART, SPI, and I2C, along with USB support. The RM2 radio module supports WiFi 4 and Bluetooth 5.2, with capabilities for both standard and enhanced data rates. The board is equipped with 16MB of external Flash and 8MB of PSRAM, connected via the QSPI interface, and supports programming in C, MicroPython, and Arduino. Note: Ensure proper handling of the board to avoid damage to the components. View more What's Included 1x SparkFun IoT RedBoard - RP2350 Links Website SparkFun IoT RedBoard RP2350 - GitHub Repo PDF File SparkFun IoT RedBoard - RP2350 - Schematic ZIP File SparkFun IoT RedBoard - RP2350 - KiCad Files Specifications RP2350B Integrated USB interface 48 GPIO pins 8 ADC pins 1 UART 1 I2C 1 SPI 8 HSTX pins Raspberry Pi Radio Module (RM2) WiFi 4 Bluetooth 5.2 BDR (1 Mbps) EDR (2 or 3 Mbps) 16MB Flash 8MB PSRAM MicroSD Card Slot MCP73831 Single-Cell LiPo Battery Charger MAX17048 Battery Fuel Gauge 3-pin 1mm Vertical Debug Connector 22-pin 0.5mm Vertical HSTX Ribbon Connector Qwiic Connector LEDs: Red power LED Yellow battery charge status LED Blue status LED tied to RP2350 GPIO25 Blue status LED tied to RM2 IO0 WS2812 RGB LED Data In connects to RP2350 IO3 Buttons: RESET BOOT USER Dual ARM Cortex-M3 and Hazard3 RISC-V Processors User-selectable for dual-cores 520kB integrated SRAM in 10 banks 3.3V-tolerant GPIO (powered) with 3.3V failsafe (unpowered) Peripherals: 2 UART 2 SPI 2 I2C 8 HSTX Pins (Raspberry Pi's High-speed transmit interface) 24 PWM Channels 12 PIO State Machines 6 Analog Input Channels
