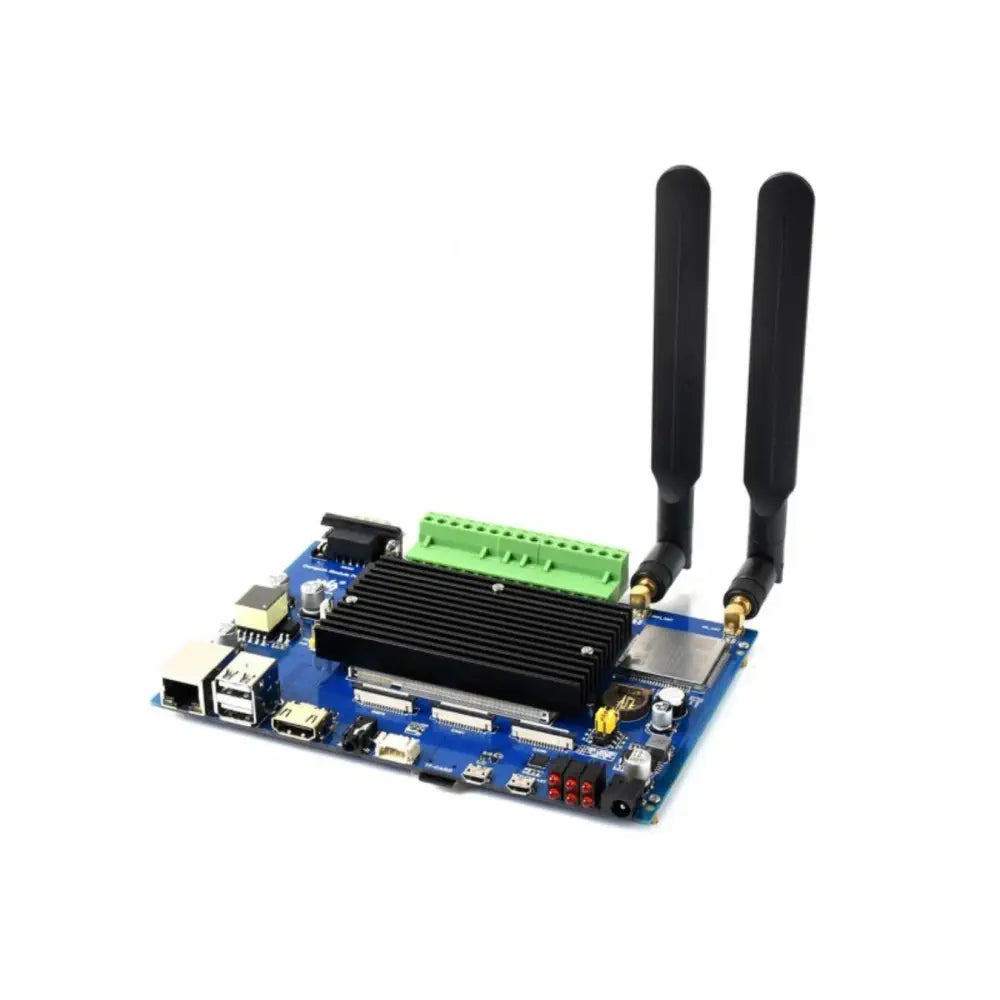

Waveshare Industrial IoT 4G/PoE Base Board for Raspberry Pi CM3/CM3+
Description Waveshare Industrial IoT 4G/PoE Base Board Designed for Raspberry Pi CM3 / CM3+ Series (Not Included) Adopts SIM7600G-H global 4G/3G/2G communication module Provides various industrial isolated interfaces: CAN/RS485/RS232/ADC/GPIO/RTC Onboard multi video/audio ports like HDMI/DSI/CSI Supports 2.4GHz WiFi wireless connection The Waveshare Industrial IoT 4G/PoE Base Board for Raspberry Pi CM3/CM3+ is an industrial-grade IoT baseboard designed for Raspberry Pi Compute Module 3 / 3+ (not included). It features communication functions including global 4G/3G/2G cellular, PoE Ethernet, and WiFi wireless. There are also various industrial isolated interfaces such as CAN, RS485, RS232, ADC, and GPIO, which make it an ideal choice for sorts of industrial IoT applications. PoE Ethernet, 4G Cellular, WiFi Connectivity: PoE Power Over Ethernet Features, 802.3af-Compliant. Global 4G/3G/2G Cell Communication, Up To 150 Mbps Data Rate. Provides 2.4 GHz WiFi Wireless Connection. View more What's Included 1 x Compute Module PoE 4G Board 1 x Aluminum alloy heatsink 2 x Antenna 2 x Thermal tape 1 x Screwdriver 1 x 12V/2A power adapter Dimensions Size 167.6 x 114 mm (L x W) Specifications Power supply: DC 7~36 V wide voltage range input Network Ethernet: 10/100M auto-negotiation Ethernet port, with PoE, enabled, RJ45 connector Cellular: supports global 4G/3G/2G communication (via onboard SIM slot) WiFi: supports 802.11b/g/n, 2.4 GHz Video/Audio Camera: 2x CSI ports, can be used simultaneously HDMI: HDMI HD port Display: DSI port, for connecting Raspberry Pi DSI display Audio: 3.5mm audio jack, stereo output Speaker: 4PIN speaker connector, supports 8Ω 5W speaker Common Used Ports 2 x USB2.0: USB type-A connector 1 x USB SLAVE: for burning system image into CM3 / CM3+ 1 x USB TO UART: connects to Raspberry Pi serial port by default, configurable by jumper 1 x RTC: real-time clock 1 x Micro SD card slot: for Micro SD card with the pre-burnt system (CM3 Lite / CM3+ Lite only) 1 x SIM slot: supports standard 4G/3G/2G cellular SIM card Weight: 0.413 kg
