Waveshare Mini Base Board (C) for Raspberry Pi Compute Module 4

$29.77
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

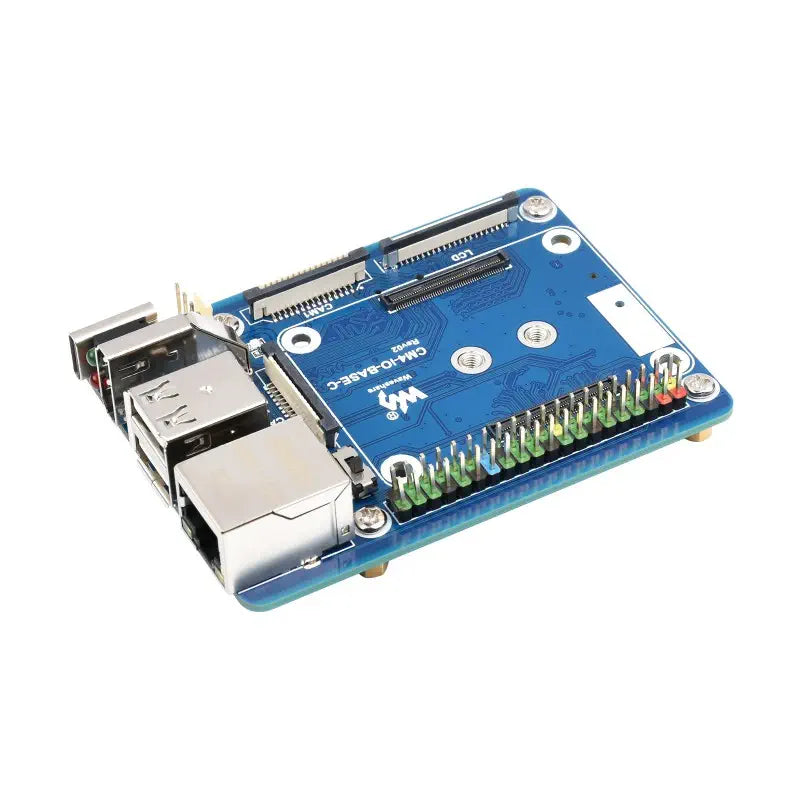

Description Waveshare Mini Base Board (C) for Raspberry Pi Compute Module 4 Versatile CM4 socket for all Compute Module 4 variants High-speed Gigabit Ethernet RJ45 and M.2 M KEY connectors Dual MIPI CSI-2 camera ports and 4K 30fps HDMI output Real-time clock with wake-up capability for Compute Module 4 The Waveshare Mini Base Board (C) for Raspberry Pi Compute Module 4 is a sophisticated mini-computer baseboard designed to accommodate all variants of the Compute Module 4. This advanced version features a CM4 socket, a Gigabit Ethernet RJ45 connector, an M.2 M KEY connector for communication modules or NVME Solid State Drives, a Raspberry Pi 40PIN GPIO header, two USB 2.0 Type-A ports, an LCD port with a 40-pin 0.5mm FPC connector, and two MIPI CSI-2 camera ports with 15-pin 1.0mm FPC connectors. Additionally, the Mini Base Board (C) is equipped with an HDMI port that supports 4K 30fps output, a real-time clock with a battery socket, and the capability to wake the Compute Module 4. For the Compute Module 4 Lite (without eMMC) variants, a TF card socket is also provided. The board includes a fan header that allows for speed adjustment and operates with a power input of 5V. With its versatile features and compatibility, the Mini Base Board (C) is an excellent choice for those seeking a reliable and efficient solution for their Raspberry Pi Compute Module 4 projects. View more What's Included 1x CM4-IO-BASE-C 1x Solid State Drives Mounting Screw Dimensions 85 x 56 mm Links Website Waveshare Mini Base Board (C) for Raspberry Pi Compute Module 4 - Wiki Specifications CM4 socket suitable for all variants of Compute Module 4 Networking Gigabit Ethernet RJ45 connector Connector M.2 M KEY, supports communication modules or NVME Solid State Drives Raspberry Pi 40PIN GPIO header USB 2.0 Type A x2 Display LCD port (40pin 0.5 mm FPC connector) Camera MIPI CSI-2 camera port x2 (15pin 1 mm FPC connector) Video HDMI port supports 4K 30fps output RTC Real-time clock with a battery socket and ability to wake Compute Module 4 Storage TF card socket for Compute Module 4 Lite (without eMMC) variants Fan header allows speed adjustment, 5 V Weight: 51 g
