Waveshare R800C GSM/GPRS HAT for Raspberry Pi
www.robotshop.com

Waveshare R800C GSM/GPRS HAT for Raspberry Pi

$23.90
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

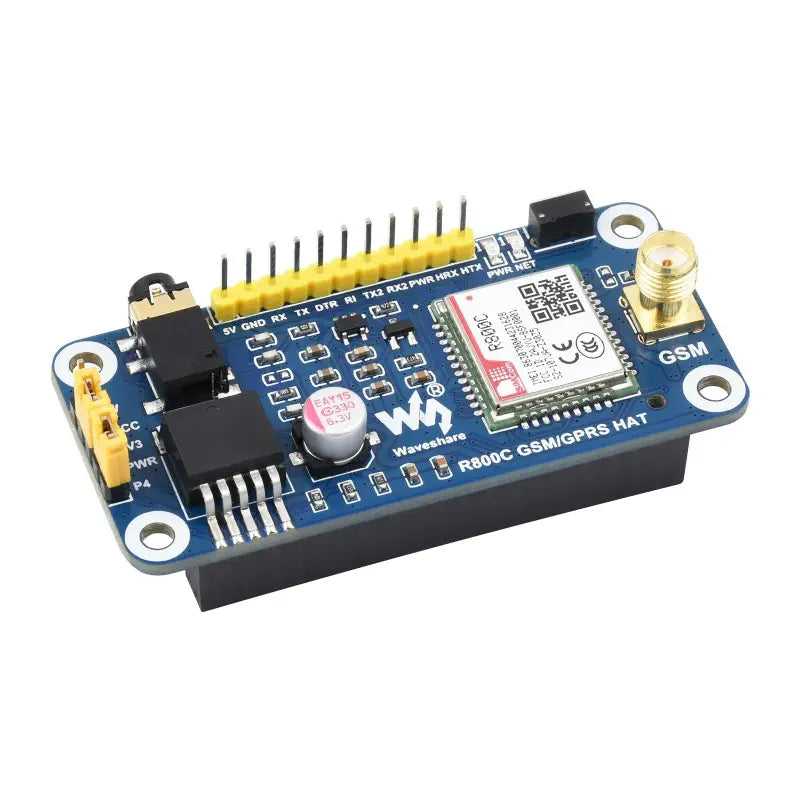

Description Waveshare R800C GSM/GPRS HAT for Raspberry Pi Multi-communication functionalities: GSM, GPRS, and phone calls Fast GPRS speed of up to 85.6kbps for wireless internet Standard 40-pin GPIO extension header and UART interface Supports various protocols, baud rates, and SIM application toolkit Wide operating temperature range of -40 to 85 °C The Waveshare R800C GSM/GPRS HAT for Raspberry Pi offers multi-communication functionalities, including GSM, GPRS, and phone calls, making it suitable for regions with 2G network coverage. With a maximum GPRS speed of 85.6kbps, this low-power HAT enables the Raspberry Pi to make phone calls, send messages, and connect to wireless internet. It features a standard 40-pin GPIO extension header, UART interface, voltage translator, LED indicators, and a SIM card slot, supporting various protocols and baud rates. The HAT is controlled via AT commands and is compatible with the GSM 11.14 Release 99 SIM application toolkit. View more What's Included 1x R800C GSM/GPRS HAT 1x GSM Antenna 1x RPi Screw Pack Dimensions 65 x 30.5 x mm (L x W) Links Website Waveshare R800C GSM/GPRS HAT for Raspberry Pi - Wiki Specifications GSM: 850 / 900 / 1800 / 1900 MHz, Quad-band auto search, Compliant with GSM phase 2/2+ standards Emitting power: Class 4 (2W at 900 MHz), Class 1 (1W at 1800 MHz) GPRS connectivity: GPRS multi-slot class 12/10 (default), GPRS multi-slot class 112 (configurable) GPRS data feature: UL/DL speed: ≤85.6kbps, Supports Packet Broadcast Control Channel (PBCCH), Coding schemes: CS-1, CS-2, CS-3, CS-4 Supports PAP (Password Authentication Protocol) for PPP connection, Supports Unstructured Supplementary Service Data (USSD) SMS: Supports MT, MO, CB, Text, PDU, SMS storage: SIM card Audio: Voice encode/decode mode: Half Rate, Full Rate, Enhanced Full Rate, Adaptive Multi-Rate, Support echo cancellation, Support noise reduction Power supply: 5V, Logic level: 5 V / 3.3 V (default) Operating temperature: -40 - 85°C, Storage temperature: -45 - 90 °C Weight: 31 g
