Waveshare Raspberry Pi CM4 to CM3 Adapter, Solution for RPi CM3/CM3+
www.robotshop.com

Waveshare Raspberry Pi CM4 to CM3 Adapter, Solution for RPi CM3/CM3+

$19.62
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

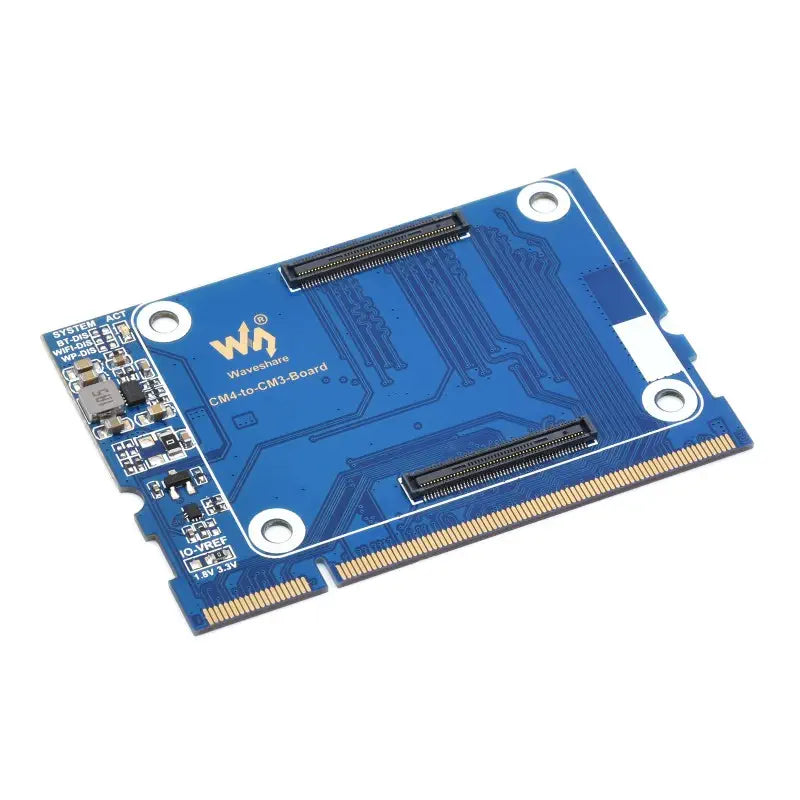

Description Raspberry Pi CM4 to CM3 Adapter, Solution for RPi CM3/CM3+ by Waveshare Designed for Raspberry Pi CM4 (Not Included) Onboard buck-boost DC chip Easily connected to the original CM3 ecosystem baseboard Supports 3.3V/5V power input Power Input: 5 V The Waveshare Raspberry Pi CM4 to CM3 Adapter, Solution for RPi CM3/CM3+ is an alternative solution for Raspberry Pi Module 3. Onboard standard CM4 connector, support access to CM4 Lite or eMMc series boards with Quad Core Cortex A72 64-bit processor, more powerful performance. View more What's Included 1x Raspberry Pi CM4 To CM3 Adapter, Solution for Raspberry Pi CM3 / CM3+ Dimensions Size 67.60 x 46 mm (L x W) Links Website Waveshare Raspberry Pi CM4 to CM3 Adapter, Solution for RPi CM3 / CM3+ - Wiki Specifications HDMI: Yes 2-CH MIPI CSI-2 Interface: Yes 2-CH MIPI DSI-2 Interface: Yes MICRO SD Interface: Yes USB 2.0: Yes Power Input: 5 V or 1.8 V ~ 5.5 V GPIO: 28 Weight: 8 g
