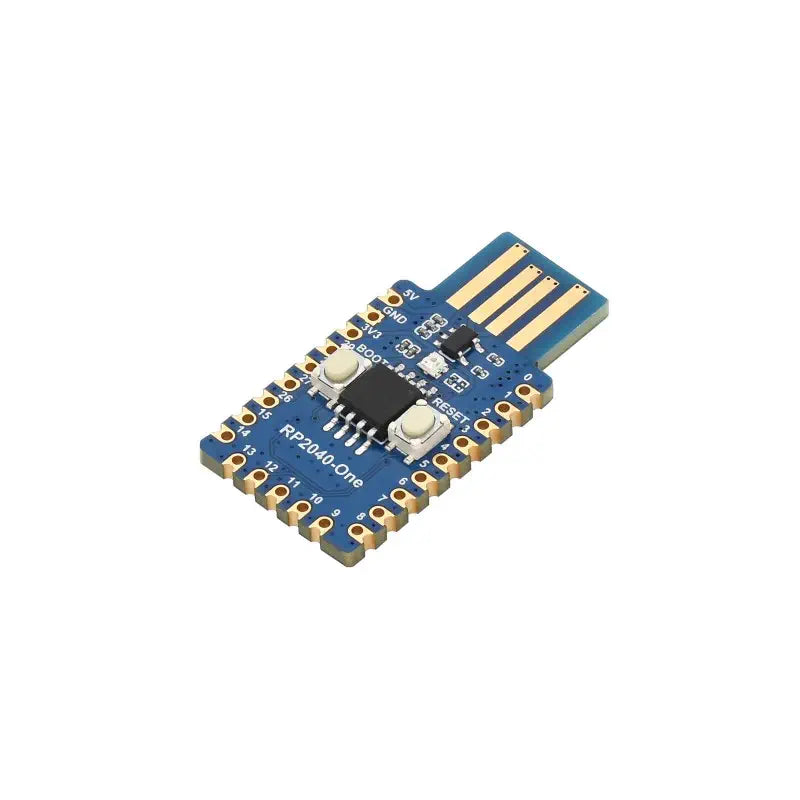

Waveshare RP2040-One, 4MB Flash MCU Board Based on Raspberry Pi RP2040

Description Waveshare RP2040-One, 4MB Flash MCU Board Based on Raspberry Pi RP2040 Offers a dual-core arm cortex M0+ processor Low-power sleep and dormant modes Built-in temperature sensor Onboard USB-A Plug Drag-and-drop programming using mass storage over USB Suitable for SMD applications The Waveshare RP2040-One, 4MB Flash MCU Board Based on Raspberry Pi RP2040 is a mini RP2040 development board. The onboard PCB USB-A connector makes it plug-and-play instantly. Mini body, 29 x multi-function GPIO pins (20 x via edge pinout, others via solder points), and the edge of the PCB adopt the castellated design, which can be easily and quickly integrated into your project. View more What's Included 1x Waveshare RP2040-One, 4MB Flash MCU Board Based on Raspberry Pi RP2040 Dimensions Size 25.50 x 18 mm (L x W) Links PDF File Waveshare RP2040-One, 4MB Flash MCU Board Based on Raspberry Pi RP2040 - Schematics Website Waveshare RP2040-One, 4MB Flash MCU Board Based on Raspberry Pi RP2040 - Wiki Specifications Processor: Dual-core Arm Cortex M0+ SRAM: 246 KB Flash memory: 4 MB USB1.1: Yes Low-power sleep and dormant modes: Yes Multi-function GPIO pins: 29 SPI: 2 UART: 2 12-bit ADC: 4 Controllable PWM channels: 16 Temperature sensor: Included Programmable I/O (PIO): 8 Weight: 3 g
