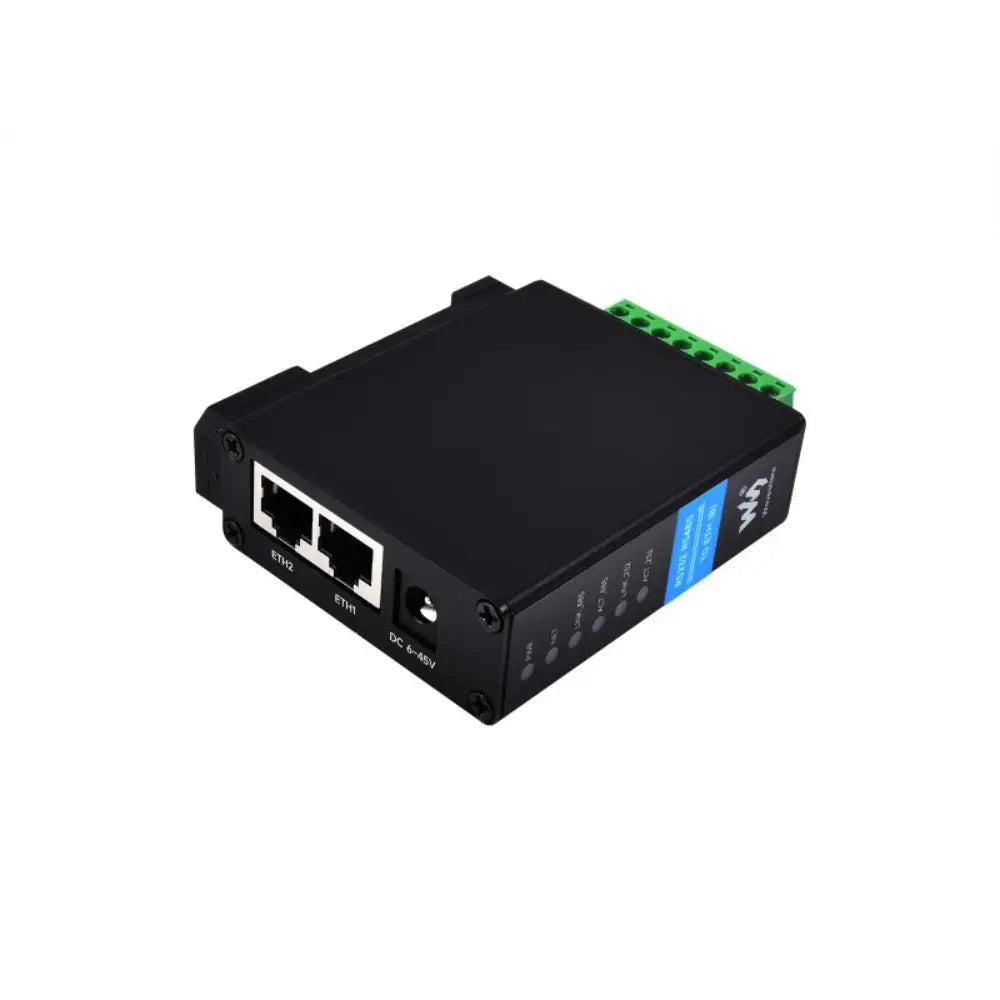

Waveshare RS232 RS485 to RJ45 Ethernet Serial Server, Dual Channel Independent Ethernet Ports

Description Waveshare RS232 RS485 to RJ45 Ethernet Serial Server, Dual Channel Independent Ethernet Ports Enable seamless data transmission in complex environments Feature dual independent RS232 and RS485 channels Support TCP, UDP, and MQTT communication modes Include power and signal isolation for secure operation Operate efficiently in extreme temperatures and humidity The Waveshare RS232 RS485 to RJ45 Ethernet Serial Server, Dual Channel Independent Ethernet Ports is an industrial-grade device designed for seamless data transmission and integration in complex environments. It features dual independent serial channels, RS232 and RS485, which can operate simultaneously without interference, connected through a single Ethernet cable. This device serves multiple functions, including acting as a serial server, Modbus gateway, and MQTT gateway, facilitating data acquisition and IoT gateway applications. Housed in a durable rail-mount metal case, the server supports bi-directional transparent data transmission between RS232 and RS485 to Ethernet. It includes two Ethernet ports, one of which can function as a network switch or for cascading, with optional PoE support. The device is equipped with power and signal isolation, ensuring stable and secure operations. It is compliant with IEEE 802.3af standards and features a 10/100M auto-negotiation RJ45 connector with 2 KV surge protection. The server supports various communication modes, including TCP server, TCP client, and UDP multicast, and operates efficiently in extreme temperatures and humidity levels. It also offers Modbus networking upgrades, MQTT/JSON to Modbus conversion, and multiple configuration methods. The aluminum alloy enclosure provides robustness and a refined finish, making it suitable for industrial applications such as safety and security IoT and intelligent instrument monitoring. View more What's Included 1x Waveshare RS232 RS485 to RJ45 Ethernet Serial Server, Dual Channel Independent Ethernet Ports Dimensions 78.0 x 72.5 x 24.2 mm Specifications Dual serial ports with a common network port and electrical isolation Dual serial ports with a PoE network port and electrical isolation Functions as a serial server, Modbus Gateway, and MQTT Gateway Bi-directional transparent data transmission between RS232 and RS485 to Ethernet Includes 1 RS232 port, 1 RS485 port, and 2 Ethernet ports Features a DC 5 power port, 6 ~ 45V DC screw terminal, or PoE port Provides power isolation and signal isolation Ethernet RJ45 with PoE support, compliant with IEEE 802.3af 10/100M auto-negotiation RJ45 connector with 2 KV surge protection Isolated RS232 and RS485 channels can receive and transmit independently Baud rate: 300 ~ 115200 bps Parity bit options: none, odd, even, mark, space Data bit range: 5 ~ 9 bits Supports protocols: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS Configuration via host, web browser, and device management functions library Communication methods: TCP/IP direct communication, VCOM Operating modes: TCP server, TCP client (coexisting with TCP server), UDP multicast Operating temperature: -40°C ~ 85°C Humidity range: 5% ~ 95% relative humidity Supports PoE Ethernet port power supply, suitable for IEEE 802.3af PoE standard Supports screw terminal and DC power port for power supply, DC 6~45V Supports Ethernet port cascade Rail-mount support Modbus Gateway support Multiple communication modes MQTT/JSON to Modbus Multi-host roll-polling support User-defined heartbeat/registration packet NTP protocol support Multiple configuration methods Multiple protection features for safety and stability Aluminium alloy enclosure
