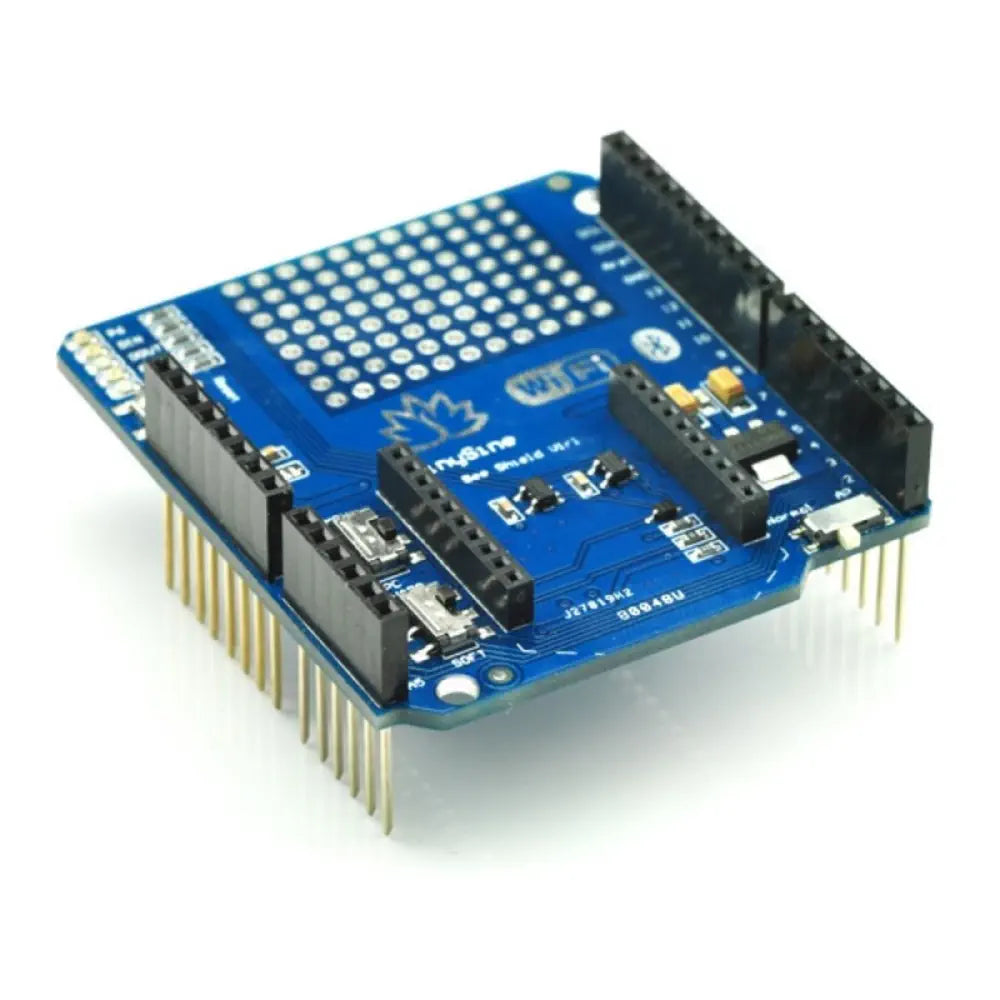

XBee Shield V2 For Arduino

Description Features a wireless extension port Lets you configure XBee/WiFiBee/BluetoothBee modules Mounts directly onto your Arduino Supports WiFiBee AP/ADHOC mode 3.3V power regulation and level shifting on-board This XBee Shield V2 For Arduino simplifies the task of interfacing an XBee/WiFiBee/BluetoothBee with your Arduino. This board mates directly with an Arduino Board and equips it with wireless communication capabilities using the popular XBee/WiFiBee/BluetoothBee module. This unit works with all XBee modules including the Series 1 and Series 2 (and 2.5), standard and Pro version and also works with WiFiBee and BluetoothBee module. View more What's Included 1 x XBee Shield V2 For Arduino Links PDF File XBee Shield V2 For Arduino Schematic Specifications Mounts directly onto your Arduino DIN and DOUT pins of XBee can be connected to either the UART pins or digital pin on the Arduino (D2 and D3) You can use this shield to configure your XBee/WiFiBee/BluetoothBee Supports WiFiBee AP/ADHOC mode 3.3V power regulation and level shifting on-board 12x11 grid of 0.1" spaced prototyping holes Reset button brought out Power, DIN, DOUT, RSSI and DIO5 indicator LEDs
