Audison SR 5.600 SR Series 5 Channel D-Class Amplifier

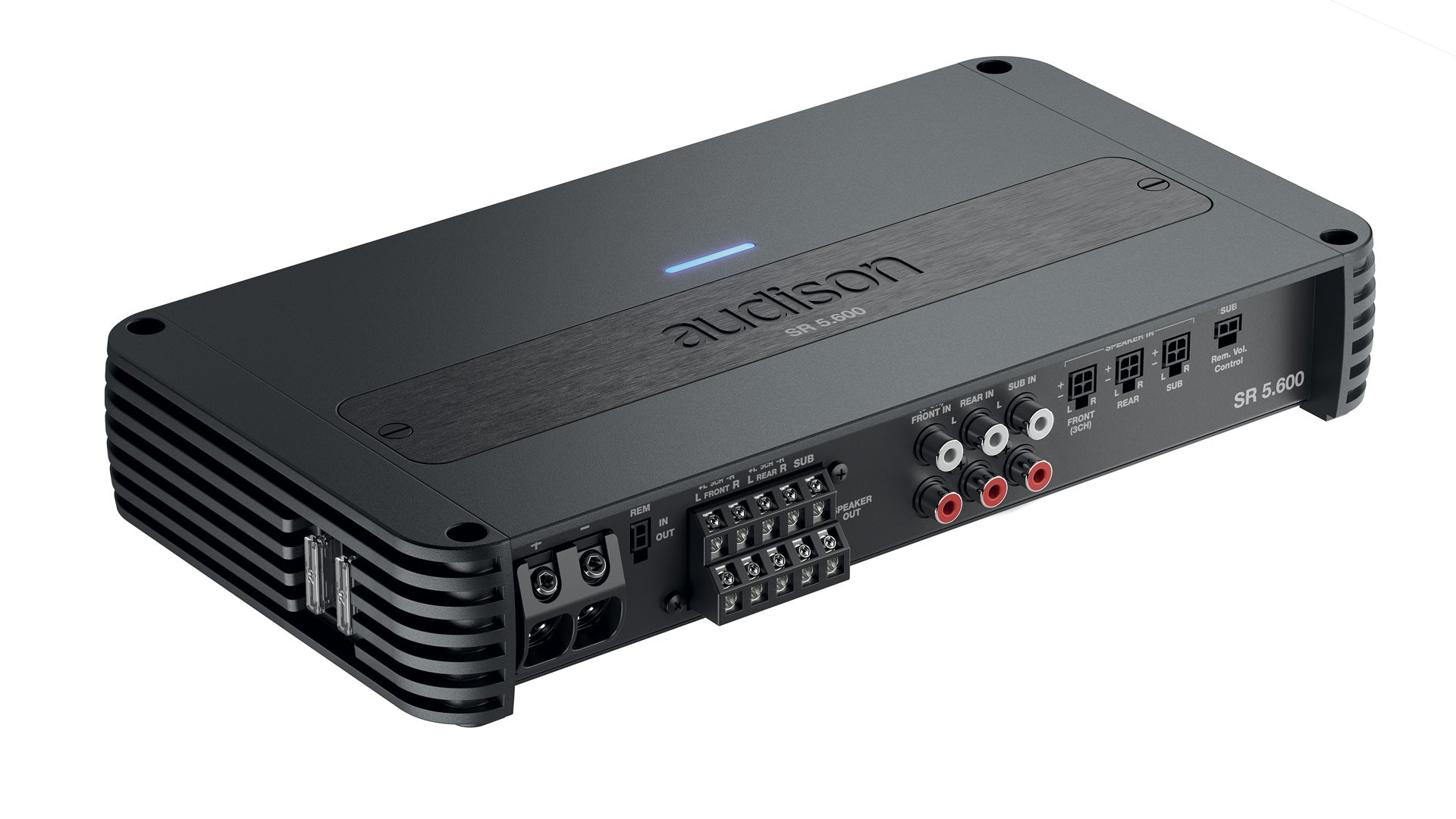

Audison SR 5.600 SR Series 5 Channel D-Class Amplifier  Audison SR 5.600 series 5-channel amplifier with crossover and great power packed into ultra-compact dimensions ( 75 W x 4 + 330 W x 1 4Ω)SR line, perfected by taking full advantage of the latest amplification devices. After numerous listening tests with professionals and enthusiasts, the Audison research and development team decided to adopt a new class D technology called ADT (Audison D-Class Technology) for this line of amplifiers, which has made it possible to considerably reduce their size, totally preserving the audio performance that characterizes every Audison design.As far as the electronic design is concerned, every aesthetic and functional detail of the Audison SR 5.600 has been taken care of, resulting in a compact amplifier made of extruded aluminum with rounded corners, which facilitates the installation of the product in narrow spaces. Thanks to the generous heat sinks on the two short sides of the amplifiers, there is no need for internal cooling fans, which often cause noise and dust accumulation.In keeping with tradition, the SR amplifiers confirm their vocation for versatility by including on all models a complete filter section, suitable for any kind of audio system configuration. The controls, protected by a satin-finished aluminum panel, are located on the top panel of the amplifier, so that they can be easily reached from above, even after the product has been installed. When the system includes an Audison bit processor, the filter section can be totally excluded.Optional remote control VCR-S1 offers the possibility to adjust the subwoofer level (-20 / + 6 dB) to your musical preference.Audison USSThanks to the integration of Audison USS (Universal Speakers Simulator) technology in the high level inputs, the SR amplifiers can also be conveniently connected to OEM sources equipped with the 'speaker load detection' function, which monitors the presence of a low impedance load enabling the audio outputs.Audison SR 5.600 allows multiple connectivityAll models have balanced high-level inputs for connecting to the OEM head unit speaker output and a low-level RCA for after-market speakers. When using the high-level input, the ART (Automatic Remote On/Off) function can be enabled to control the amplifiers' power-up with the head unit's power button. In addition, there is a remote IN / OUT socket to allow control of multiple amplifiers in cascade that turn on when needed.Through the PRE-OUT signal using the Speaker-IN socket it is possible to interface the amplifier with OEM sources that only have amplified outputs, allowing for system expansion. FEATURES: Elegant and functional design with rounded corners to minimize space, facilitating installation. Built-in USS (Universal Speakers Simulator). Full built-in crossover section. Optional VCR-S1 remote control offers the possibility to adjust the subwoofer  evel (-20 / + 6 dB) to your musical preference. Balanced high-level inputs for connecting to the OEM head unit speaker output Low-level RCA for after-market speakers. ART (Automatic Remote On/Off) function. Remote IN / OUT socket to allow control of multiple amplifiers. PRE-OUT allows for system expansion. Specs AMPLIFIER TECH DATAChannels 5Class D-ClassHi Level Input YesLow Level Input YesDigital Input NoPower supply voltage / fuse 11 ÷ 15 VDC / 2 x 25AOperating power supply voltage 6.5 ÷17 VDCIdling current 2.2 AIdling current when off 0.04 mAConsumption @ 14.4 VDC, 2Ω, Max Musical Power 44 ARemote OUT 6.5 ÷ 15 VDC (150 mA)Remote IN 6.5 ÷ 15 VDC (1 mA)ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) 1.5 ÷ 7 VDCAMPLIFIER STAGEDistortion - THD @ 100 Hz, 4Ω, 70% Rated Power 0.02 %Bandwidth A 10 Hz ÷ 35 kHz; 10Hz ÷ 500HzS/N ratio A 105 dBADamping factor A 100Input sensitivity Pre-In 0.2 ÷ 5 VRMSInput sensitivity Speaker-In 0.8 ÷ 20 VRMSTotal Power RMS 1010 WMinimum load impedance 5Ch: 2Ω3Ch: 4Ω + 4Ω + 2ΩOutput Power (RMS) @12.0 ÷ 14.4 VDC, 1% THD 5Ch 75 W x 4 + 330 W x 1 (4Ω)5Ch 115 W x 4 + 550 W x 1 (2Ω)3Ch 230 W x 2 (4Ω) + 310 W x 1 (4Ω)3Ch 230 W x 2 (4Ω) + 550 W x 1 (2Ω)Adjustable Crossover YesCEA SPECIFICATIONSOutput power @ 4Ω, 1% THD+N, 14.4 V Output power @ 4Ω, 1% THD+N, 14.4 V: 75 W x 4 Ch + 300 W x 1 ChSN ratio (ref. 1W output) SN ratio (ref. 1W output): 75 W: 84 dBA – 300 W: 75 dBAINPUTSInput Type Pre-In / Speaker-InFilters Outputs -Filter Pass A Front Ch Filters: Full Hi-pass: 50 ÷ 5k Hz @ 12 dB/Oct.Filter Pass B Rear Ch Filters: Full Hi-pass: 50 ÷ 5k Hz @ 12 dB/OctFilter Pass C Rear Ch Filters: Full Band-pass: 50 ÷ 500 Hz (Hi) @ 12 dB/Oct.Channel Mono Rear Ch Filters: Full 50 ÷ 5 kHz (Lo) @ 12 dB/Oct.Inputs/Outputs Sub CH Lo-pass: 50 ÷ 500 Hz @ 24 dB/OctInputs/Outputs Phase -Inputs/Outputs Bass Boost (0 ÷12) dBInputs/Outputs Subsonic 25 Hz @ 24 dB/OctRemote Sub Volume (-20 ÷ 6) dBOTHERWeight 2.42 kg DIMENSIONSDimension A 294 mmDimension B 264 mmDimension C 155 mmDimension D 135 mmDimension E 47.5 mm
