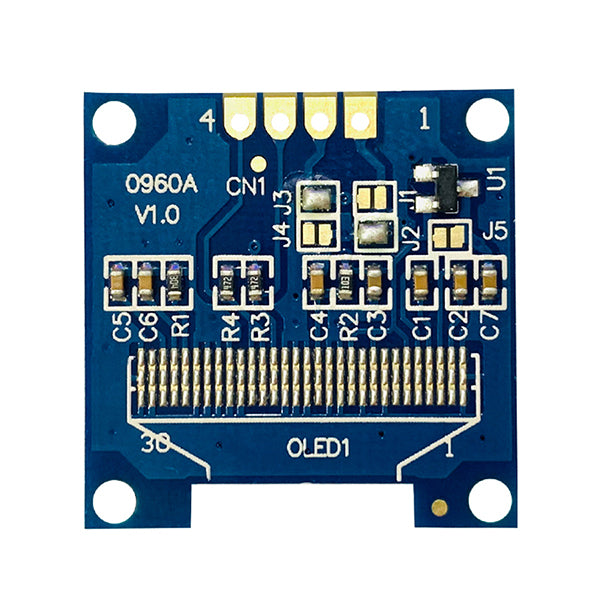

0.96" OLED Graphic Display 128x64 - I2C 4P
$3.58
{{option.name}}:
{{selected_options[option.position]}}
{{value_obj.value}}
Specifications Display Size:0.96" Resolution Ratio : 128x64 Display Mode: Passive Matrix Viewing Angles: IPS Controller IC :SSD1306/SSD1315 Interface : I2C Pin No: 4P Pixel Size:0.15×0.15 mm Pixel Pitch: 0.17×0.17 mm Power Supply :3.3-5 V Display Color : Monochrome (White /Blue/Yellow & Blue) Module Dimension :27.5x27.8x3.5(H) mm Viewing Area : 23.7(W) x 13.2(H) mm Operation Temperature : -30℃~70℃ Storage Temperature : -40℃~85℃ Dimension Pin Definition
