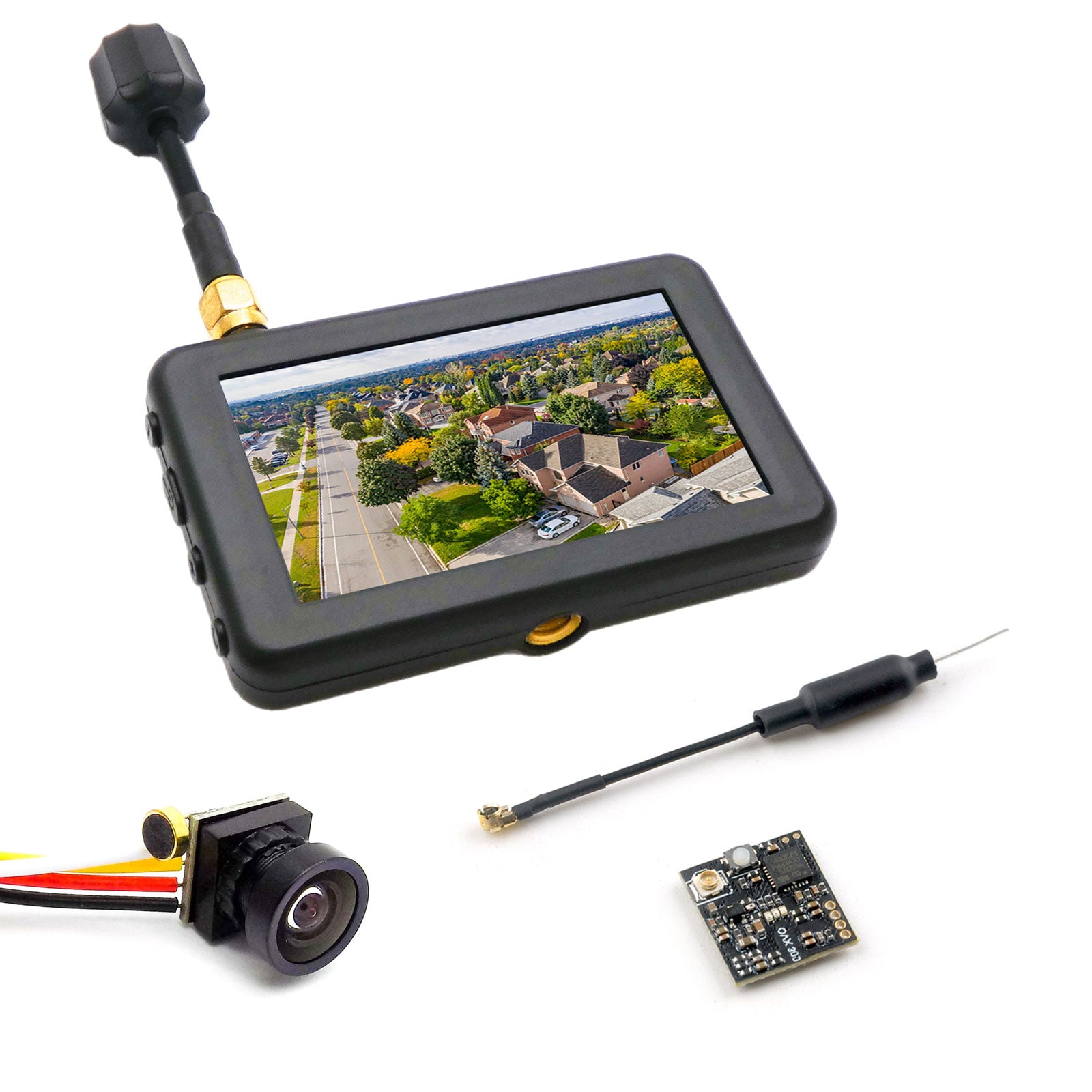

5.8GHz Nano FPV Kit System Monitor Micro Camera 300mW Video Transmitter
The included FPV monitor boasts a bright, sunlight-viewable display, perfect for clear viewing outdoors. Built-in features like a convenient small size, internal rechargeable battery for on-the-go use, and an auto-scan function make setting up a breeze. 5.8GHz FPV Monitor Specifications: Screen : 3.0 Inch IPS LCD Resolution: 480*320 Display Ratio: 16:9 View Angle: 360 Degrees without dead angle Brightness: 500cd/m² with high brightness backlight LED Video delay: less than 20ms Antenna: RP-SMA male Language: English Power adapter: DC5V/1A (USB interface) Battery: 3.7V/800mAh Power Consumption: 360~400mA at 3.7~4.2V HappyModel OVX300 Video Transmitter Specifications: Frequency: 5.8G 40CH Transmitting Power: 0/RCE/25mw/100mw/300mw Power supply: DC 5V Current (5v): <650ma (300mw) Weight: 0.9gram without antenna Standard size: 14*15*3mm 600TVL Micro Camera Specifications: Resolution: 600TVL Camera Dimensions: 12.5mm * 12.5mm * 17mm Illumination: 0.5LUX Format: NTSC Power supply range: 3.7-5V ONLY Audio Lens: Wide-angle 1.8mm (170 degree) Image sensor:1/4 CMOS image sensor Sensitive area: 3.5964mm x 2.7084mm 648 pixels (horizontal) x 488 (vertical) 648 (horizontal) x 488 (vertical) Scanning Frequency Horizontal: 15.625KHz Vertical: 50Hz level: 15.7343KHz Vertical: 60Hz Electronic Shutter 1 / 50-1 / 80000 (sec) 1 / 60-1 / 80000 (sec) SNR 48dB (AGC OFF) Minimum illumination : 0.1 Lux / F1.2 Composite video signal :1.0Vp-p 75 ohm Standard Lens :1.8 mm Specifications PCB: 20mm*20mm Power: DC5V ± 10% 70mA ± 10% Operating temperature :-10 Degrees C ~ 60 Degrees C RH95% Max Package Contents: 1x 5.8GHz FPV Monitor w/ Internal Battery 1x 5.8GHz Adjustable 300mW Video Transmitter 1x 600TVL Micro Camera 1x Transmitting Antenna 1x Receiving Antenna
