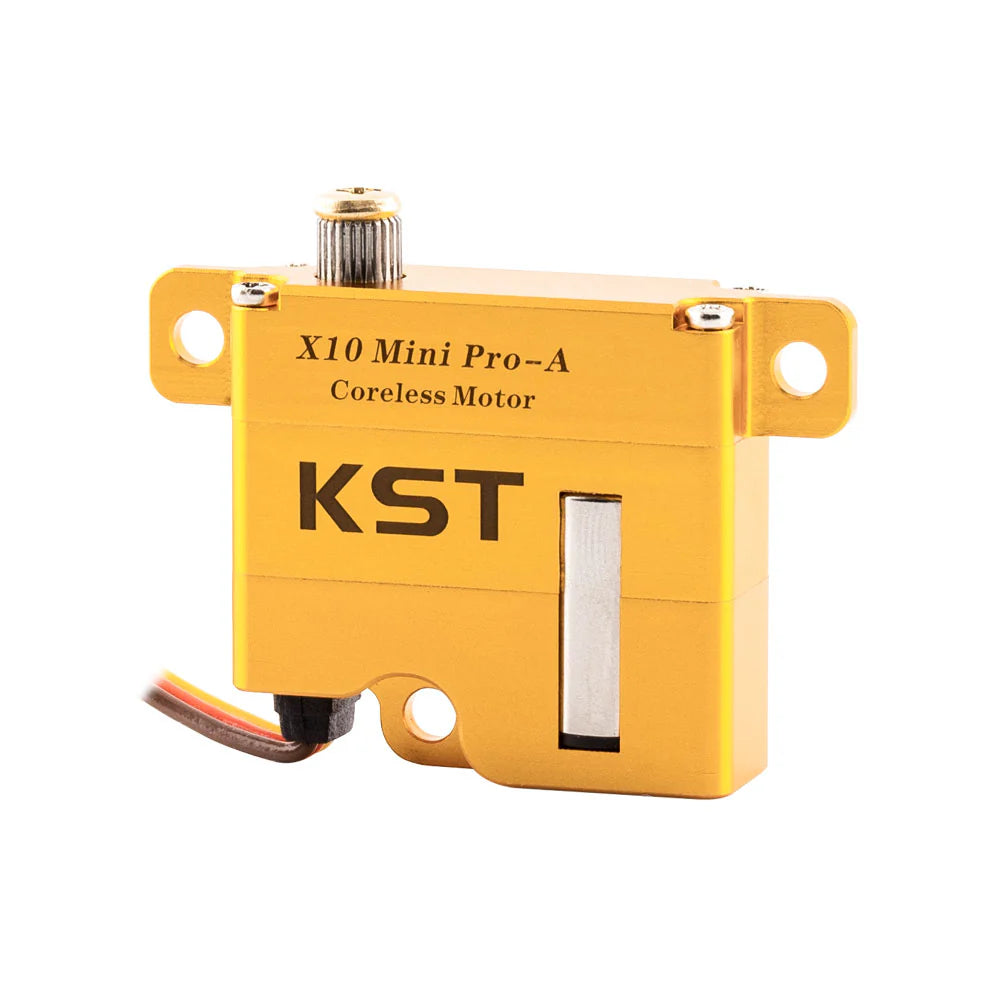

KST Servo - X10 Mini Pro-A Wing Servo - 8.0kg / 0.08 Sec (4.8-8.4V DC)

KST Servo - X10 Mini Pro-A Wing Servo - 8.0kg / 0.08 Sec (4.8-8.4V DC) The new X10 Mini Pro servo is a brilliant mini servo for competition gliders, such as F5J and F5B and large scale gliders.Compared to the regular X10 Mini servo, it has a higher torque, faster speed with a larger travel angle. X10 Mini Pro servo has an outstanding 8.0Kgf.cm torque and an amazing 0.08sec speed.Support is available for customizing the servos for a unique flight experience via the programming feature. Moreover, this servo is equipped with a CNC aluminum case and hardened steel gear to improve durability and precision. It is definitely a superb micro servo for a fantastic flight. Features Programmable Supports Soft Start Hardened Steel Gears Anodized CNC Aluminum Case Ultra High Torque & Excellent Speed Smaller Size and Larger Travel Angle Ideal for Competition Gliders and Large Scale Gliders Specification Item: X10 Mini Pro Servo Rated Voltage: DC7.4V Voltage Range: DC4.8V-8.4V Torque: 4.5Kgf.cm@4.8V, 6.0Kgf.cm@6.0V, 7.2Kgf.cm@7.4V, 8.0Kgf.cm@8.4V Speed: 0.13sec/60°@4.8V, 0.11sec/60°@6.0V, 0.09sec/60°@7.4V, 0.08sec/60°@8.4V Working Frequency: 1520μs/333Hz Default Travel Angle: ±60°=120° Total Temperature Range: -10℃.......+65℃ Soft Start: Programmable Programmable: Yes Case Material: Aluminum Alloy Motor Type: Coreless DC Motor Gear Set Material: Hardened Steel Position Sensor: Potentiometer Case Dimensions: 30mm*10mm* 28mm±0.2mm Weight: 20g±10% Package Including 1 * X10 Mini Pro Servo 1 * Servo Horn Screw 2 * Plastic Servo Horn 4 * Mounting Screw Download X10 Mini Pro Technical Specification
