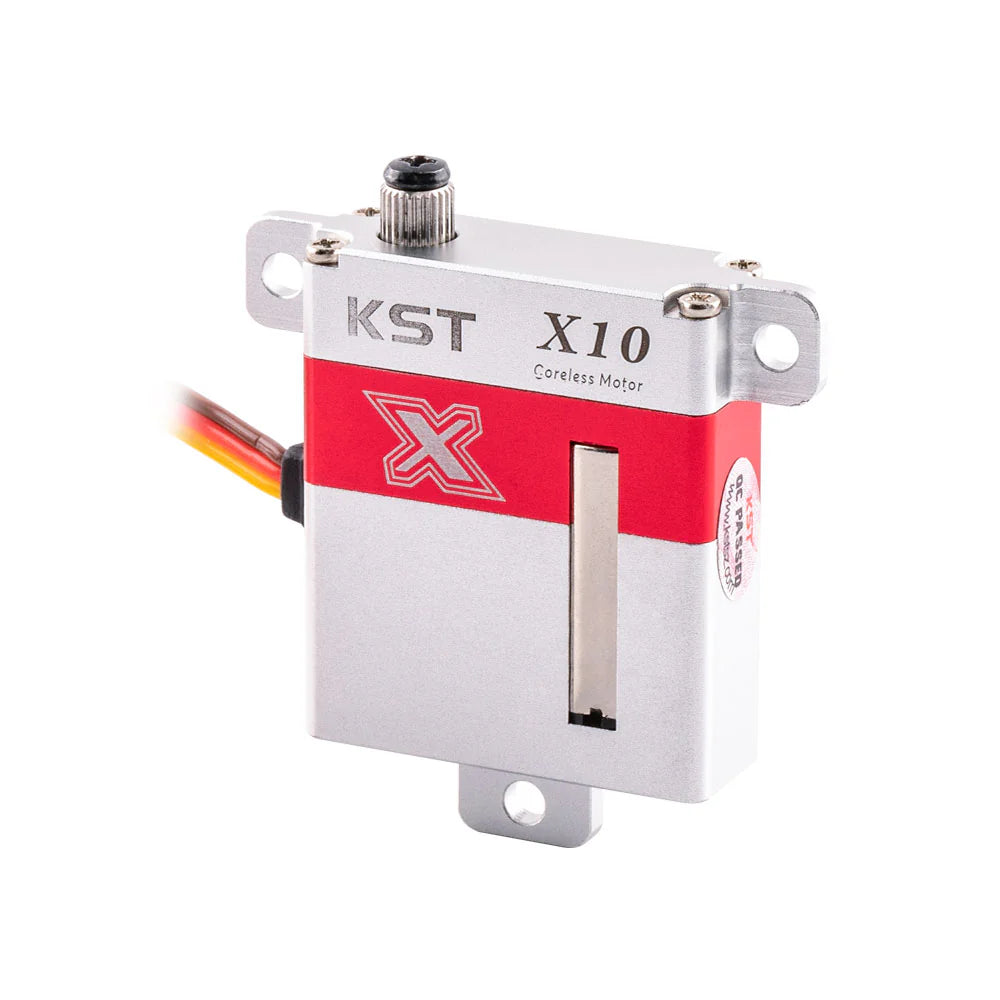

KST Servo - X10 V8.0 Wing Servo - 10.8kg / 0.10 Sec (4.8-8.4V DC)

KST Servo - X10 V8.0 Wing Servo - 10.8kg / 0.10 Sec (4.8-8.4V DC) The newest wing servo from KST offers the best performance and definitely the best value servo you can put in your latest aircraft. This HV servo has incredible torque and extremely smooth operations rivaling and beating servos twice it's price. Perfect for applications like F3J, F3B, F3F wing and flap installations. You need to see it and feel how smooth it goes... it's just awesome. Features Compact and Lightweight Design Extreme Torque and Excellent Speed Excellent Heat Dissipation Programmable CNC Aluminum Case Specification Item: X10 V8.0 Servo Rated Voltage: DC7.4V Voltage Range: DC4.8V-8.4V Torque: 6.2Kgf.cm@4.8V, 7.5Kgf.cm@6.0V, 9.5Kgf.cm@7.4V, 10.8Kgf.cm@8.4V Speed: 0.16sec/60° @4.8V, 0.14sec/60° @6.0V, 0.12sec/60°@7.4V, 0.10sec/60°@8.4V Working Frequency: 1520µs/333Hz Travel Angle: ±50°=100° Total Temperature Range: -10℃……+65℃ Soft Start: Programmable Programmable: Yes Case Material: Aluminum Alloy Lead length: 15cm Bearing: 2BB Gear Set Material: Hardened Steel Motor Type: Coreless DC Motor Position Sensor: Potentiometer Case Dimensions: 30*10*35.5mm ±0.2mm Weight: 28g±10% Package Including 1 * X10 V8.0 Servo 5 * Plastic Servo Horn 1 * Servo Horn Screw 3 * Mounting Screw Download X10 V8.0 Servo Technical Specification
