RAM-202-153-B-202U RAM Drill-Down Double Ball Mount for Humminbird Helix 5 - Short

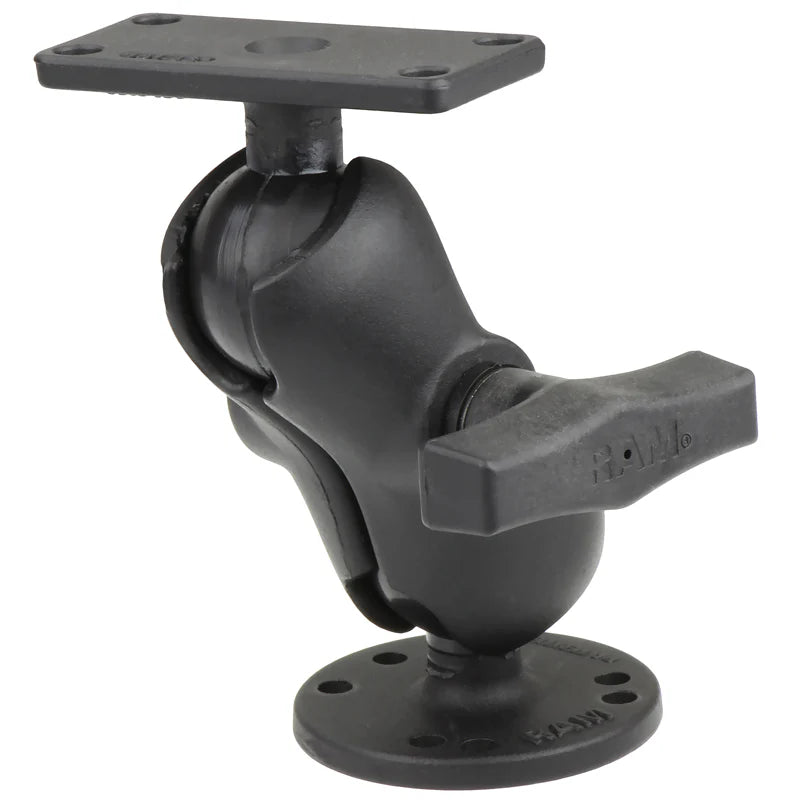

RAM-202-153-B-202U RAM Drill-Down Double Ball Mount for Humminbird Helix 5 - Short MUST BE UNOPENED AND UNUSED TO QUALIFY FOR RETURN. MOUNTING SCREWS ARE NOT INCLUDED. SEE PLATE SPECS AND COMPARE WITH YOUR DEVICE BEFORE PURCHASING. The RAM-202-153-B-202U consists of a round 2.5" diameter round base (Universal AMPs Hole Pattern), short double socket arm and 1.5" x 3" rectangular base. The rectangular base contains four holes with a center to center pattern of 1" x 2.5". product dimensions: Overall Height: 5.225" socket to socket length: 2.5" hole pattern: Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree 1.812" DiameterRectangular Plate: 1" x 2.5" plate size: Top Plate: 1.5" x 3"Bottom Plate: 2.5" Diameter ball size: C Size (1.5") weight capacity: Standard Use: 4 lbsHeavy-Duty Use: 3 lbs materials: Marine-grade aluminum packaging type: Poly Bag Weight: 0.93 lb QUESTIONS AND ANSWERS: Q: What screws are used to attach the RAM Mount to the gimbal bracket? A: Typically the gimbal bracket included with your fishfinder will also come with mounting screws that should connect to the RAM® mounting plate. As these mounts are universal and are for many different applications, the necessary hardware needed for each application will vary. For marine applications, RAM® recommends stainless steel hardware to prevent corrosion.
