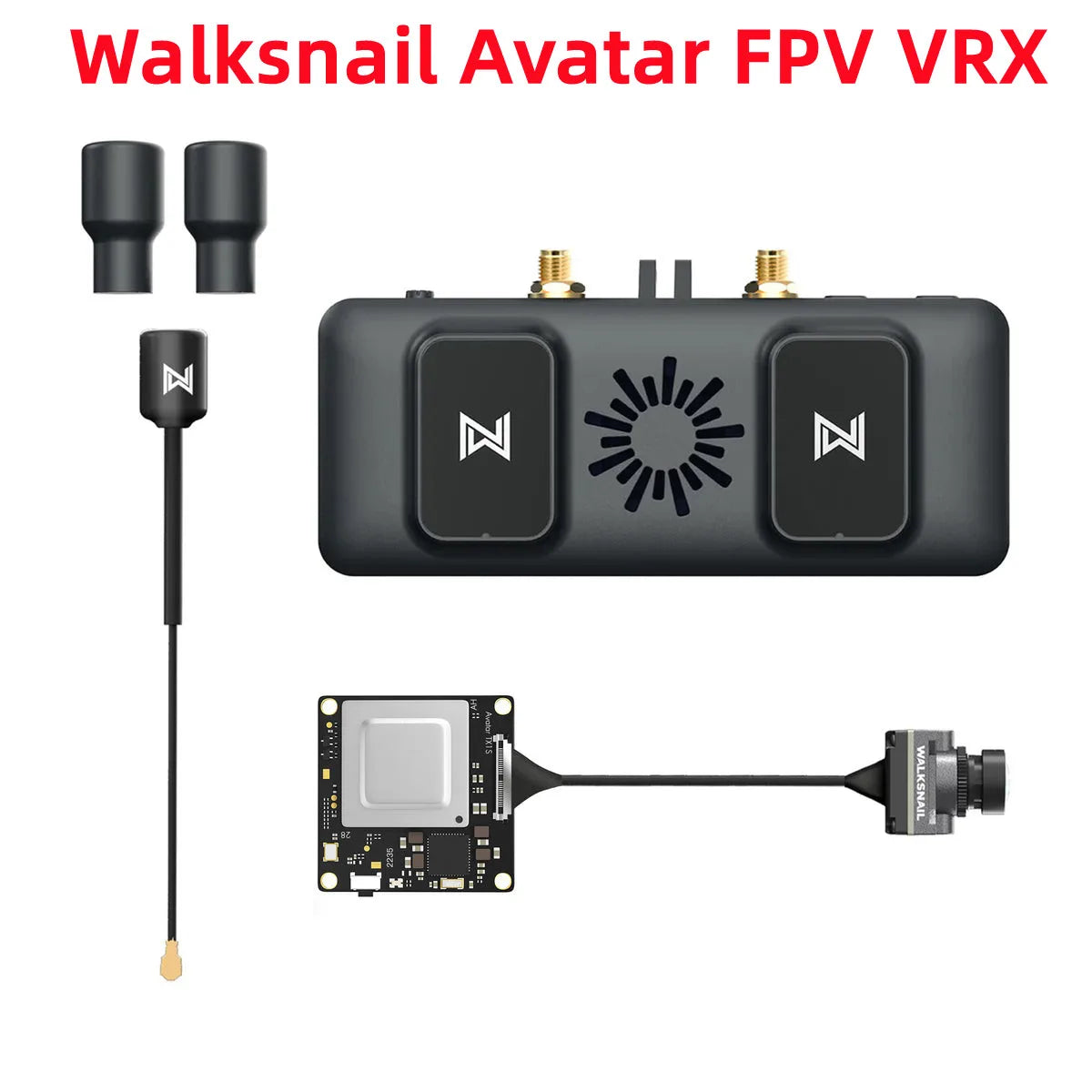

CADDX Walksnail Avatar FPV Video Transmission VRX with 1S / Nano / Pro Kit Camera Lens 4KM Distance HDMI 1080P/60FPS for FPV
SPECIFICATIONS Brand Name: CACHALOT Compatible Drone Brand: CADDXFPV Model Number: Ratel PRO Package: Yes CADDX Walksnail Avatar FPV VRX with 1S / Nano / Pro Kit Camera Lens 4KM Distance HDMI 1080P/60FPS for FPV RC Drone Spare Parts Description Specification Camera Model Avatar nano/Avatar camera Image Sensor 1/2.7"1nch Resolution 1080P/60fps,720P/120fps,720P/60fps Ratio 16/9 4/3 Lens 2.1mm FOV 170° Aperture F2.0 Shutter Rolling shutter Min.Illumination 0.001Lux Weight 3.5g/6g Dimensions 14*14*17mm/19*19*22mm Coaxial Cable 90mm/140mm VTX Model Avatar module Communication Frequency 5.725-5.850GHz Transmitter Power (EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;MIC:<25dBm 1/O Interface JST1.0*6(Power in)JST1.0*4(USB) Mounting Holes 25.5*25.5mm Dimensions 33*33*9.5mm Storage 8G Recording 1080p/720p Weight 16g Operating Temperature -20-40℃ Channels 8 Wide Power Input 6V-25.2V Supported FC System Betaflight OSD Canvas mode Latency Average delay 22ms Antenna 2(IPEX) Goggles Antenna Model Red bird Polarization LHCP Bandwidth 5.6GHz-6.0GHZ Average Gain 1.9dBi Radiation Efficiency ≥97% VSWR ≤1.3 Cross-Polar Rejection -15to-30dB Connector RP-SMA Dimension H24.8mm*R15.3mm Weight 4.2g Avatar HD VRX Model Avatar HD VRX CommunicationFrequency 5.725-5.850GHz TransmitterPower(EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;MIC:<25dBm I/OInterface HDMI,microSDcardslot,DC5.5*2.1mm HDMIOutput 1080p60fps,720p100fps,720p60fps PowerInput 7-21V(2S-5S) SDCard Support256G System AvatarHDsystem Q&A Q:Is VRX compatible with goggles from other products?A:Compatible With Analog Goggles,HDMI Out(Our VRX module supports HDMI OUT, If you goggles support HDMI IN it will work fine)Q:Do i need a set of goggles with a 1080p resolution or an 720p is enough?A:VRX supports 720P\1080PQ:Avatar HD Micro kit come with a 140mm cable between the VTX and camera?A: yesQ:does the Pre-sale unit fit 20x20 mount?A:Our vtx is 25*25Q:the difference between all 3 of the walksnail kits? What is the Avatar 1s vs avatar hd micro vs avatar HD nano?A:mini 1s kit350mw, Power Input: 3.1V-5V, VTX Weight 6.8gavatar HD micro/nano kit standard version1200mw, Power Input: 6V-25.2V, VTX Weight: 16gQ:Micro/Nano Camera difference?A:Weight:3.5g/6gDimensions:14*14*17mm/19*19*22mmCoaxial Cable:90mm/140mm Q:hdmi type?A:mini hdmi Lightweight design, ultra-thin experienceWalksnail VRX only 83g and comes with 114*55*22mm size, easy to carry. Walksnail VRX adopts a 4pcs antenna design, with 2pcs directional antennas with a maximum transmission distance of more than 4km 1080P/60FPSWalksnail VRX adopts industry-leading H.265 encoding technology,which can provide a minimum delay of 22ms and a maximum resolution of 1080p.The HD picture quality takes you to experience the fun of flying a drone. HDMI output ensure you to enjoy uncompressed audio and video signals from the Walksnail HD system Canvas ModeSupports betaflight full OSD display,supports betaflight, inav, kiss full osd displayyou can easily adjust the parameters you want by remote control.
