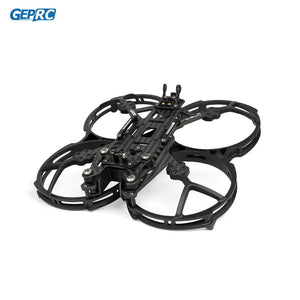

GEPRC GEP-CL35 V2 Frame Kits Suitable for CineLog35 V2 Drone Carbon Fiber Frame DIY RC FPV Quadcopter Drone Accessories

The GEPRC GEP-CL35 V2 Frame Kit is an advanced carbon fiber frame designed for enhancing the CineLog35 V2 drone's performance, with a focus on durability, stability, and innovative features. The GEP-CL35 V2 is an upgraded version of the CL35, meticulously developed by the GEPRC team. This frame supports the O3 VTX and features an advanced camera shock-absorbing gimbal to address IMU resonance issues and provide superior anti-shake performance. It incorporates a 7075 aluminum column for added structural strength and features a streamlined battery installation with a strap and integrated XT60E1-M plug. The propeller guard is designed with additional functionalities, including a storage card and USB port for easy data access. Specifications: ü  Model: GEP-CL35 V2 ü  Motor to Motor Distance: 142mm ü  Top Plate Thickness: 2.0mm ü  Bottom Plate Thickness: 1.5mm ü  Arm Plate Thickness: 3.5mm ü  Flight Controller Mounting Hole: 25.5mm x 25.5mm ü  VTX Mounting Hole: 20mm x 20mm / 25.5mm x 25.5mm ü  Motor Mounting Hole: 12mm x 12mm ü  Camera Installation Space: 20mm ü  Propeller Guard Internal Diameter: 95mm ü  Suitable Propeller Size: 3.5-inch ü  Weight: 133.7g Features: Ø  Innovative Prop Guard: The propeller guard includes a storage card slot and USB port for easy access to data. Ø  Advanced Camera Shock Absorption: The camera gimbal is designed to reduce lens IMU resonance, providing improved anti-shake performance. Ø  Secure Battery Installation: Utilizes a strap with 7075 aluminum parts for a solid and stable battery setup. Ø  Integrated Power Cable Design: The XT60E1-M plug and carbon plate are integrated for a user-friendly design. Ø  Enhanced Durability: Injection-molded prop guard with reinforced aluminum columns for increased toughness and impact resistance. Includes: Carbon Plates: ü  1 x Main Carbon Plate (3.0mm) ü  1 x Top Plate (2.0mm) ü  1 x Bottom Plate (1.5mm) Screw Kits: ü  Various screws, nuts, and bolts for assembly ü  2 x Battery strap fixed aluminum parts ü  2 x 7075 mesh aluminum columns (M211.54) ü  4 x 7075 mesh aluminum columns (M2253.3) 3D Printed Parts: ü  1 x Camera Mount (2 holes) ü  1 x Camera Mount (4 holes) ü  1 x Receiver Mount ü  1 x T-shaped Antenna Mount ü  1 x VTX Antenna Mount ü  1 x Capacitor Mount ü  1 x Power Plug Printed Part ü  1 x GP Camera Base Mount Injection Molded Parts: ü  1 x Propeller Guard ü  Vibration dampening rubbers for FC and camera ü  Shock-absorbing rubber rings Other Accessories: ü  1 x Power XT60E1-M Plug with Cable ü  4 x Motor Hubs (M7*15mm) ü  3 x 5.8G VTX Extension Cables (80mm) ü  7 x Heat Shrink Tubes ü  1 x Naked GP Camera Base Mount ü  4 x BEC Pads ü  2 x Battery Non-Slip Pads ü  2 x Receiver Antenna Sticks (100mm) ü  2 x Battery Straps (M20250 and M20220) ü  Various L-shaped Screwdrivers ü  1 x M5 Wrench ü  1 x Keychain ü  1 x Quick Start Guide ü  2 x GEPRC Stickers ü  1 x Service Card ü  1 x Packaging Box ü  1 x User Manual ü  1 x Promotion Card The GEPRC GEP-CL35 V2 Frame Kit is designed for enthusiasts seeking a durable, feature-rich frame that enhances the overall flight experience and supports advanced camera and flight systems.
