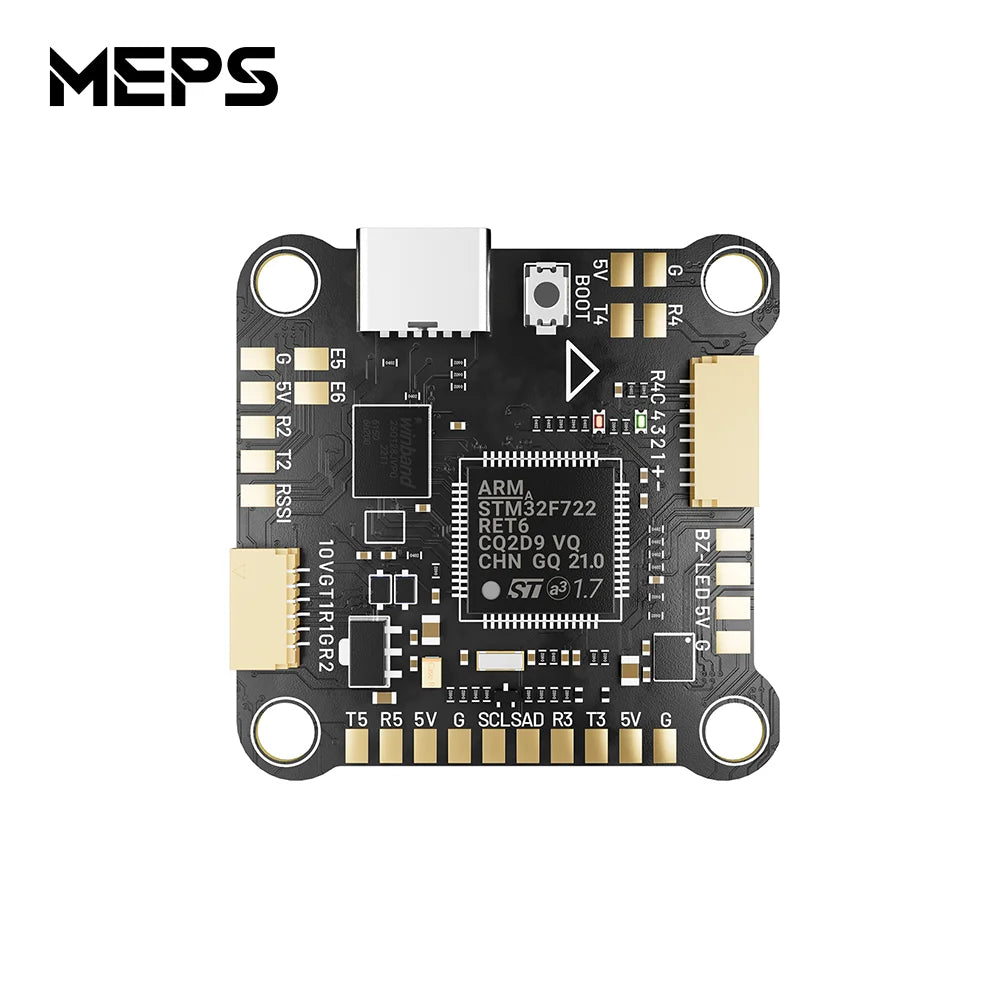

MEPS F7 HD Flight Controller 3-6S 30X30mm 5V/10V 2A BEC Outputs with DJI Air Unit for RC Racing Freestyle FPV Drones
SPECIFICATIONSBrand Name: MEPSIs Electric: No batteryOrigin: Mainland ChinaMaterial: Composite MaterialRecommend Age: 14+yFor Vehicle Type: AirplanesUse: Vehicles & Remote Control ToysCertification: CERemote Control Peripherals/Devices: ESCQuantity: 1 pcsModel Number: SZ F7 HDProcessor: STM32F722IMU(Gyro): BMI270Input Voltage: 3-6S LipoDimension: 37*37*7mmMounting Hole: 30.5*30.5mm/Dia 4mmWeight: 7.2gBEC: 5V 2A/10V 2AOSD: HDBlack Box: 16MB Features Plug-in-Play DJI HD Support: Without soldering for easy installation. built-in HD OSD, keeping track of flight status. Multi-Peripheral Friendly: With 5V/2A and 10V/2A BEC outputs for different peripherals such as GPS, LED strip, buzzer, etc. Lower Latency: Smoother operating, faster calculation, and sensitive response with STM32F7 MCU and BMI270 gyro sensor. Lower Heat Generation: VTX switch function that can turn off the VTX remotely to reduce heat generation and interference. Simple Tuning Experience: Compatible with Betaflight firmware and can be configured via Betaflight Configurator software. Specification Model: SZ F7 HD Processor: STM32F722 IMU(Gyro): BMI270 Input Voltage: 3-6S Lipo Dimension: 37*37*7mm Mounting Hole: 30.5*30.5mm/Dia 4mm Weight: 7.2g Package Included 1PC SZ F7 HD Flight Controller FAQ Q:What kind of gyroscope on this F7HD flight controller? A:The Gyro of this F7HD flight controller is Bosch BMI270. Q:What MCU is used in this F7HD flight controller? A:The F7HD flight controller uses STM32F722. Q:What firmware is supported by this F7HD flight controller? A:MEPS F7HD flight controller only supports the Betaflight firmware. Q:What is the target Of firmware? A:TMTR/TMOTORF7(STM32F7X22). Q:Can this F7HD controller connect with the DJI air unit? A:MEPS F7HD is a flight controller designed for DJI air unit.
