Shop Fox - 6" x 20" Variable-Speed Mill/Drill with DRO

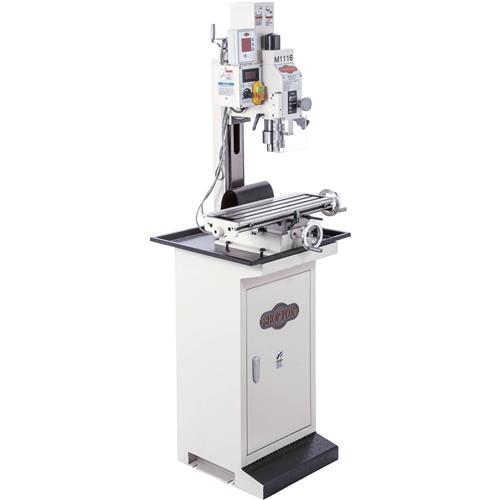

M1116 Shop Fox 6" x 20" Variable-Speed Mill/Drill with DRO - M1116 An appropriately powered mill for those new to machining or as a dedicated machine in a shop. The M1116 6" x 20" Variable-Speed Mill/Drill sports some of the same features found on much larger mill/drills. The magnetically mounted DRO measures X-axis (table), Y-axis (saddle), and Z-axis (column) travel in hundredths of a millimeter or thousandths of an inch. Selecting whether the machine operates in high or low is as easy as turning the spindle-speed range knob. The variable spindle speed dial controls the spindle speed between 50—1000 RPM in low range, and 100—2000 RPM in high range. The 5-3/4" x 19-3/4" table can be moved in two axes. Each axis is independently controlled by a handwheel. Both handwheels have graduated dials for precise movement in 0.002" increments. The 3/4 HP motor powers drilling operations up to 1/2" in steel and 5/8" in cast-iron. The optional D4780 Stand for the ultimate mill/drill package is available. Like all Shop Fox mills, the M1116 comes with a 2-year limited warranty. The M1116 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your mill. The Shop Fox Customer Service and Technical Support Teams are also U.S.-based. Parts for the mill may be available online and shipped from the parts warehouse in Springfield, MO.
