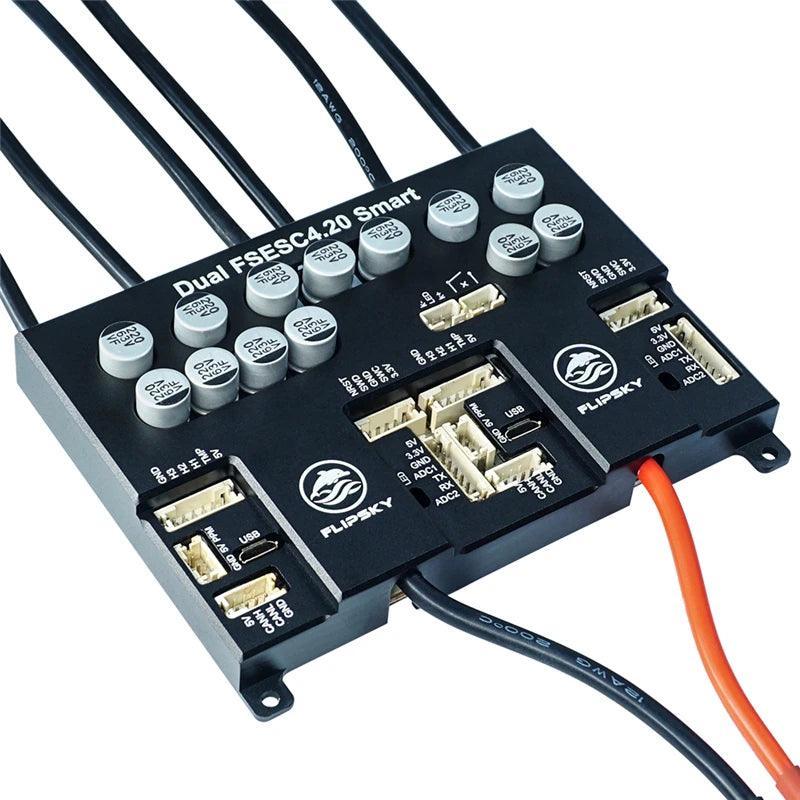

Flipsky Dual FSESC 4.20 Smart with Smart Anti Switch and Button and

you can purchase directly, if you need to consult product information, welcome to add my WHATSAPP +8618273657619you can purchase directly, if you need to consult product information, welcome to add my WHATSAPP +8618273657619 Flipsky Dual FSESC 4.20 Smart with Smart Anti Switch and Button and Aluminum Case for Electric Skateboard Specification   Hardware VESC 4.20 Firmware 5.2 (Keep upgrading if FW is updated) Current 50A continuous/single, 100A continuous/dual , burst 200A Voltage 8V-60V (Cells: 3-12S LiPo) Recommended 10S battery Output 5V 1.2A Frequency PWM input  Reverse Yes Size 84.1x121x22.6mm Product Advantages 1. Support BLDC square wave mode control and FOC sine wave mode; 2. The CPU adopts STM32F405 with a main frequency of 168MHz and a Cortex-M4 architecture with DSP function; 3. Adopt 24 high current MOS transistors in SON5*6-123 package; 4. Support sensors: ABI, HALL, AS5047, AS5048A; 5. Regenerative braking; 6. Traction control (single and double setting); 7. Support with Hall, without Hall, with sensor, and without sensor; 8. Input source: PPM, analog, NRF NYKO KAMA NUNCHUCK; 9. Communication ports: USB, CAN, UART; Throttle curves and slopes of all input sources, seamless four-limit operation, counting of motor revolutions, ampere-hours, and watt-hours, real-time data analysis and readout through the communication port; 10. The digital VCC and analog VCC are generated by different voltage regulators, which makes the AD conversion of the system more accurate; 11. Adjustable protection measures: low input voltage/high input voltage/large motor current/high input current/over-temperature protection (MOSFET and motor); High regenerative braking current (the separate limit of the motor and the input), high RPM (different limits in each direction), nearly one hundred setting parameters can be changed through the USB port with the host computer software VESC_TOOL and kept in the ESC; 12. With spark-proof switch function and intelligent sliding switch function;, 13. The aluminum substrate is used for extremely effective treatment of thermal diffusion in the circuit, thereby reducing the operating temperature of the module, extending the service life, and improving the power density and reliability; the power circuit and the control circuit are optimally combined; it is also convenient for users External heat sink according to needs. 14. Increase metal shell protection Packaging & Shipping   Related Products            Dual Mini VESC 6.6                         Dual VESC 4.20 Plus                   Dual VESC 6.6 Plus                     50A VESC 4.12                           200A  60V VESC 6                    VESC 6 with Case   Certifications   Company Information FLIPSKY Technology Co., Ltd was set up in 2017. It grows up quickly and powerfully. We have our own design team, manufacture team including the workshop, marketing and sales department. FLIPSKY mainly focus on second innovation research and development basing on the latest international electronic intelligence technology, manufactures and sells electronic intelligent control products and peripheral accessories.   The vision of FLIPSKY is to maximize the use of latest international technology and to change life by it. FLIPSKY's products can be applied in electric skateboards, electric vehicles, scooters, car models, ship models, robots and industrial equipment and other industries.
