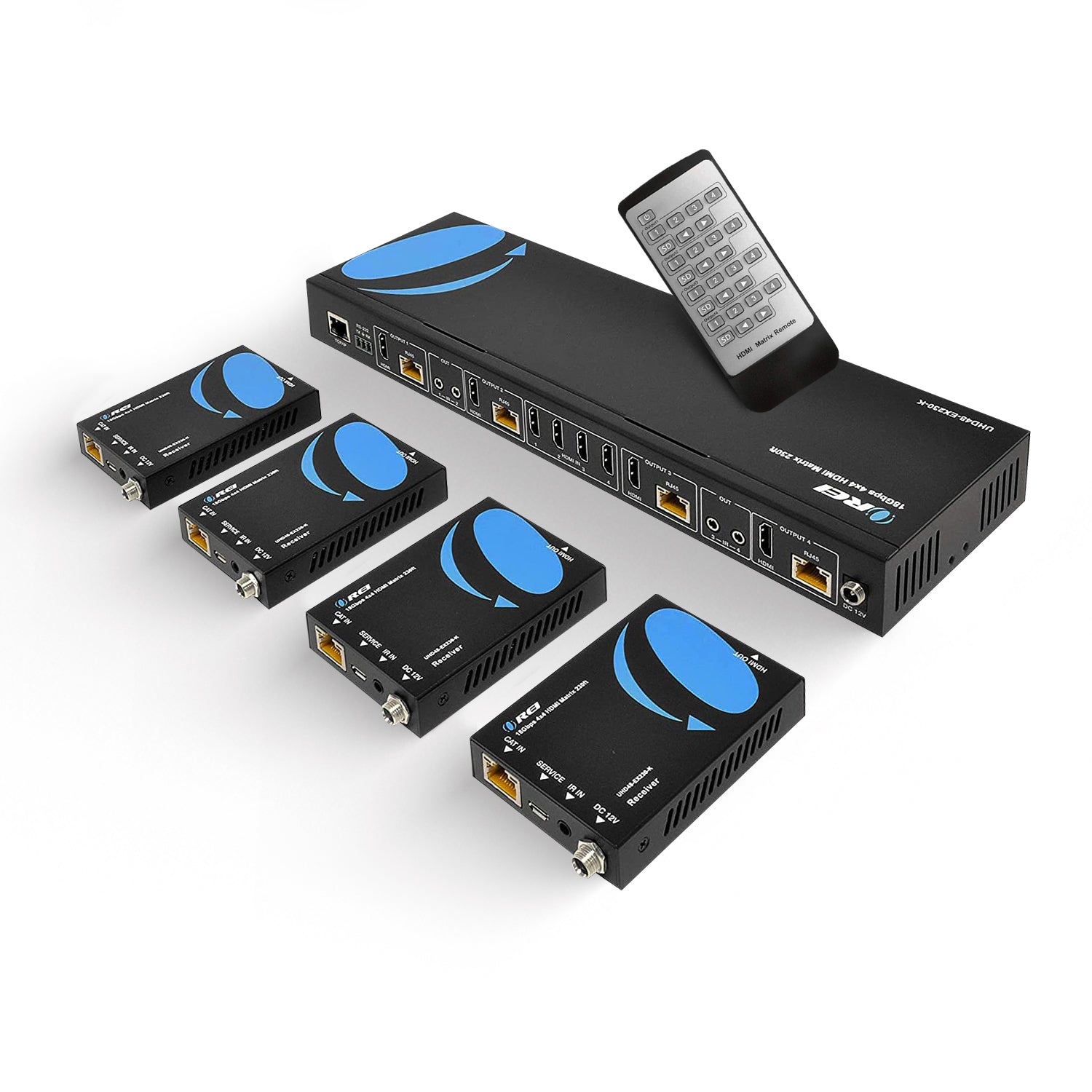

4x4 HDMI Matrix Extender - UltraHD 4K@60Hz Over Single CAT6/7 Cable (UHD48-EX230-K)

OREI 4x4 4k HDMI Matrix Extender - With Uni-directional IR, Power Over Cable & Downscaling Key Features: HDMI 2.0b & HDCP 2.2 compliant Video resolutions up to 4K@60Hz and 2K@60Hz Lossless video bandwidth of up to 18Gbps 4 HDMI loop outputs & 4 mirrored CAT outputs Downscaling support from 4K to 1080P for all output ports HDR10+, Dolby Vision & HLG pass-through HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio) Advanced EDID management and CEC control One-way IR control from Receivers to the Transmitter Power over cable technology; only requires power at the Transmitter end Control via IR remote, RS-232, WebGUI, LAN, and the buttons on the front panel Robust build, perfect for personal and commercial uses. The UHD48-EX230-K is an HDMI Matrix Extender featuring 4 inputs, 4 HDMI loop outputs, and 4 CAT outputs. It can extend all 4 inputs to displays up to 230 feet away from the transmitter. The device is HDMI 1.4 and HDCP 1.4 compliant, supporting video resolutions up to 4K@60Hz and 2K@60Hz and a video bandwidth of 18Gbps, with HDR10+, Dolby Vision, and HLG pass-through. It can downscale the resolution from 4K to 1080p for all outputs. HDMI audio pass-through of up to 7.1 channels of HD audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio). The device offers advanced EDID management and CEC control. Power over Cable (PoC) functionality allows all receivers and the transmitter unit to be powered through a single power adapter. Control the unit via front panel buttons, IR remote, RS-232, LAN, or the WebGUI interface. Perfect for both personal and commercial use. [summary] 4K 4x4 HDMI Matrix Extender. Extends media up to 230 feet with resolutions up to 4K@60Hz and 2K@60Hz Uni-directional IR, Power over cable & Downscaling features [/summary] [tab] CONNECTIVITY Transmitter: INPUT: 4 × HDMI [Type A, 19-pin female] OUTPUT: 4 × HDMI [Type A, 19-pin female] 4 × CAT [RJ45, 8-pin female] CONTROL: 4 × IR OUT [3.5mm Stereo Mini-jack] 1 × TCP/IP [RJ45] 1 × RS-232 [3-Pin Phoenix Connector] Receiver: INPUT: 1 × CAT [RJ45, 8-pin female] OUTPUT: 1 × HDMI [Type A, 19-pin female] CONTROL: 1 × IR IN [3.5mm Stereo Mini-jack] 1× SERVICE [Micro-USB, Update port] PACKAGE CONTENTS 1x Transmitter 4x Receiver 1x IR Remote Control 1x RS-232 Serial Cable 1x 3-pin Phoenix Connectors 4x IR Blaster cable 4x IR Receiver cable 10 x Mounting Ear 1x Power Cable User Manual SUPPORTED CAT CABLES CAT5e, CAT6, CAT7: We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance EXTENDING DISTANCE 4K@60Hz: 230 Feet VIDEO OUTPUT Video Bandwidth: 18Gbps Video Resolutions: Up to 4K@60Hz, 2K@60Hz ADDITIONAL FEATURES CEC: Yes ARC: No USB KVM: No PoC/PoE: Yes IR Control: Yes Downmix: No Downscale: Yes Over IP: No HDBaseT: No RS-232: Yes LOOP-OUT/LOCAL PORT Has loop out port: Yes Number of Loop out ports: 4 AUDIO SUPPORT HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X COMPLIANCES HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 POWER Power Consumption: 19.68W (Max) Power Supply: Input: AC 100-240V 50/60Hz Output: DC 12V/2.5A DIMENSIONS & WEIGHT Transmitter: Length: 320mm / 12.6in Width: 100mm / 3.94in Height: 36mm / 1.42in Weight: 915g / 2.01lb Receiver: Length: 88mm / 3.47in Width: 61mm / 2.4in Height: 18mm / 0.71in Weight: 155g / 5.47oz PROPERTIES Color: Black Housing: Metal Enclosure WARRANTY 1-Year Manufacturer's Warranty [/tab]  [tab1] FAQs Can I purchase the replacement parts such as power adapter, receiver/transmitter, or IR Kit from OREI? Yes, you can purchase these things directly from us. Please contact us & we will assist you further. Can I extend multiple screen with this product? No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs. Can I extend beyond the mentioned distance? Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable. Can I input the output of this product to another extender similar to daisy chain method? Yes, you can implement the daisy chain method. What is the recommended type of CAT cable? Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed. What types of HDMI & CAT cables I should use with this product? We recommend you to use High-Quality HDMI cables & shielded CAT6 cables. Can I purchase additional transmitter? Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price. Can I purchase additional receivers? Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price. Can we upscale/downscale the video resolutions? No, this product doesn't upscale/downscale the video resolutions. Up to what length I can extend this product? You can extend the display devices up to 400 Feet when using with a shielded CAT6 cable. I am not getting signal with CAT5e cable but when I switch to CAT6, the issue gets resolved. How to make this unit work with CAT5e? The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable. How to know if the extender is dead? If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead. Please contact us so that we can troubleshoot the issue. How can I upgrade the firmware? You can upgrade the firmware by connecting the PC & this device via RS-232 cable. I am unable to make the CEC work, what should I do to make this work? Please note that this product only supports the CEC function between HDMI input & HDMI output 1. Can I get CEC to work with optical output? No, optical output doesn't supports CEC due to its limitations. CEC will work only with HDMI devices. What is HDBaseT Extender? HDBaseT is the technology used for long distance transmission of lossless signals, resulting extremely low latency & giving the best picture quality. What is the difference between the normal extenders & HDBaseT extenders? In normal extenders, if you extend your signals up to some extend, the quality of the signals will degrade & you may find some latency issues. HDBaseT is the lastest standard which provides extending your signals to the longer distance without degrading the quality of the signals & with 0 latency. We recommend you using a shielded CAT6 cables for optimum performance. Does this product supports IR Frequency or FR Frequency? Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products. I am unable to get the remote to work with IR, how to connect the IR Blaster/Emitter & IR Receiver? The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver. Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control var acc = document.getElementsByClassName("accordion"); var i; for (i = 0; i [/tab1]
