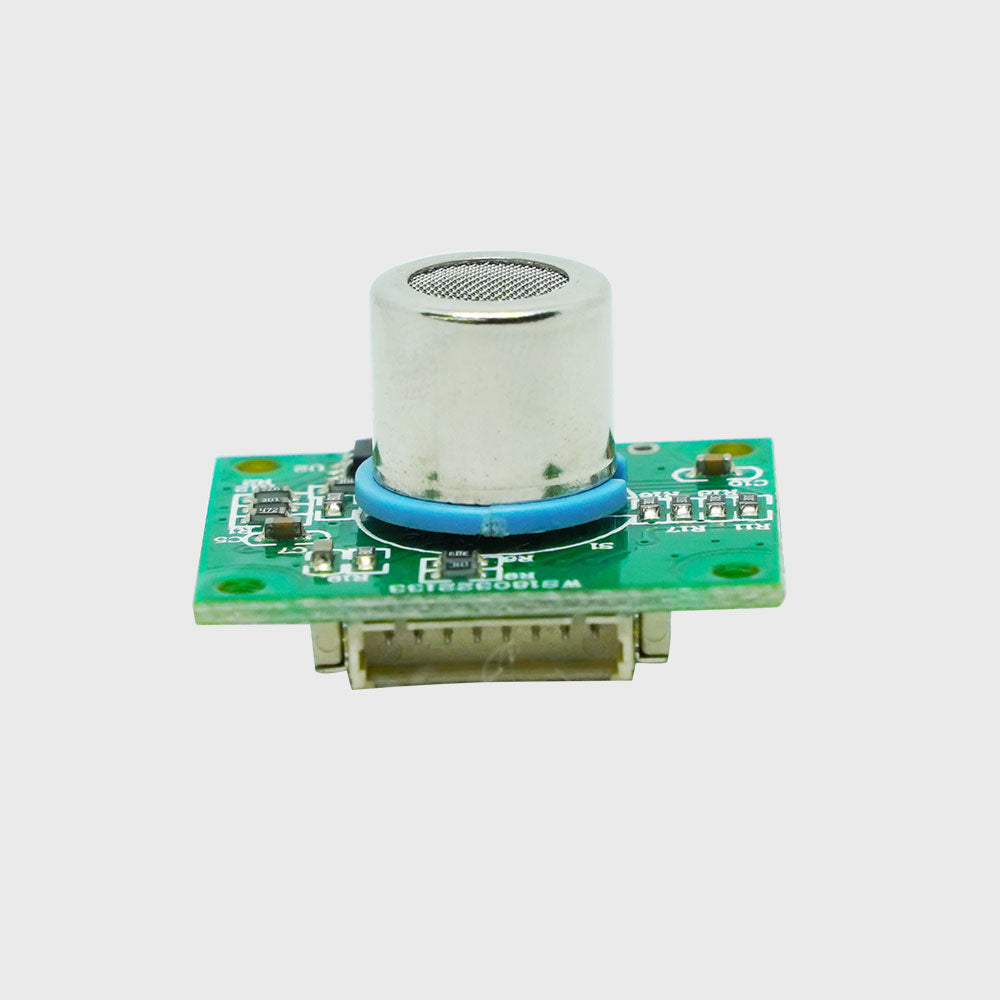

1 PC ZC13 Methane CH4 Sensor Module for Home Gas Safety
shop.winsen-sensor.com

1 PC ZC13 Methane CH4 Sensor Module for Home Gas Safety

$8.86
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

Winsen Electronics

View Store

This ZC13 Module adopts catalytic gas sensor and has basic function of home use gas leakage alarm with digital display: supplying digital UART signal and status indication, buzzer, relay, switch signal through solenoid valve output, as well as support alarm point resetting. It is usually used for development of home use natural gas leakage detector. Application For complete device development of household gas leak alarm. Features Small Size; Fast Response; UART output Specifications Model No. ZC13 Detection gas Natural gas (LNG) Type of Sensor Catalytic type Detection range 1%~25%LEL Output UART (0 or 3V) Working Voltage DC (5±0.1)V Preheat Time 3min Response Time ≤10s Resume Time ≤30s Working Current (155±10) mA Resolution 100ppm Expected Life span 2 years Working Conditions Temperature: -10~55℃ Humidity: 20%~90%RH Storage Conditions Temperature: -20~60℃ Humidity: 20%~65%RH   * The description and specifications might be changed without notice. Please contact us for the latest information before placing orders.
