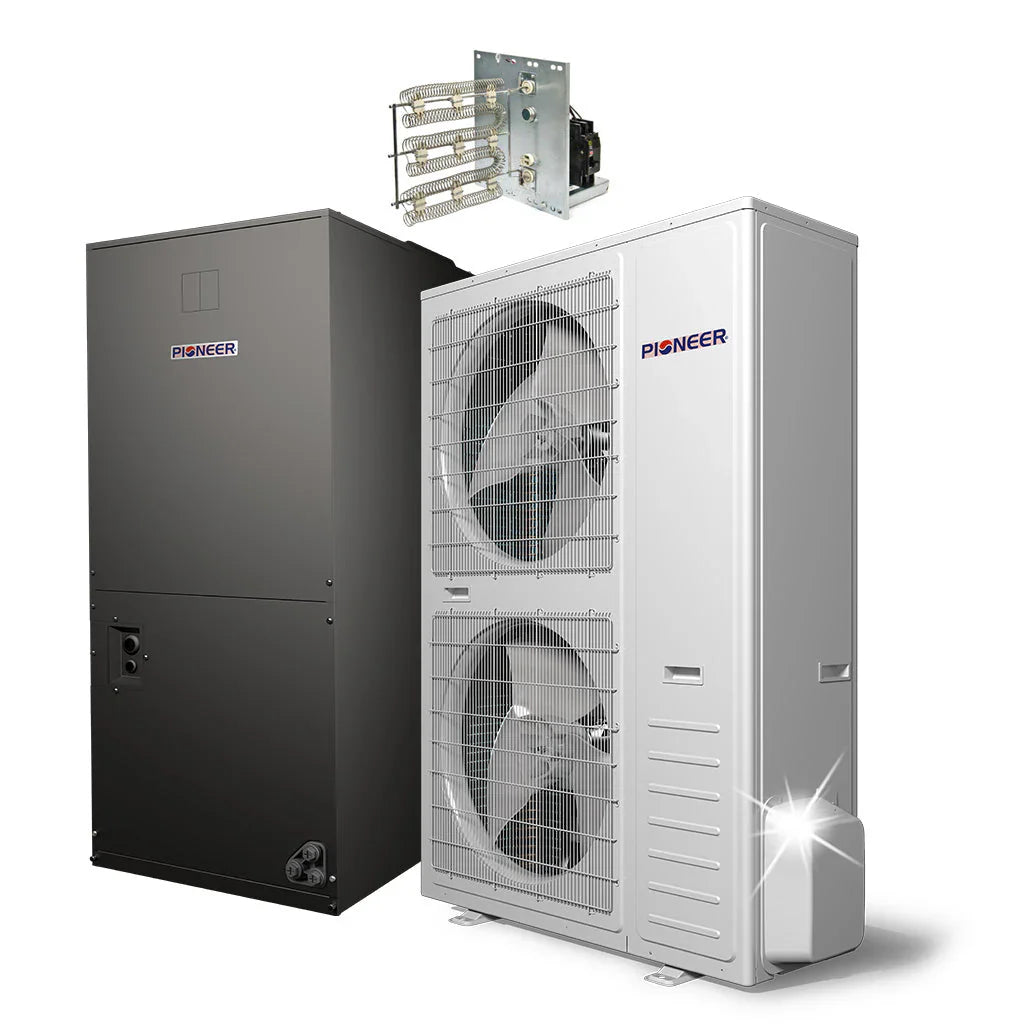

Pioneer® 48,000 BTU 17.5 SEER2 Ducted Central Split Inverter+ Air Conditioner Heat Pump System, 2nd Generation
R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit Performance Power Supply: 208~230V, 60Hz, 1Ph Cooling Rated Capacity: 48,000 BTU/h Cooling SEER2: 17.5 BTU/W.h Cooling EER2: 10.1 BTU/W.h Heating Rated Capacity: 48,000 BTU/h Heating HSPF2 (Region IV): 8.5 BTU/W.h Heating C.O.P.2 (47°F/5°F): 3.3 / 1.9 W/W Communicating system with dedicated signal transmission Refrigerant Type: R410a Suitable Area: 1,600 Sq.F Includes 10 kW Electric Strip Heater w/ breaker AHRI Estimated Annual Operating Costs: Cooling: $352.00 Heating: $1015.00 Indoor Unit Model: DR048GHFD18HT2 Air Flow: 1706 CFM Sound Level: 64 dB(A) Fan Motor Type: Multi-Speed ECM Net Dimensions (WDH): 22 × 24 × 53-7/8 Inches Carton Dimensions (WDH): 25-1/4 × 28 × 55-1/2 Inches Net / Gross Weight: 187 / 214 Lbs Outdoor Unit Model: YH4248GHFD18R2 Sound Level: 59 dB(A) Metering Device: EXV Operating Temperatures: (-13°F - 75°F/Heating)/(5° - 122°F/Cooling) Net Dimensions (WDH): 37-3/8 × 13-3/8 × 54-1/2 Inches Carton Dimensions (WDH): 43-3/4 ×18-1/8 × 60-1/4 Inches Net / Gross Weight: 251 / 278 Lbs Manuals & Downloads Series Technical Brochure Indoor Section Installation Manual Outdoor Section Installation Manual Indoor Section Service Manual Outdoor Section Service Manual DYR4248GMFI18R Submittal Sheet AHRI Certificate Energy Guide
