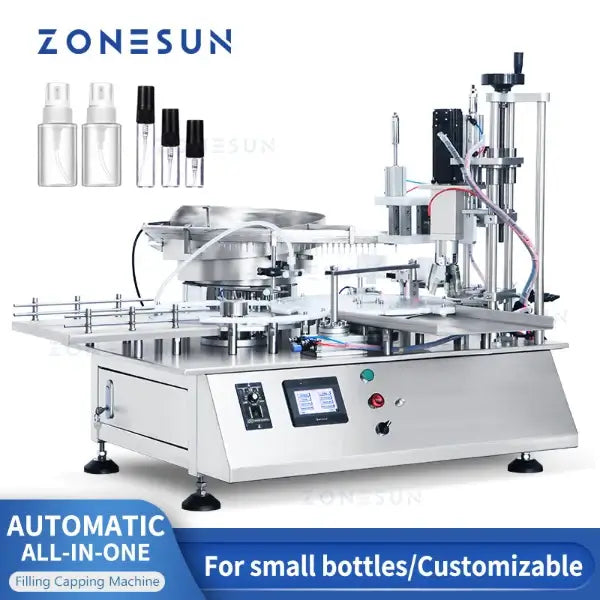

ZONESUN ZS-AFC7 Monoblock Single Nozzle Magnetic Pump Liquid Filling and Capping Machine

DESCRIPTION This filling capping machine is designed for mini bottles like eyedrop bottles, essential oil bottles, and perfume sample bottles. It can sort bottles, fill liquid, feed caps, and tighten bottle caps. It is also equipped with a cap vibratory bowl sorter which can fill liquid automatically. It greatly saves labor and space. PARAMETER Machine Model ZS-AFC7 Machine power 1000W Machine voltage 110/220V 50-60HZ Filling pump Magnetic Pump Recommended filling range 10-200ml Pump maximum flow rate 4L/min Suitable bottle height About 10-100mm Suitable bottle diameter About 15-100mm Suitable cover size φ=10-50mm Working speed About 30 bottles/min Machine size About 980*820*960mm(machine) About 510*720*620mm(vibratory bowl sorter) Machine weight About 200kg Package size About 1060*750*1060mm(machine) About 750*550*590mm(vibratory bowl sorter) Package weight About 175kg(machine) About 90kg(vibratory bowl sorter)         PRODUCT DETAILS CONTROL PANEL   PLC controls, touch screen, color display. Customization for a local language is available.      TURNTABLE   Vial unscrambling     FILLING   Magnetic pump, accurate.     WORKTABLE   12 stations, custom size     FEEDING   With a cap feeder, custom size.     CAPPING   Robotic hand. It won't stop until the cap is screwed.
