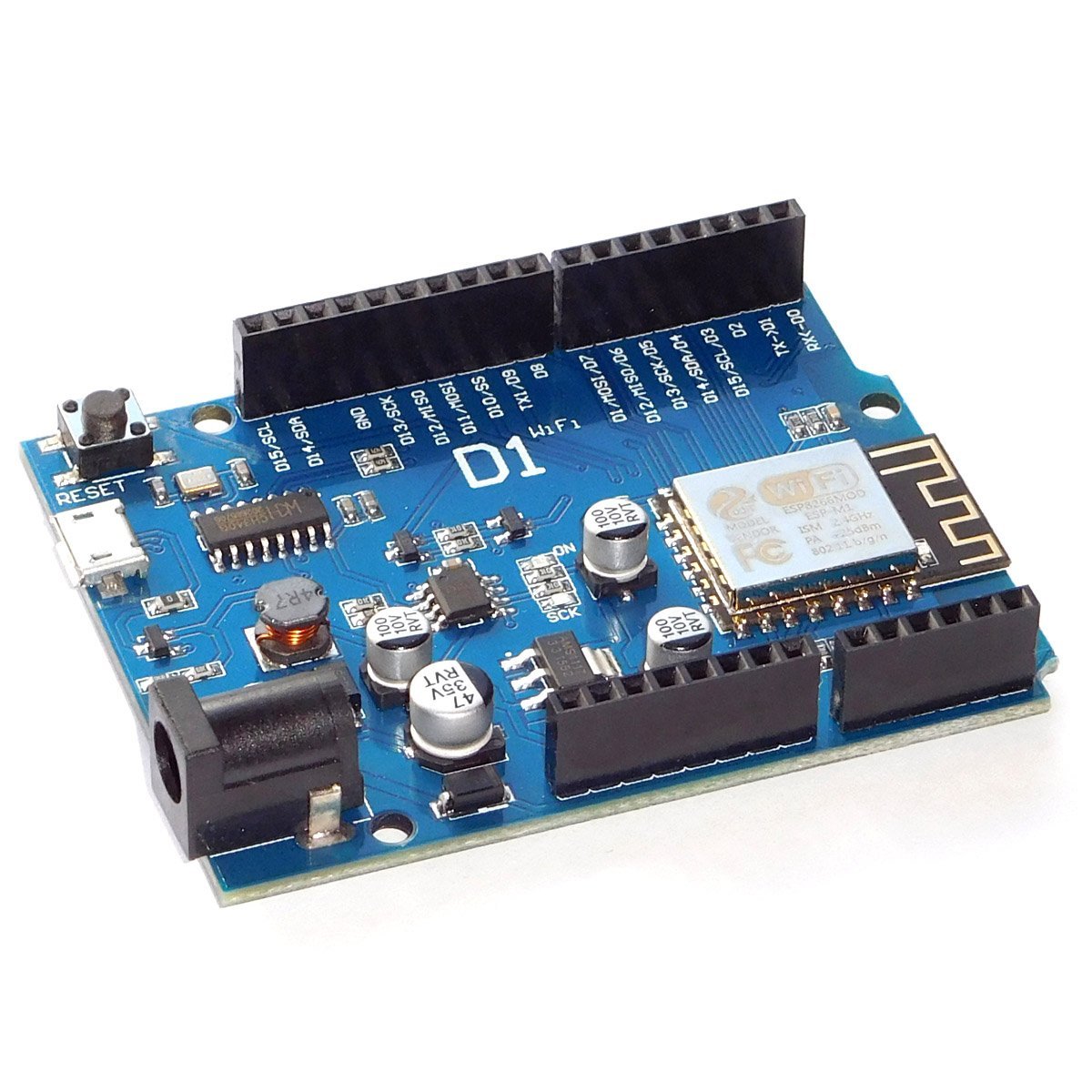

WeMos D1 CH340 WiFi Arduino UNO R3 Development Board ESP8266 ESP-12F

This WeMos D1 R2 development board for Arduino / NodeMCU is a WiFi capable ESP8266 based development board in the format of the Arduino UNO R3. This board is compatible with the Arduino IDE and with NodeMCU. The D1 features an on-board switching power supply which allows you to power the board from a power supply up to 24V, 11 GPIO pins (can be used as input/output/PWM/I²C, except D0), and 1 analog input. The PWM resolution is 10bit (1MHz frequency). The integrated 5V switching power supply (1A) is followed by a 3.3V LDO to supply power for the Wifi module and the 3.3V output (power supply for sensors and shields). Please pay attention when you connect other active peripherals to the I/O pins, because this is a 3.3V logic level device and higher levels on any pin could damage it. The maximum input voltage for the analog pin is 3.2V. Specifications: 80 MHz Processor / 4M Flash FCC Certified ESP8266-12F Module 11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported (except for D0) 1 analog input (3.2V max input) Micro USB connection Power jack, 9-24V power input Compatible with Arduino and NodeMCU All IO pins are 3.3V and have interrupt/pwm/I2C/one-wire support except D0 Package Includes: 1x WeMos D1 R2 Board ESP8266 Arduino NodeMCU Development Board Printed installation and operation notes
