Williams Sound IR ME1 D IR+ Combo with Dante

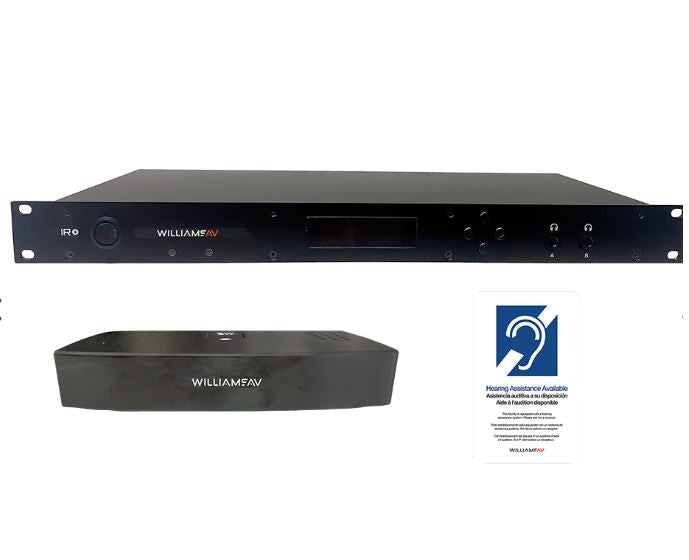

Williams Sound IR ME1 D IR+ Combo with Dante IR Plus Combo with Dante - Includes:  (1) IR M1 D IR + Infrared Modulator / Wi-Fi Server with Dante input supporting 2 channels, (1) IR E4 IR + Infrared emitter, and (1) IDP 008 ADA wall plaque. Specifications IR M1 Dimensions: 19” (W) x 1.75” (H) x 8.2” (D)(48.3 cm x 4.5 cm x 20.8 cm) Weight: 5.2lb. (2.4 kg) Color: Black Rack Mount: Single Rack Unit Power Supply: International Desktop SupplyInput: 36 W, 110-240 VAC 50-60 HzOutput: +48VDC, 0.75A center-positive Power Switch: Rocker switch with LED Signal to Noise Ratio: 67 dB (typical) Modulation: FM Wideband, +50kHz deviation, 50uS pre-emphasis Carrier Frequency: Selectable, 2.3/2.8 or 3.3/3.8MHz Frequency Response: 40 to 16,000Hz, +1 dB, -3dB, electrical response Total Harmonic Distortion: Less than 2%, electrical response Audio Processor Functions: DSP based; Compression 1:1, 1.5:1, or 2:1; High-pass and low-pass filter frequency control Auto Carrier Shut-Off: Adjustable timer shuts off carrier when no audio is present. Adjustable through webpage. Infrared Test LED: Dual IR LED for receiver testing, monitoring, and audio signal testing. Audio Input: (2x) Combination 3-pin XLR, 1/4” (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power Dante: Optional Internal Test Tone: 400 Hz internal test tone selectable as audio input source for setup and diagnostics Remote Configuration: Available through embedded website Headphone Output: (2) 1/4″ headphone jacks on front panel for monitoring CH A and CH B audio inputs Emitter Output Jack: Four RJ-45 ports for CAT5e cables; provides +48VDC Power, RS-485 communication, and Baseband signals for IR transmission. Operating requirements: 0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere Approvals: CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI Warranty: 2 years on Modulator, 90 days on accessories IR E4 Dimensions: 7.5” (W) x 1.4” (H) x 3.6” (D)(19.1 cm x 3.6 cm x 9.1 cm) Weight: 0.8 lb (362 g) Color: Black Power: 48 VDC supplied by IR M1 via CAT 5e cable. Coverage Area: Up to 18,000 square feet in single channel mode Connectivity: +48VDC Power, RS-485 communication, and Baseband signals for IR trasmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1. Operating requirements: 0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere Approvals: CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI Warranty: 2 years on Emitter; 90 days on accessories Warranty 2 Years
