Williams Sound IR SY11 D IR+ Complete with Dante

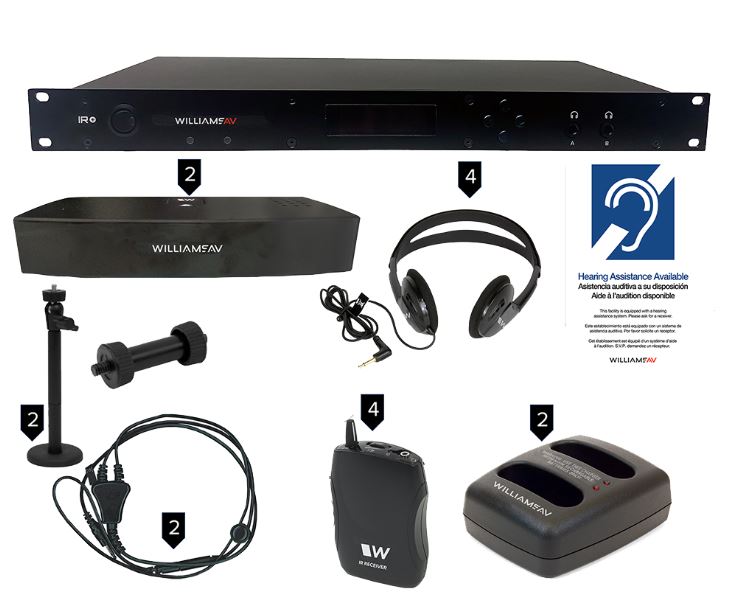

Williams Sound IR SY11 D IR+ Complete with Dante IR+ system fully packed with all the tools needed for a large, functioning system. System Includes (1) IR M1 D rack mounter Modulator with Dante(2) IR E4 Wall mounted IR Emitters(4) WIR RX22-4 4 Ch. IR receivers with lanyard(2) CHG 3502 2-Bay drop in charger(2) NKL 001 Neckloop attachment couples to hearing aid (needed for ADA compliance )(4) HED 021 Performance headphones(4) BAT 026-2 Rechargeable NiCad AA batts ( pair)(1) MLB 003 Linking bar for dual emitters(2) BKT 024 Wall mount for dual emitters(1) IDP 008 ADA signage Specifications IR M1 Dimensions: 19” (W) x 1.75” (H) x 8.2” (D)(48.3 cm x 4.5 cm x 20.8 cm) Weight: 5.2lb. (2.4 kg) Color: Black Rack Mount: Single Rack Unit Power Supply: International Desktop SupplyInput: 36 W, 110-240 VAC 50-60 HzOutput: +48VDC, 0.75A center-positive Power Switch: Rocker switch with LED Signal to Noise Ratio: 67 dB (typical) Modulation: FM Wideband, +50kHz deviation, 50uS pre-emphasis Carrier Frequency: Selectable, 2.3/2.8 or 3.3/3.8MHz Frequency Response: 40 to 16,000Hz, +1 dB, -3dB, electrical response Total Harmonic Distortion: Less than 2%, electrical response Audio Processor Functions: DSP based; Compression 1:1, 1.5:1, or 2:1; High-pass and low-pass filter frequency control Auto Carrier Shut-Off: Adjustable timer shuts off carrier when no audio is present. Adjustable through webpage. Infrared Test LED: Dual IR LED for receiver testing, monitoring, and audio signal testing. Audio Input: (2x) Combination 3-pin XLR, 1/4” (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power Dante: Optional Internal Test Tone: 400 Hz internal test tone selectable as audio input source for setup and diagnostics Remote Configuration: Available through embedded website Headphone Output: (2) 1/4″ headphone jacks on front panel for monitoring CH A and CH B audio inputs Emitter Output Jack: Four RJ-45 ports for CAT5e cables; provides +48VDC Power, RS-485 communication, and Baseband signals for IR transmission. Operating requirements: 0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere Approvals: CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI Warranty: 2 years on Modulator, 90 days on accessories IR E4 Dimensions: 7.5” (W) x 1.4” (H) x 3.6” (D)(19.1 cm x 3.6 cm x 9.1 cm) Weight: 0.8 lb (362 g) Color: Black Power: 48 VDC supplied by IR M1 via CAT 5e cable. Coverage Area: Up to 18,000 square feet in single channel mode Connectivity: +48VDC Power, RS-485 communication, and Baseband signals for IR trasmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1. Operating requirements: 0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere Approvals: CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI Warranty: 2 years on Emitter; 90 days on accessories WIR RX22 Receiver Style: Body-Pack, dual-lens detector, lanyard Size: 4.1″ L x 2.85″ W x 1.2″ H (104.1 mm x 72.4 mm x 30.4 mm) Weight: 4.5 oz (127 g) with batteries Color and Material: Black Lanyard: 3 ft (0.91 m), allows receiver to be worn around the neck Operating Temperature: -10° C to +50° C Battery Type: 2 x AA, alkaline (BAT 001-2) or NiMH (BAT 026-2) Battery Life: Alkaline: 60 hours, NiMH: 30 hours/charge Battery Drain: 25 mA, nominal Charging Contacts: For use only with CHG 3512 Carrier Frequency: Channel 1: 2.3 MHz, Channel 2: 2.8 MHz   Channel 3: 3.3 MHz, Channel 4: 3.8 MHz De-Emphasis: 50 uS FM Deviation: ±50 kHz Signal-to-Noise Ratio: 60 dB min. Squelch: Receiver squelches (mutes) at 28 dB S/N ratio Frequency Response: 25 Hz to 16 KHz, +1 dB, -3 dB, electrical response Total Harmonic Distortion: Less than 1%, electrical response Controls: ON/OFF/VOLUME: combination thumbwheel knob   Channel Selector: four-position rotary switch Indicators: Red LED “ON” indicator, flashes to indicate Low battery Audio Output Jacks: 3.5 mm stereo mini phone jack Accepts 3.5 mm mono or stereo phone plug Audio Output Power: 15 mW max at 32 Ω Acoustic Output: 125 dB SSPL90 with HED 021; 110 dB SSPL90 w/ EAR 013 Sensitivity: Better than 1 nW/cm2 for 40 dB signal-to-noise ratio Approvals: CE, FCC, RoHS, WEEE Warranty: 5 years on receiver, 90 days on accessories Compatible Headphones/Earphones: Mono or stereo, 8-32 ohms, 3.5 mm mini phone plug, HED 021, HED 026, EAR 013, EAR 014, EAR 022, NKL 001 CHG 3502 Dimensions: 4-7/8″L x 3-7/8″”W x 2″H (12.4 cm L x 9.8 cm W x 5.1 cm) Shipping Weight: 1.1 lbs (0.5 kg) Enclosure: Black, ABS plastic Charger Power: Input: 6 VDC, 300mA, Center Positive. Output: 100mA per bay. Power Supply: Williams Sound TFP 041 (US) Input: 100-240 VAC, 50-60Hz, 0.5-0.3 A Output: 6 VDC, 1.5 A. Charging Time: 16 hours nominal * Unit Capacity: 2 Units Indicators: 2 Red LEDs – one for each bay. LEDs are lit when charging. Warranty: 2-year Approvals: CE, FCC, RoHS Warranty 2 Years
