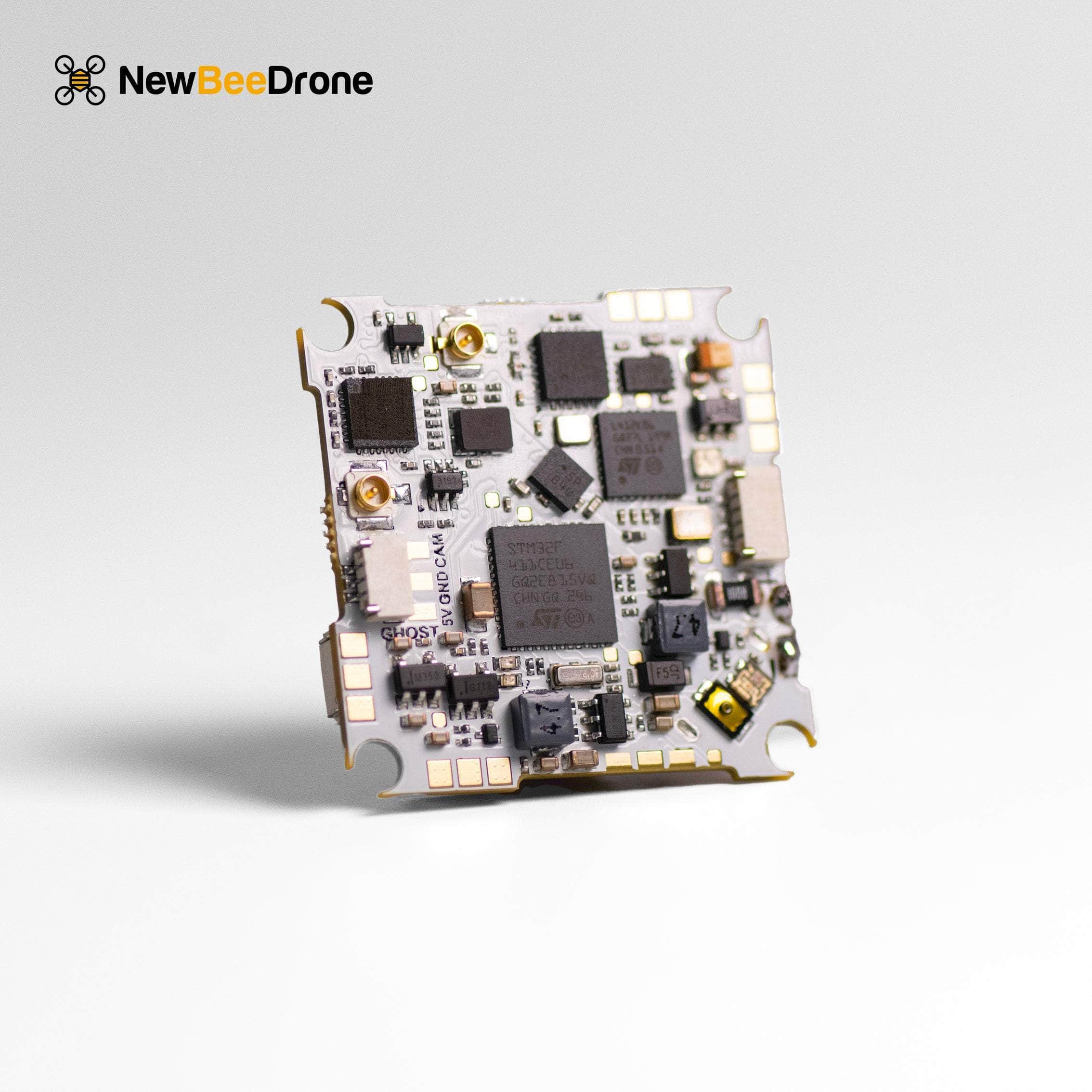

NewBeeDrone x ImmersionRC BeeBrain BLV4 Built-in Ghost Rx AIO Flight Controller
NewBeeDrone x ImmersionRC BeeBrain BLV4 Built in Ghost Rx Warning! The BeeBrainBLV4 OSD might not compatible with third party camera. If you are planning to use it for customized build, Please be aware it only support the camera below: NewBeeDrone BeeEye CameraRuncam Nano4 BeeBrain BLV4 GHOST Spec:MCU: STM32F411GYRO：BMI270VTX: Switchable output power from 5mw- 25mw(for Racing) - SmartMAX(SmartMax up to 400mw) with BeeTX 5.8Ghz AntennaESC: 12A BLHeliS Pre-Flash with Bluejay 0.18 target: S-H-40 48kHzESC Connector: JST-1.0 3PinOSD: NBD7456 Graphical OSD compatible with Betaflight OSDReceiver: GHOST 2.4G receiver with GHOST 2.4G qT AntennaFlight Controller Weight: 6.5g(Include antennas and battery connector)Flight Controller Size: Outer dimensions: 29x29x7.6mmFlight Controller Holes: 25.5x25.5mmBattery input: 1SUart2: Tx for GHOST 2.4G ReceiverUart1: Tx&Rx freePower Connector: NBD-PH2.0 connector Includes 1 x BeeBrain BLV4 GHOST Flight Controller 4 x Grommet 4 x Screw 1 x qT Antenna 1 x VTX Antenna Firmware: 1. BeeBrain BLV4 GHOST Betaflight 4.4 firmware All New firmware can be found on our Github Page Terms and Condition: We would like to remind you that our flight controller product is designed to work with our own product line. While we have taken every possible measure to ensure the quality and compatibility of our product line, using third party components may result in incompatibility or improper functioning of the product. such as Camere with different voltage signal will mass up the OSD function, frame from other company that is not fitting well with our FC, Motor plug are not compatible with the JST1.0 on the FC. etc. We strongly recommend that you verify the compatibility and functioning before any soldering or modification. Please be aware, drone flight controller will break due to crash, any physical damage or crash will have posibility to destory the hardware. This is also not cover by our warranty. If you find that the product is Dead On Arrival (DOA), we will replace it for you free of charge. However, we cannot take responsibility for any issues that may arise due to modifications made to the product or the use 3rd party components. In such cases, we will not be able to provide support or warranty coverage. Wire Diagram:
