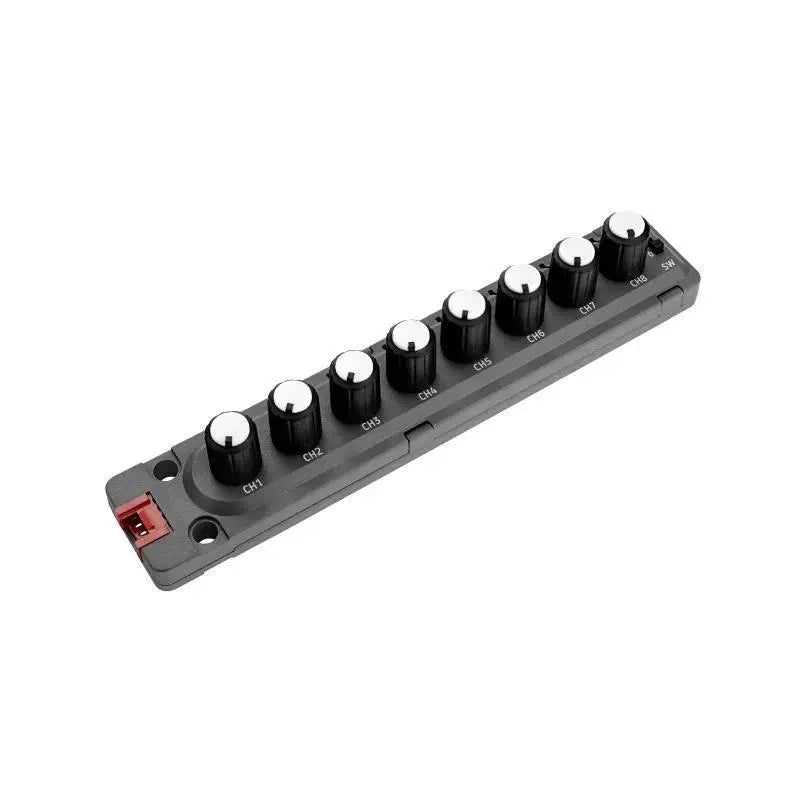

M5Stack 8-Encoder Unit (STM32F030)
Description M5Stack 8-Encoder Unit (STM32F030) Offers a set of 8 Rotary Encoders Features two LEGO-compatible holes Includes a 20 cm HY2.0-4P Cable Communication: I2C Input voltage: 5 V The M5Stack 8-Encoder Unit (STM32F030) is a set of 8 rotary encoders as one of the input units, the internal use of STM32 single-chip microcomputer as the acquisition and communication processor, and the host computer using an I2C communication interface, each rotary encoder corresponds to 1 RGB LED light, the encoder in addition to left and right rotation, but also radially pressed, in addition to a physical toggle switch and its corresponding RGB LED light, including 5V->3V3 DCDC circuit. The unit can be used for the input of multi-channel relative control values, the corresponding RGB lamp can display different statuses, and the toggle switch can be used for the input of multi-channel switching quantities. It can be used as a multi-degree-of-freedom robot or music equalization application. View more What's Included 1x 8Encoder Unit 1x HY2.0-4P Cable (20 cm) Dimensions Size 128 x 24 x 22.7 mm HY2.0-4P Cable Length: 20 cm Specifications MCU: STM32F030C8T6 RGB: WS2812C-2020 Input voltage: 5 V Cable: HY2.0-4P Communication: I2C address: 0x41 Weight: 42.8 g
