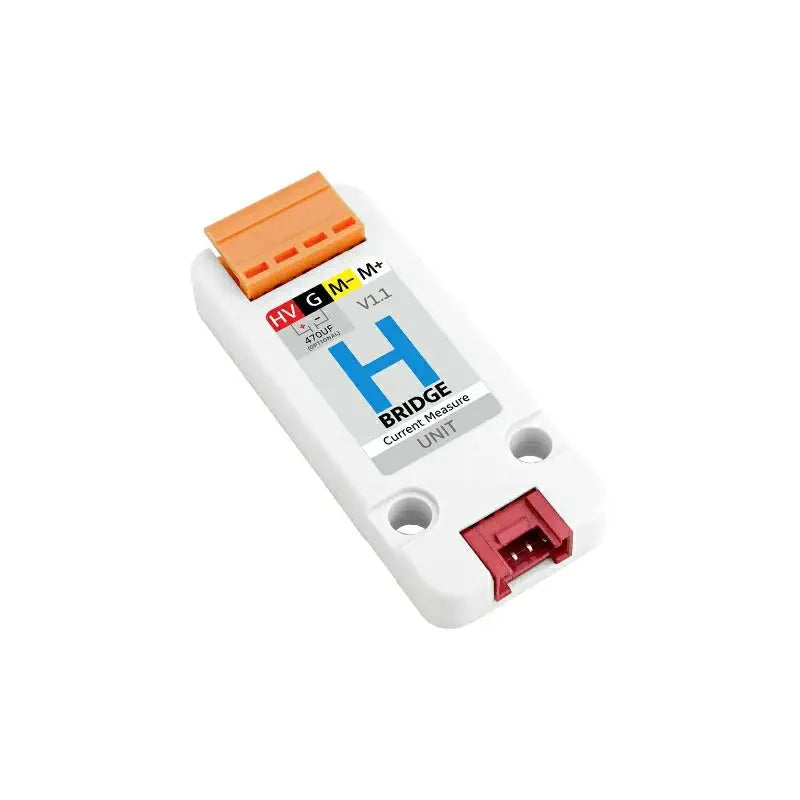

M5Stack H-Bridge V1.1 Unit (STM32F030)

M5Stack H-Bridge V1.1 Unit (STM32F030)

$7.43
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}

Description M5Stack H-Bridge V1.1 Unit (STM32F030) Features precise PWM control for speed adjustment Equipped with over-current, over-voltage, and over-temperature protections Suitable for robotics, industrial automation, and smart homes The M5Stack H-Bridge V1.1 Unit (STM32F030) is a sophisticated DC motor drive module that revolutionizes the concept of motor control. This unit is equipped with the STM32F030+RZ7899 scheme, which facilitates smooth I2C communication with the M5 host. It provides precise PWM control for speed adjustment and allows for the effortless management of forward, reverse, and braking functions. The unit prioritizes safety and reliability, featuring built-in protections against over-current, over-voltage, and over-temperature scenarios. The module's total power MOSTUBE switch circuit enables dynamic motor control through programming. Additionally, the integrated total current acquisition circuit ensures the safe operation of the motor. The module is designed to cater to a variety of needs, incorporating a smart 6-12V and 5V switching circuit. It is suitable for a wide range of applications, including robotics, motor drives, industrial automation, and smart homes. View more What's Included 1x H-bridge v1.1 Unit 1x VH3.96-4P 1x HY2.0-4P Cable (20cm) 1x M2 Hex Wrench 1x 470uf Aluminum Electrolytic Capacitor Dimensions 48 x 24 x 8 mm (L x W x H) Links PDF File M5Stack H-Bridge V1.1 Unit (STM32F030) - Schematics Multimedia docReady(function() {$('button[aria-controls=unique-tab-5]').one('click',function() {$("#iframe-video-1").html('');})}); Specifications MCU: STM32F030F4P6 DC bidirectional motor driver chip: RZ7899 Current acquisition chip: INA199A1DCKR External access DC voltage: MAX 12 V I2C mailing address: Default 0x20 (can be modified by toggle of the encoding switch) Maximum allowable current: 3 A Use temperature: 0 - 40 °C Package Weight: 14 g
