Audio Expansion Module for Raspberry Pi Pico, Headphone / Speaker Output

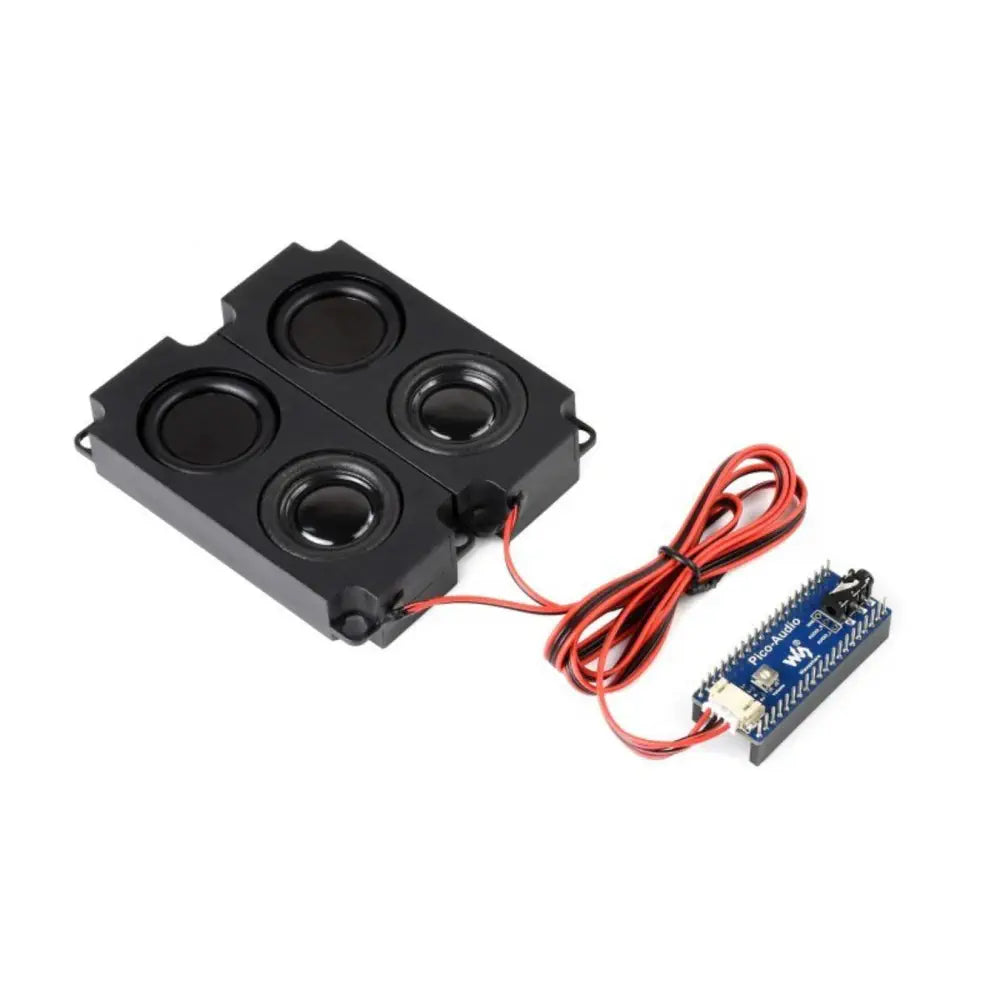

Description Audio Expansion Module Features Concurrently Headphone / Speaker Output Designed for Raspberry Pi Pico (Not Included) Comes with development resources and manual Using 3-wire I2S, effectively reducing EMI Stereo sound effect output Standard 3.5mm audio jack Dual channels speaker headers, for direct driving speakers The Audio Expansion Module for Raspberry Pi Pico, Headphone / Speaker Output is an audio expansion module designed for Raspberry Pi Pico, which incorporates PCM5101A low power stereo decoder, and uses I2S bus for transmitting the audio signal. It supports a wide range of audio sampling rates, allows headphone and speaker signal output at the same time. View more What's Included 1x Pico-Audio 1x 8Ω 5W speaker Dimensions Size 21 x 52 mm (L x W) Links PDF File Audio Expansion Module for Raspberry Pi Pico, Headphone / Speaker Output - Schematics Specifications Operating Voltage: 5 V Logic Level: 3.3 V Audio Decoder: PCM5101A Audio Bus: I2S DAC SNR: 106 dB Speaker Driving: 2.6 W / channel (4Ω BTL) Weight: 0.156 kg
