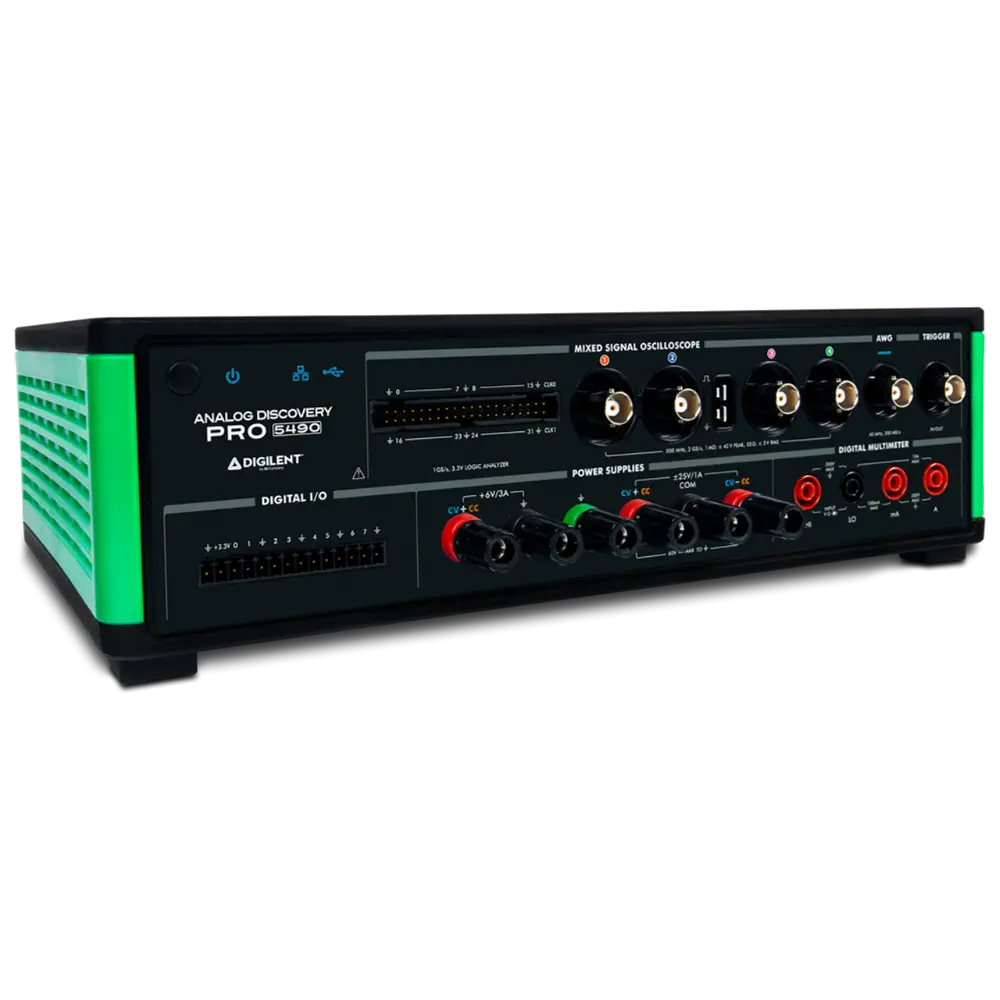

Digilent Analog Discovery Pro ADP5490 (4 Input, 500MHz, 2GS/s) ADP5490 (Specs) w/ BNC Probes

Description Digilent Analog Discovery Pro ADP5490 (4 Input, 500MHz, 2GS/s) ADP5490 (Specs) w/ BNC Probes Integrates 500MHz bandwidth with 4 BNC input channels Features 1 GS/s sampling on 34 digital input channels Offers programmable power supply with up to 25 V output Supports cross-triggering via WaveForms software Compatible with Windows® for versatile computing use The Digilent Analog Discovery Pro ADP5490 (4 Input, 500MHz, 2GS/s) ADP5490 (Specs) w/ BNC Probes represents a pinnacle in mixed signal oscilloscopes, offering advanced capabilities for comprehensive signal analysis. This device integrates a wide array of functionalities, including a CAT II Digital Multimeter, programmable power supplies, and an arbitrary waveform generator, all designed to enhance the mixed signal oscilloscope experience. With four analog input channels, the ADP5490 provides a substantial bandwidth of 500 MHz and a sampling rate of 2 GS/s per channel, ensuring precise and detailed signal capture. The ADP5490 is equipped with 34 digital input channels, each capable of operating at a sampling rate of 1 GS/s, allowing for extensive digital signal analysis. The device also features a BNC output channel with a 40 MHz bandwidth and a 14-bit resolution, supporting a wide range of signal generation tasks. The inclusion of a tri-output programmable power supply further extends its versatility, offering up to 25 V output, making it suitable for various testing and development environments. Driven by Digilent’s WaveForms software, the ADP5490 provides a user-friendly interface for configuring and controlling the device's extensive features. The software supports cross-triggering between instruments, enabling synchronized operations and enhanced analysis capabilities. Additionally, the device supports external triggering, allowing for precise control over measurement events. The ADP5490 is designed for Windows® operating systems, ensuring compatibility with a wide range of computing environments. Its robust construction and comprehensive feature set make it an ideal choice for professionals seeking a reliable and versatile tool for signal analysis and testing. View more What's Included 1x Digilent Analog Discovery Pro ADP5490 (4 Input, 500MHz, 2GS/s) ADP5490 (Specs) w/ BNC Probes 4x T2500 500 MHz x1/x10 Oscilloscope Probe Specifications Four BNC input channels 500 MHz bandwidth, 2 GS/s per channel 8-bit resolution, 40 V peak-to-peak Up to 1 million samples per channel record length One BNC output channel 40 MHz bandwidth, 200 MS/s 14-bit resolution, up to ±12 V AC amplitude Up to 1 million sample output buffer Up to 3 A output on the 6 V rail, up to 1 A each on the ±25 V rails CAT II digital multimeter with functions: DC voltage, AC voltage, DC current, AC current, resistance, diode, continuity 5 1/2 digits resolution and 5 S/s sample rate Voltage measurement up to 300 V Current measurement up to 10 A and 100 mA 34 digital input channels 0 to 5 V, with configurable 0 to 2 V threshold Maximum sampling rate: 1 GS/s Up to 1 million sample points total record length Eight digital input/output channels usable with virtual I/O devices in software Input logic standard: 5 V compatible TTL Output logic standard: 3 V LVTTL USB 2.0 Hi-Speed Ethernet for device control
