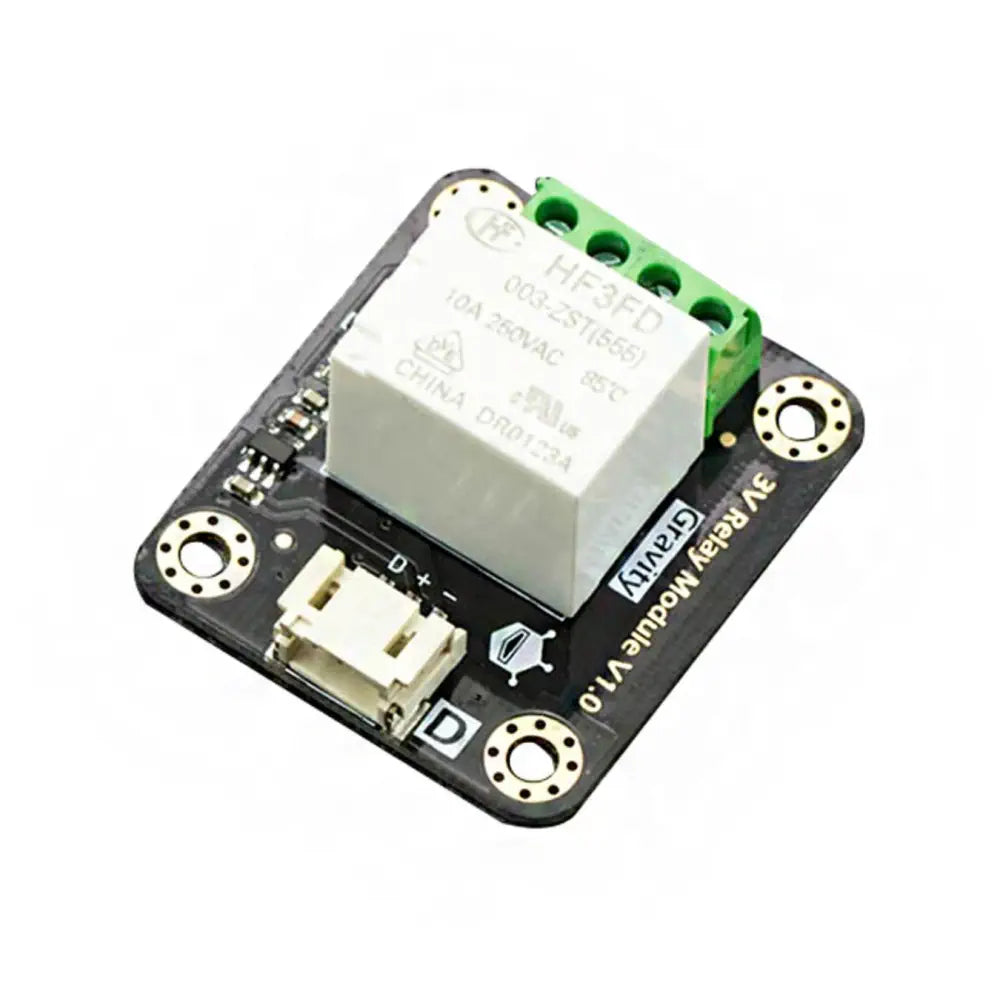

Gravity Digital 10A Relay Module

Description Supports Arduino, Raspberry Pi, Lattepanda .etc. 2.8 ~ 5.5V – A wide-range of input voltages The underside of board is isolated using an acrylic plate for safety Includes an LED Indicator Uses a gravity-3 Pin interface for easy, plug and play usage The Gravity Digital 10A Relay Module is a little different to the other relays - not only is it compatible with 5V Arduino boards, but also with Raspberry Pi, BBB (BeagleBoard Black), mbed, Intel Joule, Arduino 101 and other 3.3V devices. It is specially designed for low-voltage devices and works well under 3.3V power supplies, just like the Raspberry Pi relay board. In addition, the module has a wide range of power inputs. View more What's Included 1x - Gravity: Digital Relay Module (with Acrylic Base) 1x - Gravity Digital Sensor Cable Dimensions Links PDF Files Gravity Digital 10A Relay Module Datasheet Gravity Digital 10A Relay Module Schematic Specifications Operating Voltage: 2.8V ~ 5.5V Input Signal: High Level (≥2.8V); Low Level (≤0.5V) Max Switching Current: 10A Max Switching Voltage: 35VAC; 30VDC Rating Load: 10A@35VAC; 10A@28VDC Max Switching Power: 300W Operate Time: ≤10ms Release Time: ≤5ms Dimensions: 38 x 33 x 20 mm /1.5 x 1.3 x 0.81” Mechanical Life: 1 million uses Electrical Life: 50 thousand uses Weight: 20g
