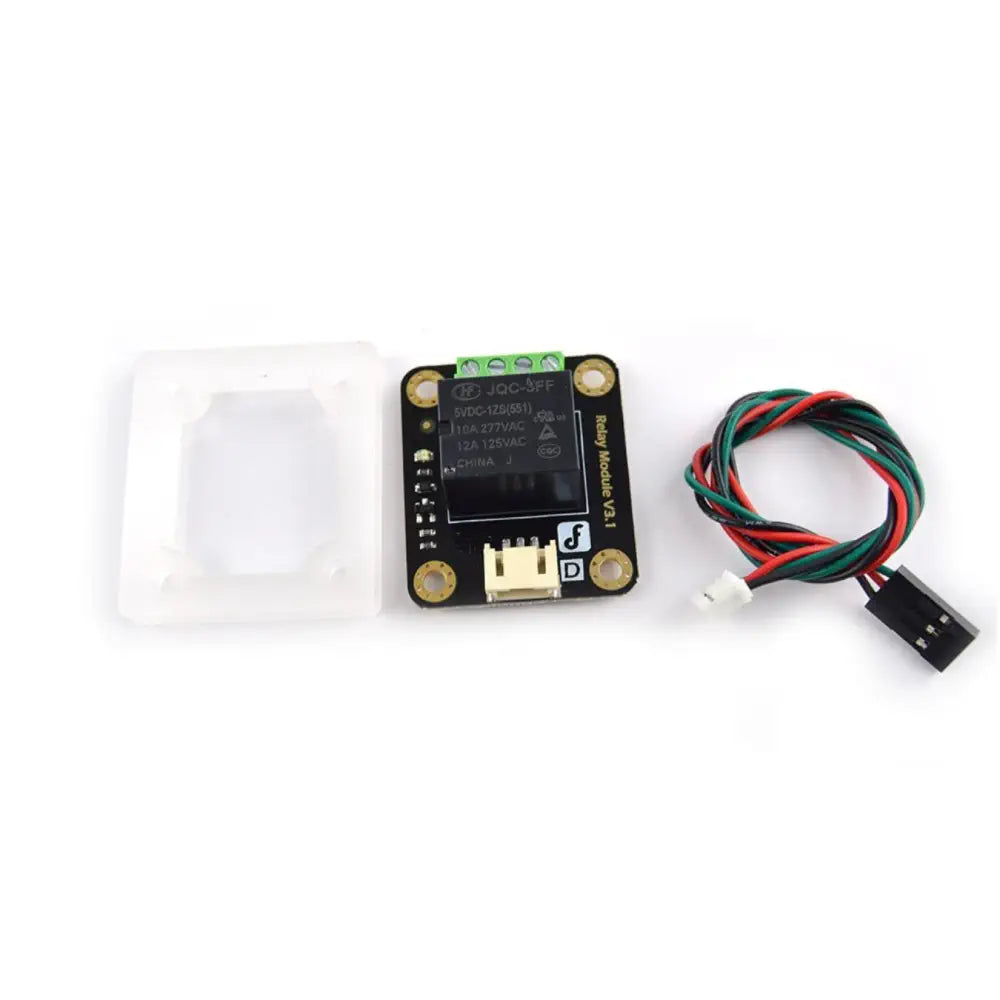

Gravity Single Relay Module

$3.64
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

Description Blocks the number of electronic modules Can be used in interactive projects Its modular design makes it easy to expand with the Arduino board (not included) The Relay output state by a light-emitting diode The Gravity Single Relay Moduleblocks the number of electronic modules. It can be used in interactive projects.  It can also be used to control the lighting, electrical and other equipments. The modular design makes it easy to expand with the Arduino board (not included). The Relay output state by a light-emitting diode. It can be controlled through the digital IO port, such as solenoid valves, lamps, motors and other high current or high voltage devices. View more Links PDF Files Datasheet Datasheet V1.0 Specifications Type: Digital Single relay board Rated through-current: 10A (NO) 5A (NC) Maximum switching voltage: 150VAC 24VDC Digital interface Control signal: TTL level Contact Rating (Res. Load):10A 277VAC/24VDC Max. switching voltage 250VAC/30VDC 250VAC/30VDC Max. switching current 15A Max. switching power 2770VA 240W 2770VA 240W UL Rating: 10A 120VAC /10A 277VAC Operate time (at nomi. Vot.): 10ms Release time (at nomi. Vot.): 5ms Module pin definitions: One foot - control side, two feet - Power supply (VCC), 3 feet - ground
