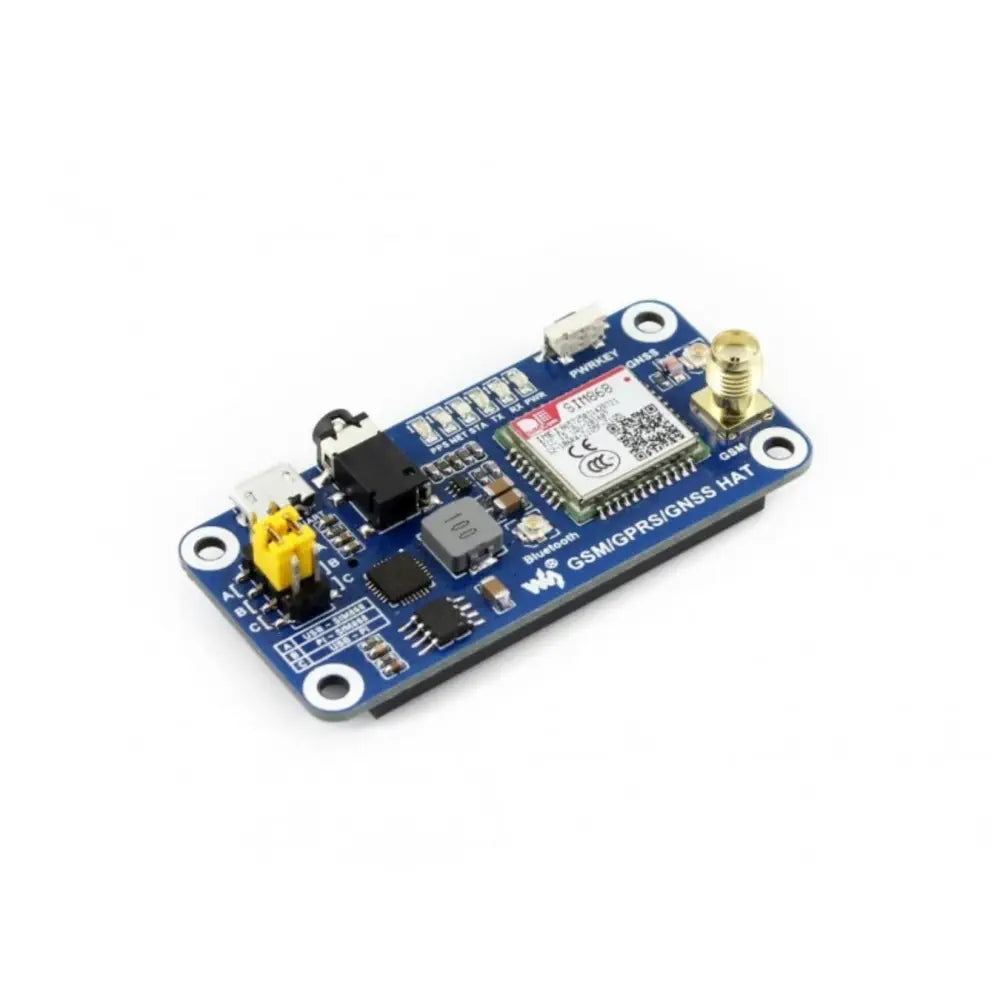

GSM/GPRS/GNSS/Bluetooth HAT for Raspberry Pi

$41.43
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

Description Raspberry Pi connectivity, compatible with Raspberry Pi 2B/3B/Zero/Zero W Supports SMS, phone call, GPRS, DTMF, HTTP, FTP, MMS, email, etc. Support GPS, COMPASS, Glonass, LBS base station positioning, omni-positioning Bluetooth 3.0, supports data transferring through Bluetooth Onboard USB TO UART converter CP2102 for UART debugging This is GSM/GPRS/GNSS/Bluetooth HAT for Raspberry Pi very handy, low power Raspberry Pi HAT which features multi communication functionalities: GSM, GPRS, GNSS and Bluetooth.It allows your Pi to easily make a telephone call, send messages, connect to wireless Internet, global position, transfer data via Bluetooth, and so on. View more What's Included 1 x GSM/GPRS/GNSS HAT 1 x GSM Antenna 1 x GPS External Antenna (B) 1 x Bluetooth Antenna 1 x USB type A plug to micro plug cable 1 x RPi screws pack (2pcs) Dimensions 30.2mm x 65mm Links PDF Files GSM/GPRS/GNSS/Bluetooth HAT for Raspberry Pi Datasheet GSM/GPRS/GNSS/Bluetooth HAT for Raspberry Pi Schematic Specifications 6x LEDs for indicating the module working status SIM card slot for 1.8V/3V SIM card RTC with backup battery holder Baudrate auto detection (1200bps ~115200bps) Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands) Supports SIM application toolkit: GSM 11.14 Release 99 Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32) GSM/GPRS Band GSM 850/EGSM 900/DCS 1800/PCS 1900 MHz Quad-band auto search Compliant to GSM phase 2/2+ Emitting power Class 4 (2W @ GSM 850/EGSM 900 MHz) Class 1 (1W @ DCS 1800/PCS 1900 MHz) GPRS connectivity GPRS multi-slot class 12 (default) GPRS multi-slot class 1~12 (configurable) GPRS data feature Downlink speed: max 85.6kbps Uplink speed: max 85.6kbps Coding schemes: CS-1\CS-2\CS-3\CS-4 Supports PAP (Password Authentication Protocol) for PPP connection Supports PBCCH Supports USSD SMS Supports: MT/MO/CB/Text/PDU mode SMS storage: SIM card Audio Voice encode/decode mode: Half Rate\Full Rate\Enhanced Full Rate\Adaptive muti rate Supports echo cancellation Supports noise reduction GNSS Receiver type 33 tracking channels 99 acquisition channels GPS L1 C/A code Sensitivity Tracking: -165 dBm Cold starts : -148 dBm Time-To-First-Fix Cold starts : 28s (typ.) Hot starts : < 1s Warm starts: 26s Accuracy Horizontal position : <2.5m CEP Bluetooth Integrates AT commands Compliant to Bluetooth specification3.0 + EDR Supports SPP, OPP, HFP/HSP, etc. Misc Operating voltage: 5V Operating temperature: -40°C ~ 85°C Storage temperature: -45°C ~ 90°C
