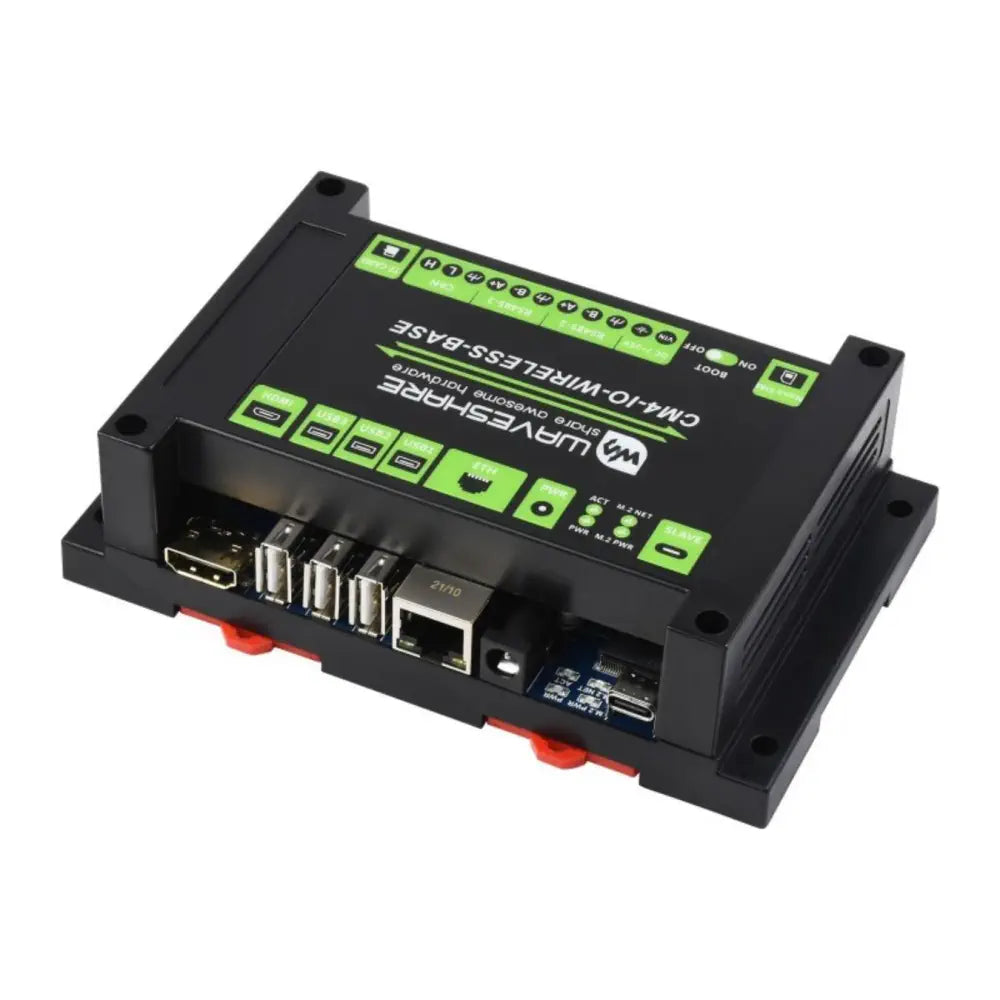

Industrial IoT Wireless Expansion Module for Raspberry Pi CM4 (Not Included)

Description Industrial IoT Wireless Expansion Module Designed for Raspberry Pi CM4 (Not Included) Combined with the industrial rail-mount protection case Industrial IoT module based on CM4 Power Input: 5 V or 7 ~ 36 V Communication: USB The Industrial IoT Wireless Expansion Module for Raspberry Pi CM4 (Not Included) is an industrial expansion module based on Raspberry Pi CM4, which features common interfaces such as Gigabit Ethernet, HDMI, USB, and GPIO, allows additional 4G / 5G / LoRa wireless communication modules to be connected via the M.2 or Mini-PCIe socket. There are also industrial interfaces/resources including RS485, CAN, and RTC. Combined with the industrial rail-mount protection case, the module is an ideal choice for building an IoT gateway, 4G/5G router, IoT data acquisition, or even the PLC device in the industrial automatic control system, and more. View more What's Included 1x CM4-IO-WIRELESS-BASE 1x PCIe to 4G/LoRa Adapter 1x Screwdriver 1x Screws pack Dimensions Size 145 x 90 x 40 mm (L x W x H) Links PDF File Industrial IoT Wireless Expansion Module for Raspberry Pi CM4 (Not Included) - Schematics Specifications CM4 Socket: suitable for all variants of Compute Module 4 | Gigabit Ethernet RJ45 USB: USB 2.0 x3 Pin Header: Non-isolated RS485 x 2, Non-isolated CAN x 1, Partial GPIO pins Camera: MIPI CSI-2 x 1 (15-Pin 1 mm FPC connector) Video: HDMI x 1, supports 4K 30fps output RTC: Real-time clock with a battery socket and ability to wake Compute Module 4 Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants Fan Header: 5V/12V, allows speed adjustment and measurement Power Input: 5 V or 7 ~ 36 V Networking: M.2 B KEY / Mini-PCIe (via adapter), for connecting 5G / 4G / LoRa wireless module | Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication Weight: 0.196 kg
