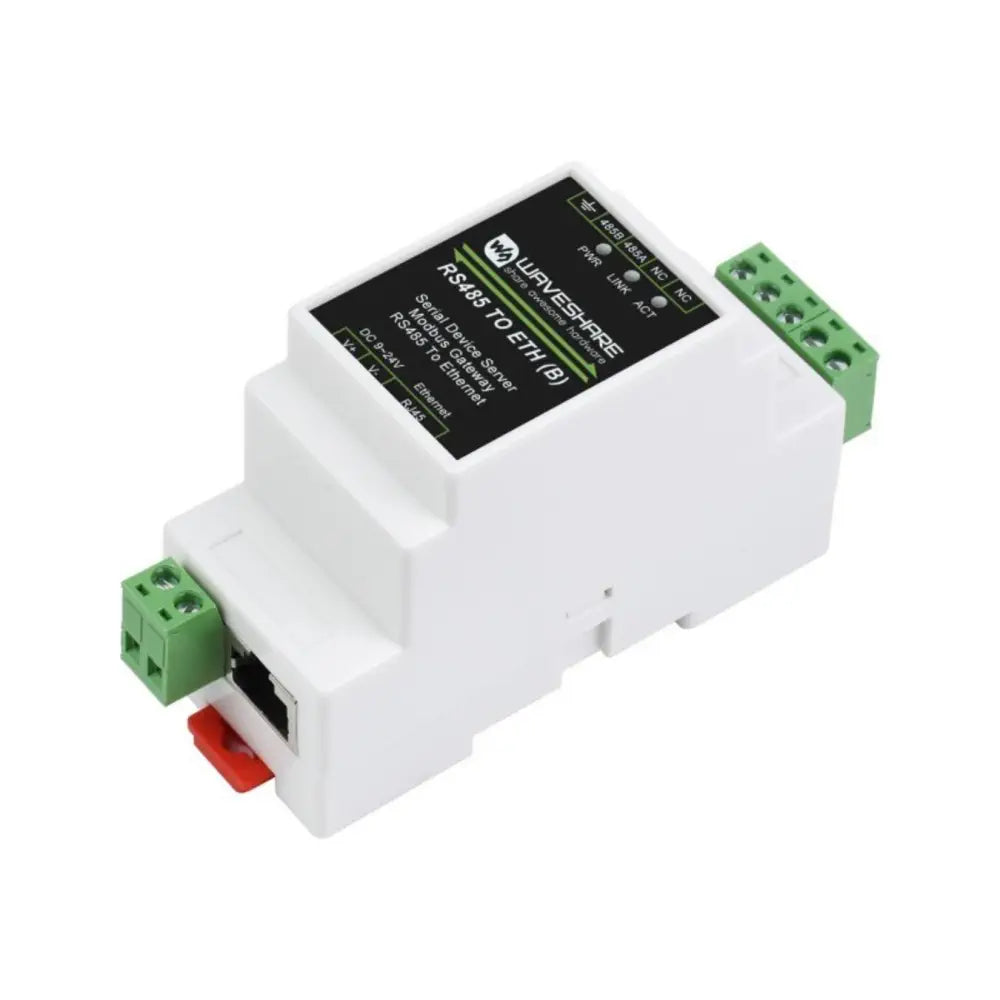

Industrial Serial Server, RS485 to RJ45 Ethernet, TCP/IP to Serial, Rail-Mount

Description Industrial Serial Server, RS485 to RJ45 Ethernet, TCP/IP to Serial, Rail-Mount Designed for industrial environment Combines multi functions in one Features RS485 and Ethernet ports Uses screw terminals for power input Supports 9~24 V wide-range power supply The Industrial Serial Server, RS485 to RJ45 Ethernet, TCP/IP to Serial, Rail-Mount designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS485 and Ethernet ports, uses screw terminals for power input, supports a 9~24 V wide-range power supply. Rail-mount flame-retardant case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring. View more What's Included 1x Industrial Serial Server, RS485 to RJ45 Ethernet, TCP/IP to Serial, Rail-Mount Dimensions Size 87 x 36 x 59 mm (L x W x H) Links PDF File Industrial Serial Server, RS485 to RJ45 Ethernet, TCP/IP to Serial, Rail-Mount User - Manual Specifications Communication interface: RS485, screw terminal, supports 32x slave devices Power supply: 9 ~ 24 V DC, screw terminal Ethernet: 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection Serial port: RS485 x 1: RXD, TXD, GND Baudrate: 300 ~ 115200 bps Parity bit: none, odd, even, mark, space Data bit: 5 ~ 9 bits Flow control: N/A Operating temperature: -40 ~ 85 °C Storage temperature: -45 ~ 165 °C Humidity range: 5% ~ 95% relative humidity Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS Configuration: host, web browser, device management functions library Communication method: TCP/IP direct communication, VCOM Operating mode: TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast Weight: 0.077 kg
