M5Stack Scale Kit w/ Weight Unit

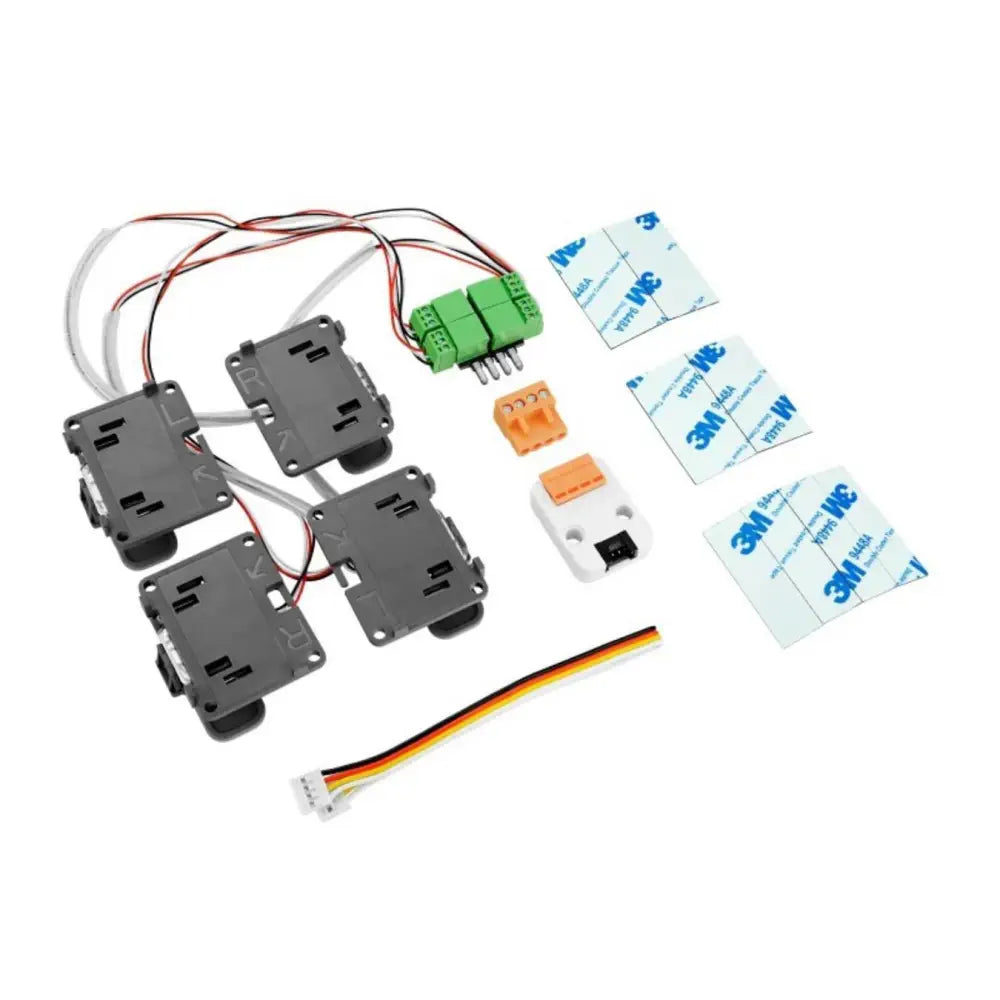

Description M5Stack Scale Kit w/ Weight Unit Offers a high precision low-cost weighing kit Designed for high precision electronic scale Consists of four pieces of half-bridge resistive strain gauges Equipped with a 24-bit A/D converter chip Built-in low-noise programmable amplifier The M5Stack Scale Kit w/ Weight Unit is a high-precision low-cost weighing kit. This digital Scales kit is consist of four pieces of half-bridge resistive strain gauges, with a total weighing range of 200 kg. It is equipped with a 24-bit A/D converter chip HX711, specially designed for the high precision electronic scale. The built-in low-noise programmable amplifier supports 32/64/128 times gain adjustment. With the help of M5Stack core for programming, you can create IoT based Weighing Scale in just a few minutes. Note: The Scale Kit will need a cover plate to work with, and the size of the cover plate should not exceed 50 cm on one side. View more What's Included 4x Half-bridge resistive strain gauge 1x Weight Unit 1x HY2.0-4P Cable (20 cm) 4x Double-sided adhesive paper (39 x 20 x 0.8 mm) 4x Double-sided adhesive paper (39 x 12 x 0.8 mm) Dimensions Size Double-sided adhesive paper size: 39 x 20 x 0.8 mm Double-sided adhesive paper size: 39 x 12 x 0.8 mm HY2.0-4P cable length: 20 cm Specifications A/D converter chip (HX711) Output Sensitivity: High Precision 24-bit ADC Programmable Gain Amplification: 32, 64, and 128 Output Data Rate: 10 SPS Half-Bridge Resistance Strain Gauge Output Sensitivity: 1.0 ± 0.1 m V/V Nonlinearity: 0.3 % FS Comprehensive Accuracy: 0.3 % FS Zero Output: ± 0.3 mv / V Each The difference between the upper and lower impedance of the gauge strain gauge: 0.8 Ω Output (input) impedance: 1000 ± 5 Ω Other Development platform: Arduino Weight: 126.3 g
