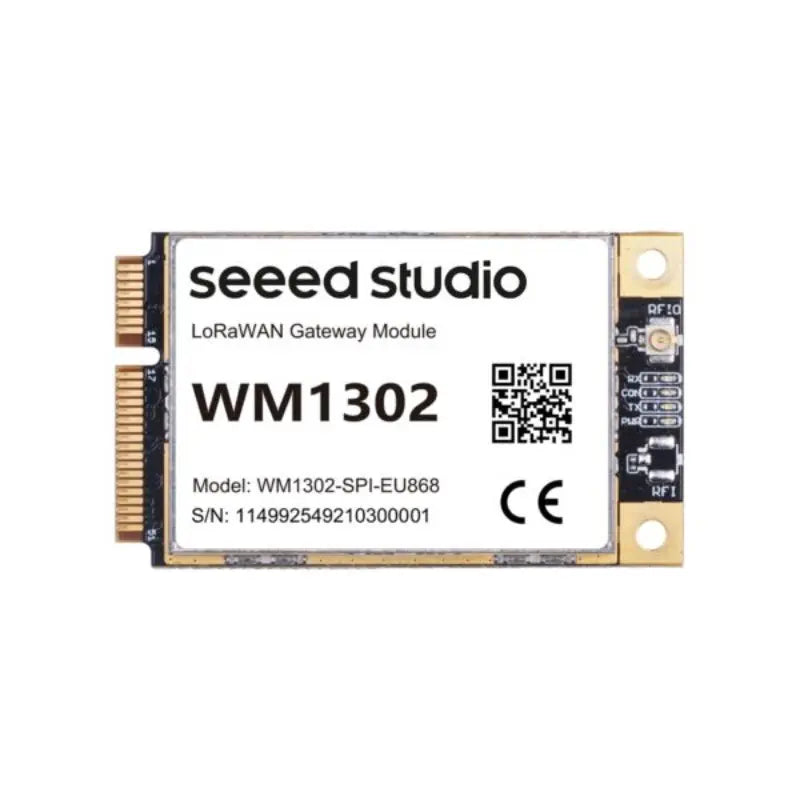

SeeedStudio Wio-WM1302 Long Range Gateway Module (SPI) - EU868

Description SeeedStudio Wio-WM1302 Long Range Gateway Module (SPI) - EU868 Leverages Semtech® SX1302 LoRa® chip Offers extremely low power consumption Ensures high sensitivity down to -139 dBm Supports SPI and USB versions Certified for CE, FCC ID, and TELEC The SeeedStudio Wio-WM1302 Long Range Gateway Module (SPI) - EU868 is a cutting-edge gateway module designed in a mini-PCIe form factor, leveraging the advanced capabilities of the Semtech® SX1302 baseband LoRa® chip. This module is engineered to deliver exceptional performance with remarkably low power consumption, making it an ideal choice for integration into various gateway devices. Its design facilitates seamless incorporation into LoRaWAN gateway systems, significantly reducing the complexity and time required for development. The module operates efficiently at ultra-low temperatures, eliminating the need for additional heat dissipation and thereby minimizing the overall size of the gateway. It boasts high sensitivity and robust transmission power, ensuring reliable communication in machine-to-machine (M2M) and Internet of Things (IoT) applications. The module is certified for use across multiple regions, including CE for EU868, FCC for US915, and TELEC for AS923, which simplifies the certification process for final products. This versatile module supports a broad spectrum of LoRaWAN frequency plans, making it adaptable to various global standards. It is particularly suited for low-power wide-area network (LPWAN) gateway applications, offering a streamlined solution for developers seeking to implement efficient and high-performance LoRa gateway devices. View more What's Included 1x SeeedStudio Wio-WM1302 Long Range Gateway Module (SPI) - EU868 Dimensions Width: 30 mm Length: 50.95 mm Specifications Powered by Semtech® SX1302 baseband LoRa® chip Extremely low power consumption and high performance Mini-PCIe form factor with standard 52-pin golden finger Ultra-low operating temperature, no additional heat dissipation needed High sensitivity down to -139 dBm @SF12 with SX1250 TX/RX front-end TX power up to 26 dBm @3.3V Certified with CE (EU868) SPI and USB versions available Frequency band: EU868 Standby power consumption (SPI version): 7.5 mA TX maximum power consumption (SPI version): 415 mA RX power consumption (SPI version): 40 mA Standby power consumption (USB version): 20 mA TX maximum power consumption (USB version): 425 mA RX power consumption (USB version): 53 mA LBT (Listen Before Talk) support Antenna connector: U.FL Operating temperature: -40°C to 85°C
