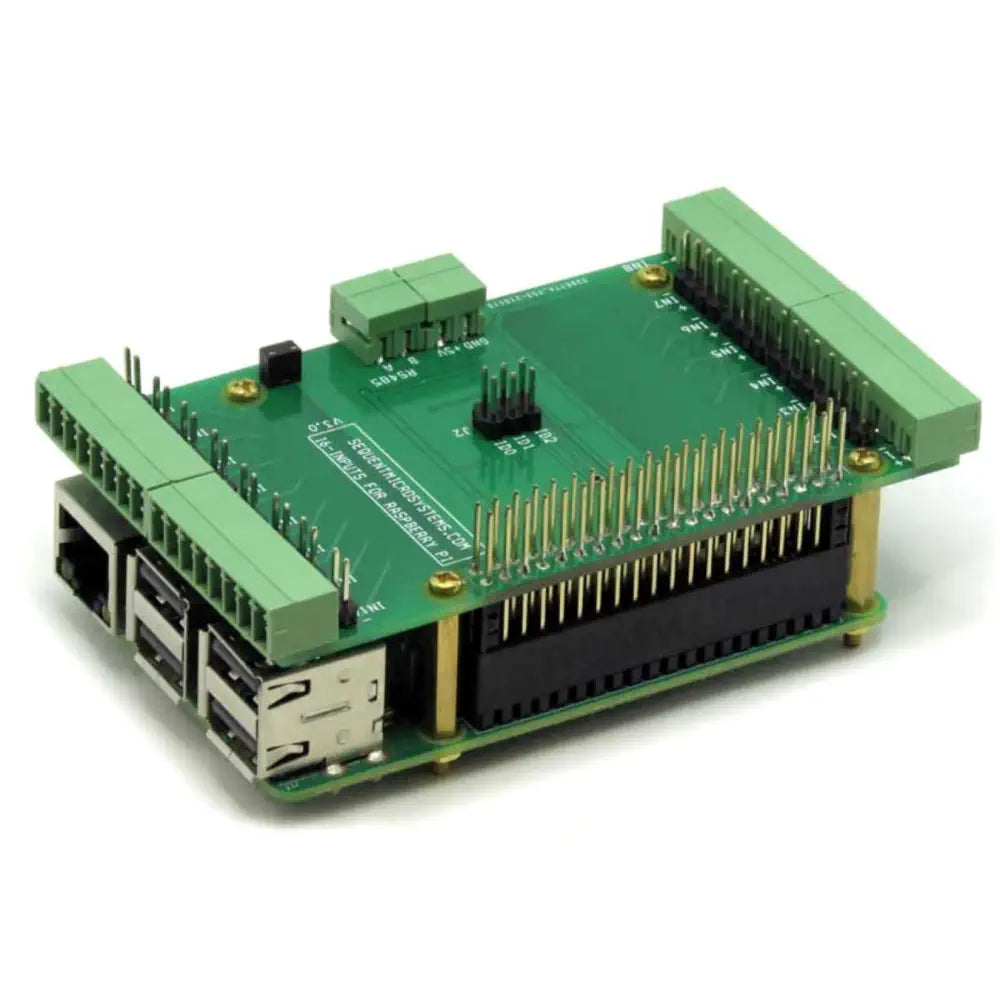

Sequent Microsystems 16 Universal Inputs 8-Layer Stackable HAT for Raspberry Pi

Description Sequent Microsystems 16 Universal Inputs 8-Layer Stackable HAT for Raspberry Pi Offers sixteen universal opto-isolated inputs 3V - 24V AC/DC Provides eight-layer stackable to 128 inputs Pluggable Connectors 26-16 AWG wires Features 8 LEDs showing the status of groups of 8 inputs Port: RS485/MODBUS The Sequent Microsystems 16 Universal Inputs 8-Layer Stackable HAT for Raspberry Pi has 16 optically isolated digital inputs. Input ranges can be jumper-selected for each channel, from 3 volts to 24 volts. Inputs can read both DC and AC signals. The card communicates with Raspberry Pi using only the I2C port, leaving all the other 24 GPIO pins available for your use. It has also an RS-485 port, a power LED, and a push-button that can be used to shut down the Raspberry Pi. Pluggable connectors make the 16-INPUTS card easy to use when multiple cards are stacked up. View more What's Included 1x Sequent Microsystems 16 Universal Inputs 8-Layer Stackable HAT for Raspberry Pi Dimensions Size 93 x 56 mm (L x W) Links PDF File Sequent Microsystems 16 Universal Inputs 8-Layer Stackable HAT for Raspberry Pi - Schematics Specifications Sixteen universal opto-isolated inputs 3V-24V AC/DC Eight layers stackable to 128 inputs Pluggable Connectors 26-16 AWG wires Port: RS485/MODBUS 8 LEDs showing the status of groups of 8 inputs General-purpose push-button
