Serial CAN-BUS Module
www.robotshop.com

Serial CAN-BUS Module

$24.36
{{option.name}}: {{selected_options[option.position]}}
{{value_obj.value}}
Store Logo

RobotShop USA

View Store

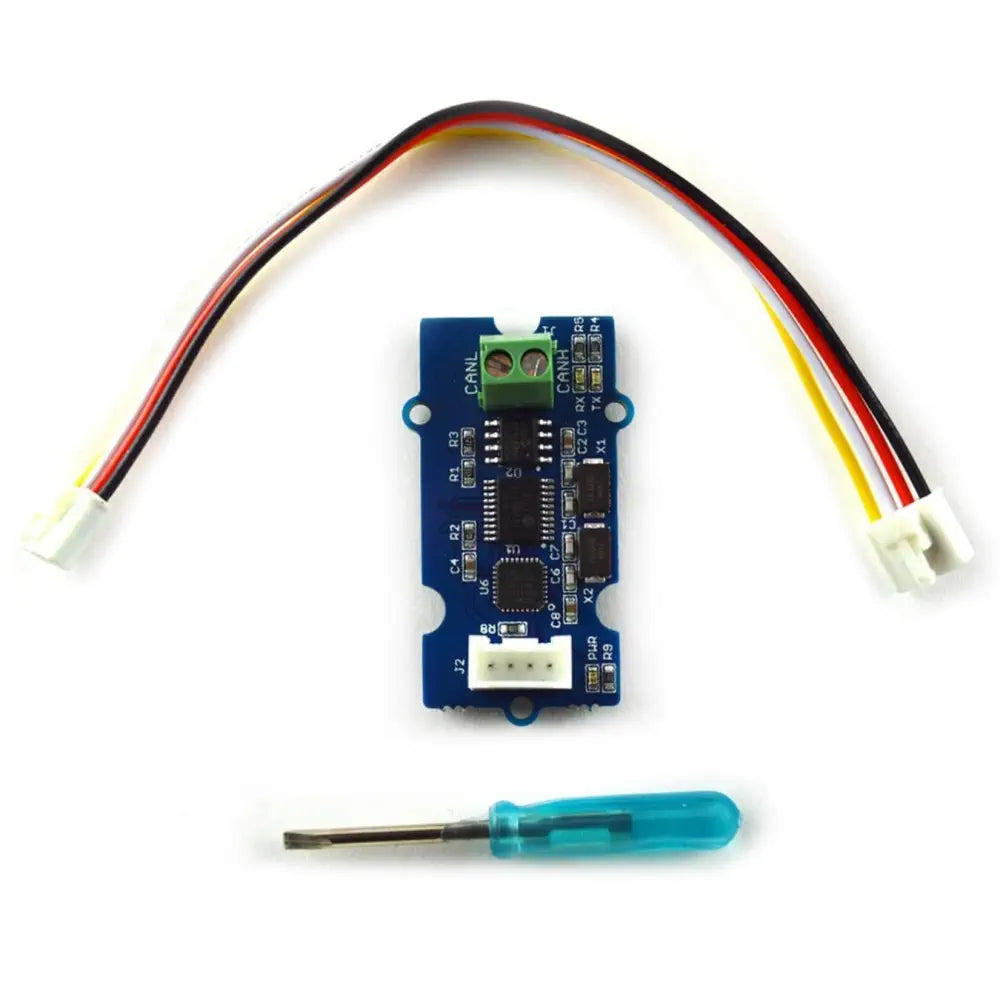

Description Uart to CAN-BUS communication Up to 115200 Uart baud rate (default 9600) CAN-BUS baud rate: 1Mb/s 4pin Grove connector 3.3V working voltage This Serial CAN-BUS Module provides your Arduino or other MCU with the capability to communication to CAN-BUS, such as hacking your vehicle. CAN-BUS is a common industrial bus because of its long travel distance, medium communication speed and high reliability. This Serial CAN-BUS module is based on MCP2551andMCP2515, which can provide speed up to 1Mb/s. There's Grove connection as well as a Grove cable included in the kit. View more What's Included 1 x Serial CAN-Bus PCBA 1 x 4 Pin Grove cable 1 x Small screw Dimensions 20mm x 40mm x 10mm Links PDF File Serial CAN-BUS Module Datasheet Specifications Weight: G.W 9.5g 4 pin 2.0mm Grove Connector Power and status led indicator Send and Recv led indicator 3.5mm terminal to connect to CAN Bus (CAN_H & CAN_L) 120Ω resistor, default connected
