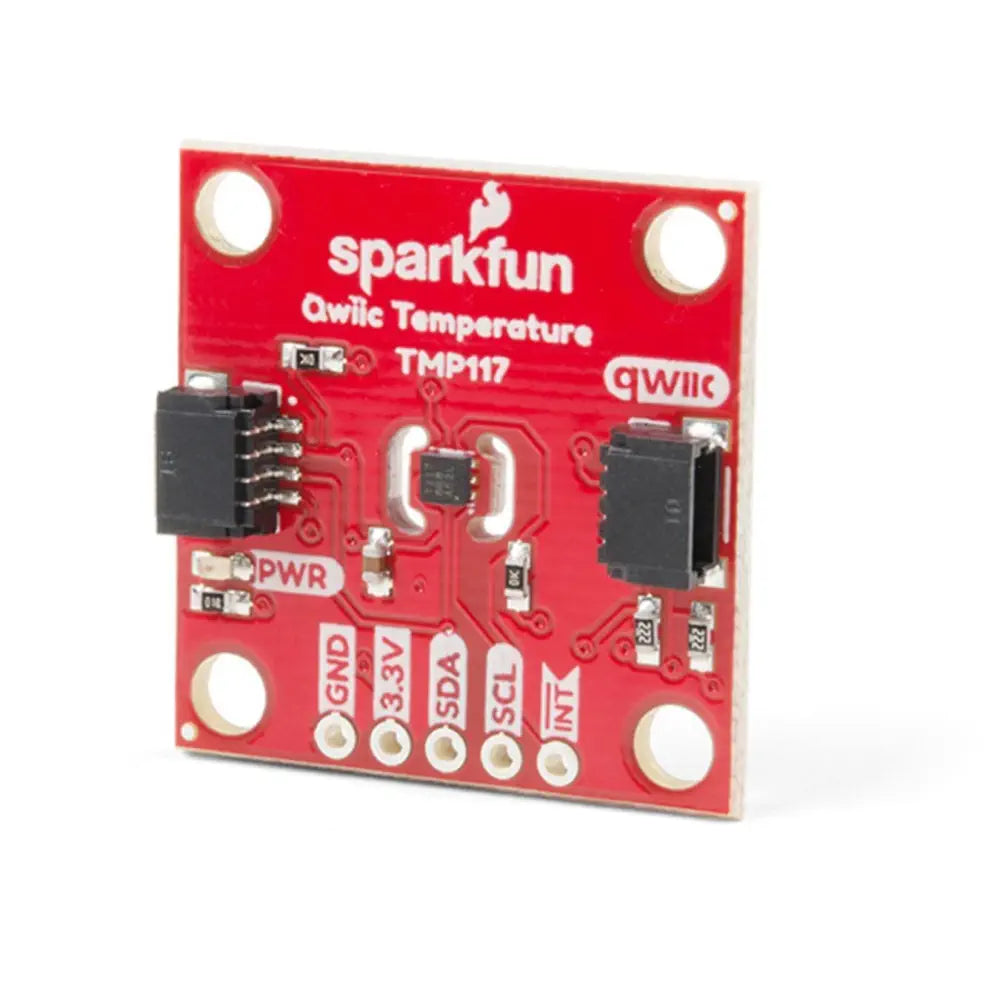

SparkFun High Precision Temperature Sensor TMP117 (Qwiic)

Description SparkFun High Precision Temperature Sensor TMP117 (Qwiic) Programmable temperature alert limits Features selectable averaging for reduced noise Low power consumption Equipped with an I2C interface No soldering required The SparkFun High Precision Temperature Sensor TMP117 (Qwiic) is a high precision temperature sensor equipped with an I2C interface. It outputs temperature readings with high precision of ±0.1°C across the temperature range of -20°C to +50°Cs with no calibration and a maximum range from -55°C to 150°C. The sensor also has a very low power consumption rate which minimizes the impact of self-heating on measurement accuracy. Utilizing the handy Qwiic system, no soldering is required to connect it to the rest of your system. However, they still have broken out 0.1" spaced pins in case you prefer to use a breadboard. View more What's Included 1 x SparkFun High Precision Temperature Sensor TMP117 (Qwiic) Links PDF Files SparkFun High Precision Temperature Sensor TMP117 (Qwiic) - Schematics SparkFun High Precision Temperature Sensor TMP117 (Qwiic) - Datasheet Website SparkFun High Precision Temperature Sensor TMP117 (Qwiic) - Hookup Guide Specifications Uses I2C interface (Qwiic-enabled) Four selectable addresses 0x48 (default), 0x49, 0x4A, 0x4B 16-bit resolution, 0.0078°C High accuracy, digital temperature sensor ±0.1°C (max) from –20°C to 50°C ±0.15°C (max) from –40°C to 70°C ±0.2°C (max) from –40°C to 100°C ±0.25°C (max) from –55°C to 125°C ±0.3°C (max) from –55°C to 150°C Operating temperature range -55°C to +150°C Operating voltage range 1.8V to 5.5V Typically 3.3V if using the Qwiic cable Low power consumption 3.5µA (1-Hz conversion cycle) 150nA (shutdown current) Programmable operating modes Continuous, one-shot, and shutdown Programmable temperature alert limits Selectable averaging for reduced noise Digital offset for system correction NIST traceability
