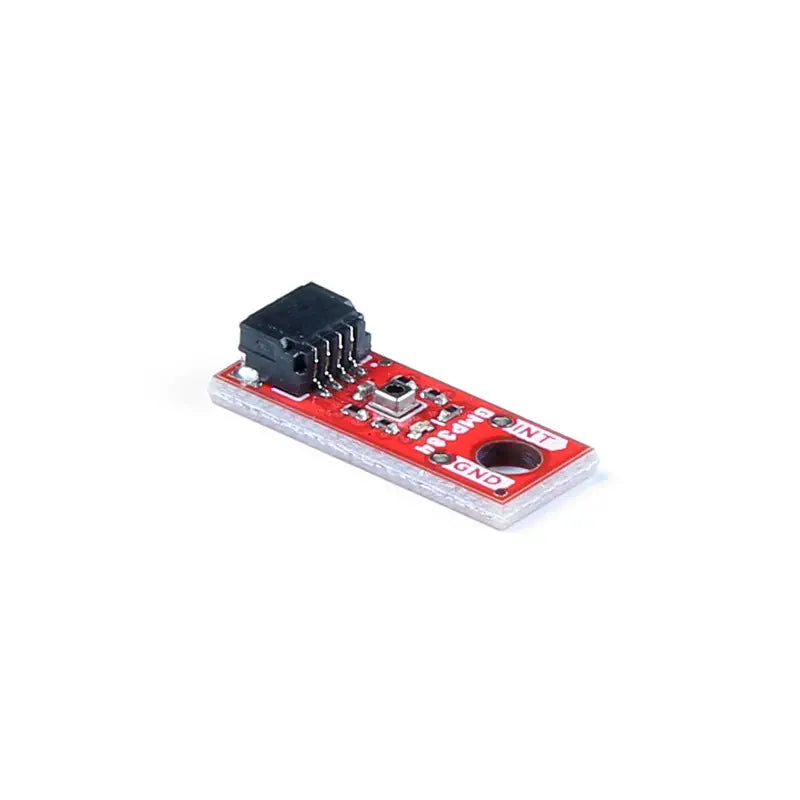

SparkFun Micro Pressure Sensor - BMP384 (Qwiic)

Description SparkFun BMP384 Micro Pressure Sensor (Qwiic) High-resolution Bosch Sensortec BMP384 sensor Increased resistance to liquids with gel-filled cavity Wide measurement range: 300 hPa to 1250 hPa, -40 to +85 °C Configurable oversampling, FIFO buffer, and low-pass filter Convenient Qwiic system for solder-free connections The SparkFun BMP384 Micro Pressure Sensor (Qwiic) features a high-resolution Bosch Sensortec BMP384 pressure sensor. With its gel-filled cavity, the sensor offers increased resistance to liquids, making it suitable for monitoring pressure in humid environments or near water. However, it is not waterproof without proper integration. The BMP384 ensures excellent accuracy across a wide measurement range (300 to 1250 hPa and -40 to +85 °C) and has a small footprint, making it ideal for projects with limited space. Additional features include a configurable oversampling setting, a FIFO buffer for storing up to 73 measurements, and a low-pass filter, allowing customization based on application requirements. The Qwiic Pressure Sensor communicates via I2C, utilizing the convenient Qwiic system for solder-free connections. View more What's Included 1x SparkFun Micro Pressure Sensor - BMP384 (Qwiic) Dimensions 19.05 x 7.62 mm / 0.75 x 0.30 inches Links Website SparkFun BMP384 Micro Pressure Sensor (Qwiic) - Arduino Library Multimedia docReady(function() {$('button[aria-controls=unique-tab-5]').one('click',function() {$("#iframe-video-1").html('');})}); Specifications The Supply Voltage Range is between 1.65 and 3.6 V The Current Draw is 700 µA at peak while measuring pressure and 2 µA in Sleep Mode Data Transfer Speeds are I2C - 3.4 MHz The I2C Address is 0x77 (Default) and 0x76 (Alternate) The board includes an Internal Temperature Sensor There is 1x Horizontal Qwiic Connection Port
