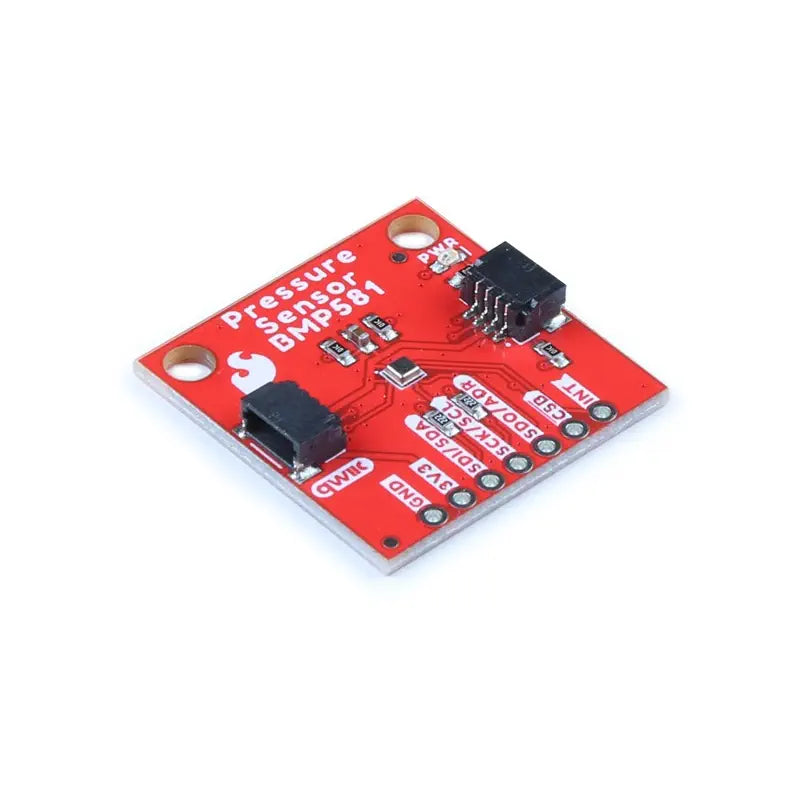

SparkFun Pressure Sensor - BMP581 (Qwiic)

Description SparkFun BMP581 Pressure Sensor (Qwiic) Exceptional resolution with 1/64Pa pressure data On-chip linearization and temperature compensation Easy-to-use Qwiic Connect System for I2C communication Versatile SPI communication option available Wide pressure sensing range of 30 - 125 kPa The SparkFun BMP581 Pressure Sensor (Qwiic) is a 1 by 1 inch absolute pressure sensor breakout from Bosch Sensortec. It offers exceptional resolution (down to 1/64 Pa) and accuracy, with on-chip linearization and temperature compensation for accurate pressure and temperature data. The sensor communicates via I2C using the Qwiic Connect System, eliminating the need for soldering. Additionally, I2C signals are routed to 0.1-inch spaced pins for those who prefer a soldered connection, and the board can be configured for SPI communication using the same pins. View more What's Included 1x SparkFun Pressure Sensor - BMP581 (Qwiic) Dimensions 1 x 1 inch Links Websites SparkFun BMP581 Pressure Sensor (Qwiic) - Arduino Library SparkFun BMP581 Pressure Sensor (Qwiic) - Hardware Repo Specifications Supply Voltage Range: 1.71 - 3.6 V Current Draw: 260 µA - Maximum draw during measurements 1.3 µA - At 1 Hz in Low Power Mode 0.55 µA - Absolute minimum in Deep Standby mode Data Transfer Rates: I2C - 1 MHz SPI - 12 MHz Non-Volatile Memory: 6-bytes Pressure Sensing Range: 30 - 125kPa Pressure Data Resolution: 1/64Pa Absolute Pressure Accuracy: ±0.5hPa Temperature Sensing Range: -40 - 85 °C Output Data Rate: 0.125 - 240 Hz (Normal Mode) Max Output Data Rate: 622 Hz (Continuous Mode, 1x Oversampling) I2C Address: 0x47 (Default), 0x46 (Alternate) Qwiic Connectors: 2x
