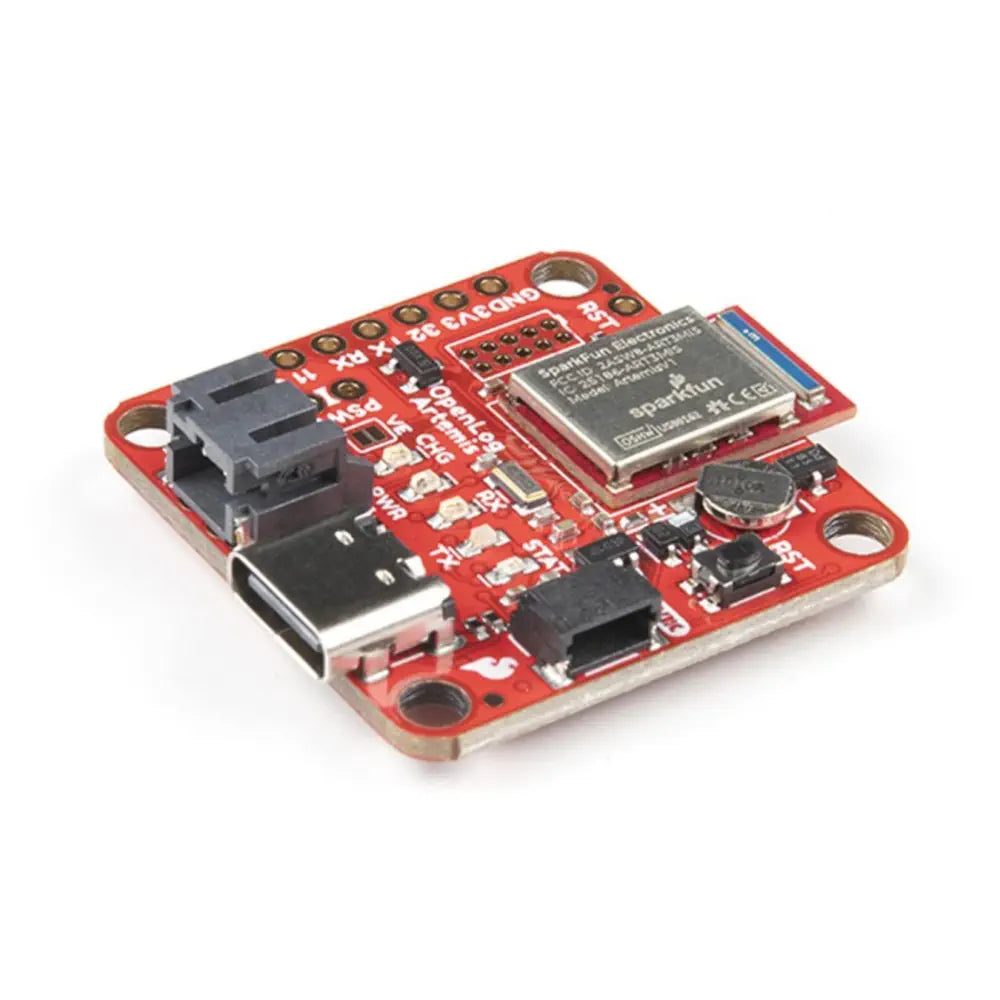

SparkFun OpenLog Artemis

Description SparkFun OpenLog Artemis Offers an IMU for built-in logging Comes preprogrammed to automatically log IMU Provides four ADC channels Highly configurable over an easy to use the serial interface Doesn't require soldering The SparkFun OpenLog Artemis is an open-source data logger that comes preprogrammed to automatically log IMU, GPS, serial data, and various pressure, humidity, and distance sensors. All without writing a single line of code! OpenLog Artemis, or "OLA," automatically detects, configures, and logs Qwiic sensors. The OLA is specifically designed for users who just need to capture a lot of data to a CSV and get back to their larger project. View more What's Included 1 x SparkFun OpenLog Artemis Dimensions Size 1.20 x 1.20 inch Links PDF File SparkFun OpenLog Artemis - Schematics Multimedia docReady(function() {$('button[aria-controls=unique-tab-5]').one('click',function() {$("#iframe-video-1").html('');})}); Specifications Artemis Module (Cortex-M4F based Apollo3 microcontroller) Configurable via CH340E and Artemis Firmware Upload GUI Operating voltage range 3.3 V to 6.5 V (via VIN with optional external power switch) Current consumption ~20 mA (Run) ~80 µA (Sleep) ~18 µA (Deep Sleep - regulator shut down) Ports 1 x USB type C 1 x LiPo battery enabled 1 x Qwiic enabled I2C with power control 1 x SWD 2x5 header 4 x Analog-to-digital 14-bit, up to 1900 Hz, 2 V max (3.3 V compatible) Serial 1 x microSD socket RTC with 1mAhr battery backup 9-axis IMU logging up to 250 Hz LEDs Power LiPo charge indicator Serial Tx and Rx Status
