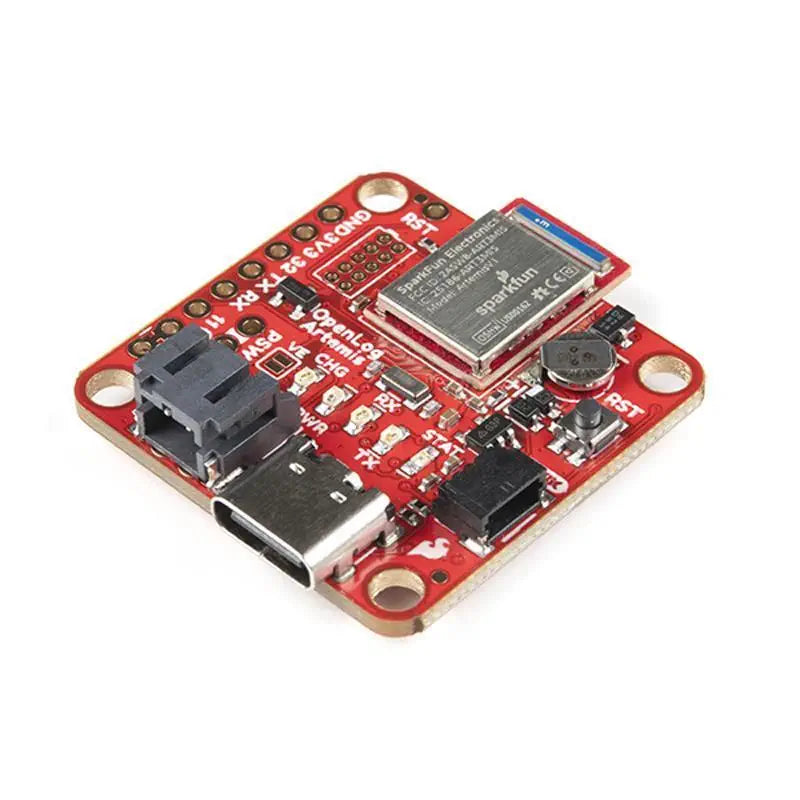

SparkFun OpenLog Artemis (w/o IMU)

Description SparkFun OpenLog Artemis (w/o IMU) Offers an open-source data logger Designed for users who just need to capture a lot of data to a CSV Comes preprogrammed to automatically log GPS, serial data, and distance sensors Highly configurable over an easy-to-use serial interface Automatically detects, configures, and logs Qwiic sensors The SparkFun OpenLog Artemis (w/o IMU) is an open-source data logger that comes preprogrammed to automatically log GPS, serial data, and various pressure, humidity, and distance sensors. All without writing a single line of code! OpenLog Artemis, or "OLA," automatically detects, configures, and logs Qwiic sensors. The OLA is specifically designed for users who just need to capture a lot of data to a CSV and get back to their larger project. The OpenLog Artemis is highly configurable over an easy-to-use serial interface. Simply plug in a USB-C cable and open a terminal at 115200 bps. The logging output is automatically streamed to both the terminal and the microSD. Pressing any key will open the configuration menu. The OpenLog Artemis automatically scans, detects, configures, and logs various Qwiic sensors plugged into the board (No soldering! No programming). View more What's Included 1x SparkFun OpenLog Artemis (w/o IMU) Links PDF File SparkFun OpenLog Artemis (w/o IMU) - Schematics Multimedia docReady(function() {$('button[aria-controls=unique-tab-5]').one('click',function() {$("#iframe-video-1").html('');})}); Specifications Artemis Module (Cortex-M4F based Apollo3 microcontroller): Configurable via CH340E and Artemis Firmware Upload GUI Serial: Logging speeds up to 500000 bps 1x microSD socket: Support for FAT32 and older FAT16 formats up to 32GB with power control RTC with 1mAhr battery backup LEDs: Power | LiPo charge indicator | Serial Tx and Rx | Status Operating voltage range 3.3V to 6.5V (via VIN with optional external power switch) 5V with USB (via 5V or USB type C) 3.6V to 4.2V with LiPo battery (via VBATT or 2-pin JST) Built-in MCP73831 single-cell LiPo charger Minimum 450mA charge rate 3.3 V (via 3V3) Current consumption ~20 mA (Run) ~80 µA (Sleep) ~18 µA (Deep Sleep - regulator shut down) Ports 1x USB type C 1x LiPo battery enabled 1x Qwiic enabled I2C with power control 1x SWD 2x5 header 4x Analog-to-digital: 14-bit, up to 1900Hz, 2V max (3.3V compatible)
