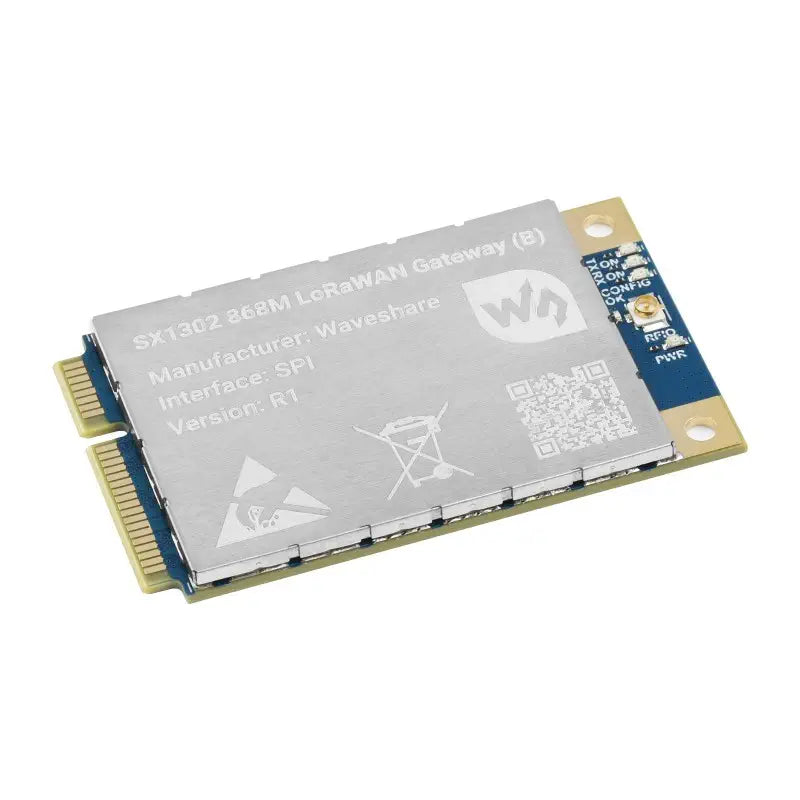

SX130x 868M LoRaWAN Gateway Module/HAT for Raspberry Pi, Mini-PCIe, Long Range

Description Sx130x 868M LoRaWAN Gateway Module/HAT for Raspberry Pi, Mini-Pcie, Extended Range High-performance Sx130x 868M LoRaWAN Gateway Module Extended range for IoT and wireless projects Compatible with Raspberry Pi and Mini-PCIe Compact in size Wide operating temperature range: -40~85 °C The Sx130x 868M LoRaWAN Gateway Module/HAT for Raspberry Pi, Mini-Pcie, Extended Range is a high-performance and versatile solution designed for Raspberry Pi and Mini-PCIe applications. This module offers an extended range of communication, making it ideal for various IoT and wireless projects. Key specifications of this module include a band chip of SX1302 and SX1303, providing a frequency range of 868M for EU868, IN865, and RU864, as well as 915M for US915, AU915, and KR920. The power supply operates at 5V, with modulation of LoRa/(G)FSK. Communication is facilitated through SPI and I2C bus, with an external connector of Mini-PCIe. The module is designed to withstand a wide range of operating temperatures, from -40 to 85 ℃. With dimensions of 50.95 x 30 mm, this compact and powerful module is an excellent choice for those seeking to enhance their Raspberry Pi or Mini-PCIe projects with advanced communication capabilities. View more What's Included 1x SX130x LoRaWAN Gateway Module (B) 1x IPEX1 to SMA wire 1x Antenna 868M 5dBi 1x SX130x LoRaWAN Gateway HAT 1x GPS antenna 1x 2x20PIN female pinheader 1x Dual IPEX1 wire 1x Screws pack Dimensions Size 50.95 x 30 mm Specifications Band Chip: SX1302, SX1303 Frequency range: 868M: EU868, IN865, RU864 915M: US915, AU915, KR920 Power supply: 5 V Modulation: LoRa/(G)FSK Communication bus: SPI, I2C External connector: Mini-PCIe Operating temperature: -40~85 °C
