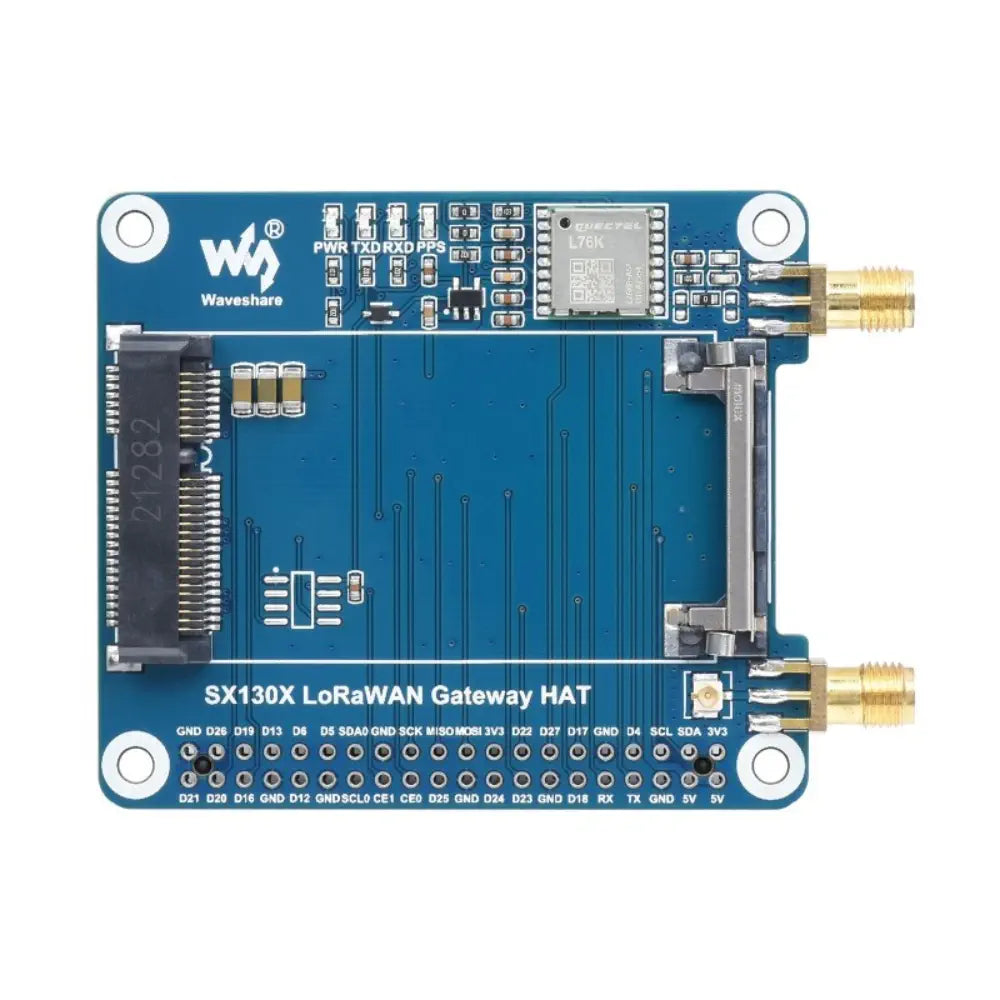

Waveshare SX1303 868m LoRaWAN Gateway HAT for Raspberry Pi, Standard Mini-PCIe Socket (W/ HAT)

Description Waveshare SX1303 868m LoRaWAN Gateway HAT for Raspberry Pi, Standard Mini-PCIe Socket (W/ HAT) Integrates Semtech SX1303 and SX1250 for high sensitivity Supports GPS with L76K module for accurate clock and location Features Mini-PCIe socket for easy system integration Equipped with 4 LED status indicators Offers versatile connectivity via SPI and I2C bus The Waveshare SX1303 868m LoRaWAN Gateway HAT for Raspberry Pi, Standard Mini-PCIe Socket (W/ HAT) is a sophisticated module designed for long-range wireless communication. It integrates the advanced SX1303 chip, known for its exceptional performance in terms of low power consumption, high receiving sensitivity, and the ability to handle multiple concurrent communications. This gateway module is equipped with a Semtech SX1303 normal band chip and an SX1250 radio RF front-end chip, which together provide a powerful combination of +26dBm emit power and -141dBm receiving sensitivity. The module is designed to be easil
