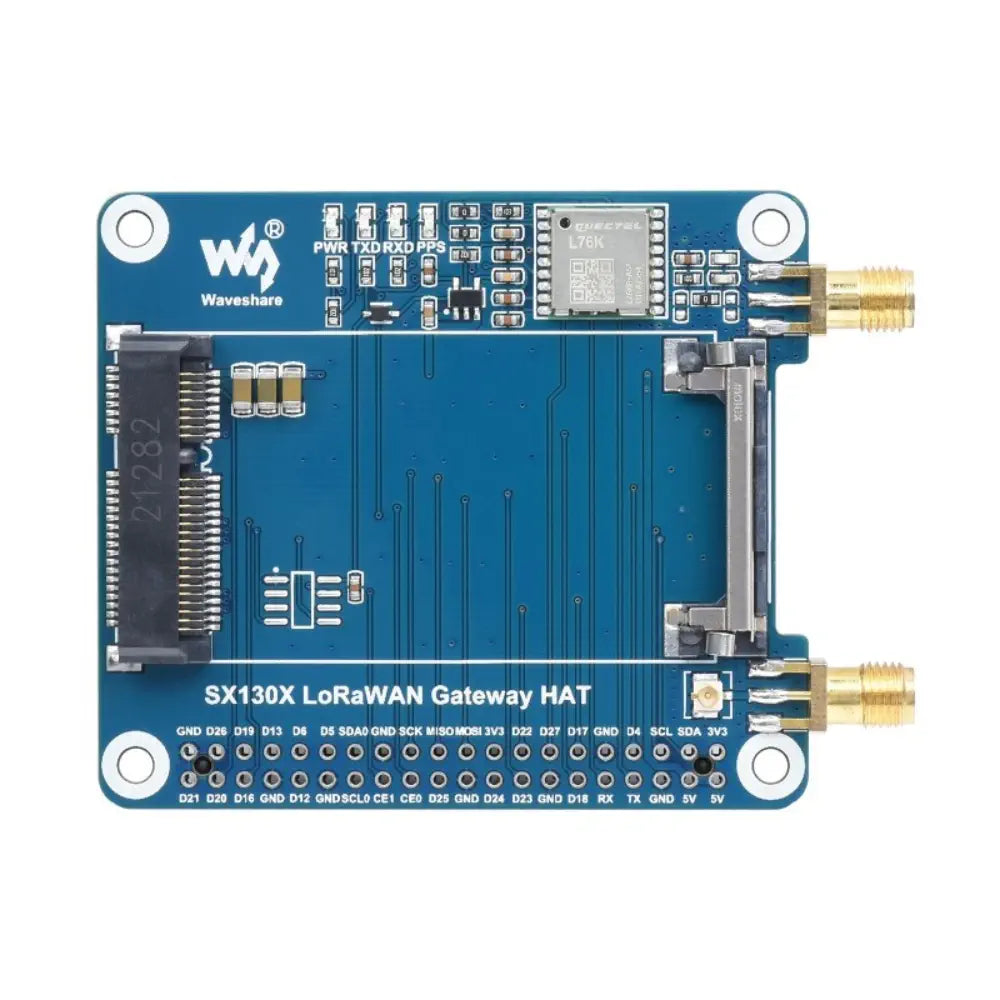

Waveshare SX1303 868m/915m LoRaWAN Gateway HAT for Raspberry Pi, Standard Mini-PCIe Socket (W/ HAT)

Description Waveshare SX1303 868m/915m LoRaWAN Gateway HAT for Raspberry Pi, Standard Mini-PCIe Socket (W/ HAT) Supports long-range communication with high node capacity Integrates Semtech SX1303 for low power and high sensitivity Facilitates easy integration via 52-pin Mini-PCIe socket Enhances precision through Fine Timestamp and TDOA Compatible with Raspberry Pi using 40PIN GPIO header The Waveshare SX1303 868m/915m LoRaWAN Gateway HAT for Raspberry Pi, Standard Mini-PCIe Socket (W/ HAT) is a sophisticated module designed for long-range communication and high node capacity. It integrates the advanced SX1302/3 normal band chip, which is renowned for its low power consumption and high receiving sensitivity, allowing for efficient heat dissipation and reduced material costs. This gateway module supports concurrent communication, making it ideal for high throughput situations. The module features a Semtech SX1302/3 band chip and an SX1250 radio RF front-end chip, providing +26d
