Waveshare DVK601 FPGA CPLD Mother Board

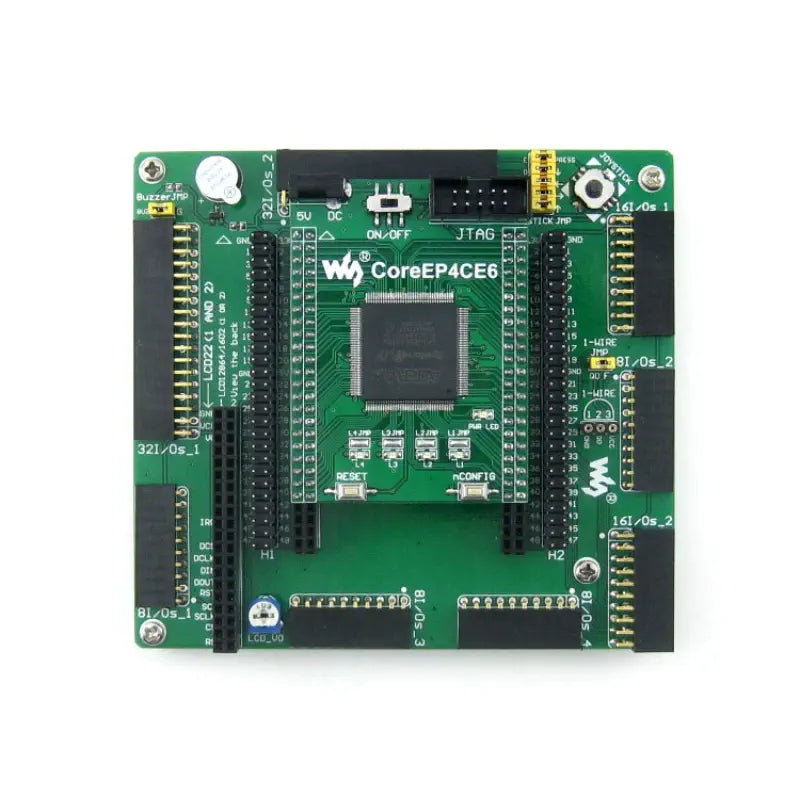

Description Waveshare DVK601 FPGA CPLD Mother Board Features seamless core board integration Supports multiple protocol simulations Includes LCD and ONE-WIRE interfaces Offers joystick and potentiometer controls Connects with various accessory modules The Waveshare DVK601 FPGA CPLD Mother Board is designed to facilitate the development of FPGA CPLD systems. It features expansion connectors that allow seamless integration with core boards and accessory modules. The board supports various interfaces, including multiple I/O interfaces capable of simulating protocols such as USART, I2C, and SPI, and driving devices like FRAM and USB. Additional features include an LCD interface, a ONE-WIRE interface for connecting specific devices, a joystick with five positions, and a potentiometer for display adjustments. Some interfaces may be non-functional with certain core boards. View more What's Included 1x Waveshare DVK601 FPGA CPLD Mother Board Links Website DVK601 - Wiki Specifications FPGA CPLD core board connector for connecting core boards with an integrated FPGA CPLD chip 8I/Os_1 interface for connecting accessory boards/modules 8I/Os_2 interface for connecting accessory boards/modules 8I/Os_3 interface for connecting accessory boards/modules 8I/Os_4 interface for connecting accessory boards/modules 16I/Os_1 interface for connecting accessory boards/modules 16I/Os_2 interface for connecting accessory boards/modules 32I/Os_1 interface for connecting accessory boards/modules 32I/Os_2 interface for connecting accessory boards/modules Capable of being simulated as USART, I2C, SPI, PS/2, etc Capable of driving devices such as FRAM, FLASH, USB, Ethernet, etc FPGA expansion connectors with accessible FPGA pins LCD interface for connecting LCD22, LCD12864, LCD1602 ONE-WIRE interface for connecting to ONE-WIRE devices (TO-92 package) Buzzer Joystick with five positions Potentiometer for LCD22 backlight adjustment or LCD12864, LCD1602 contrast adjustment Buzzer jumper Joystick jumper ONE-WIRE jumper Some interfaces may not be connected when using certain core boards
