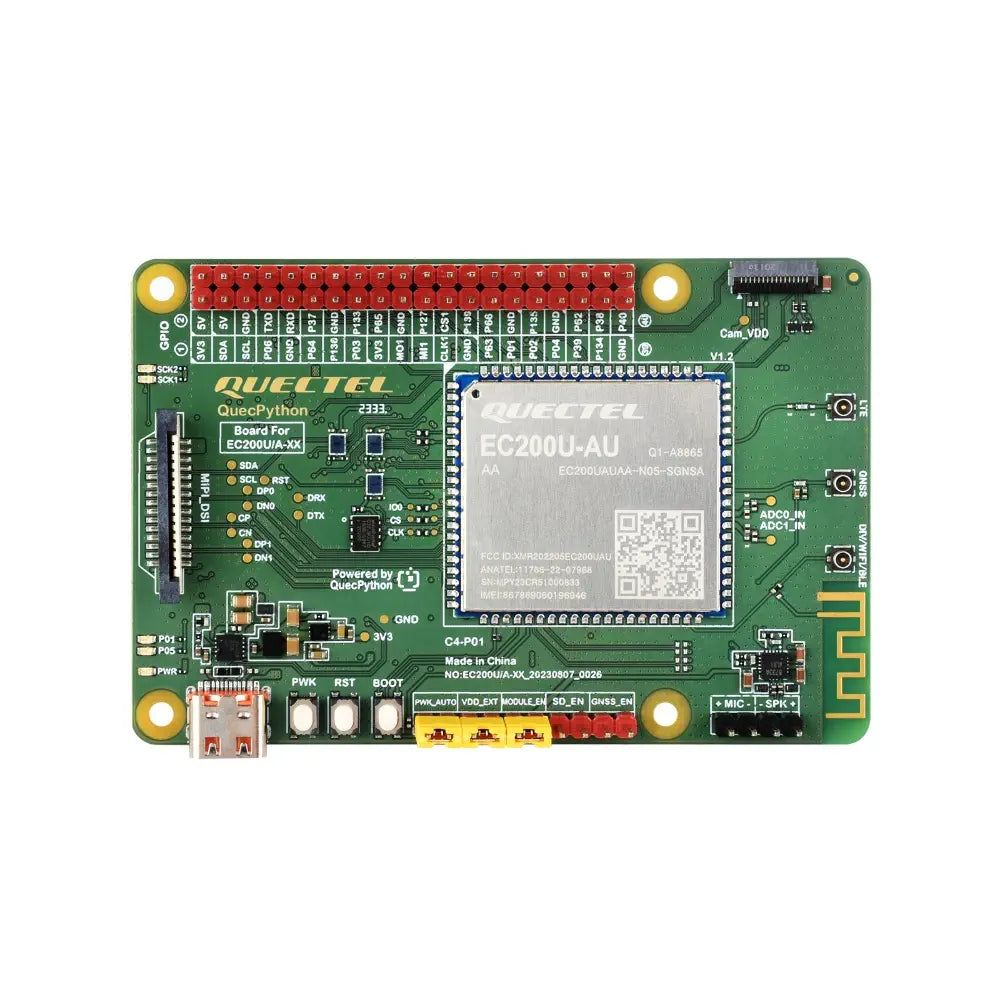

Waveshare EC200U-AU C4-P01 Dev Board for QuecPython, Multi-Mode & Multi-Band Support, LTE Cat-1 / Bluetooth, GNSS
Description Waveshare EC200U-AU C4-P01 Dev Board for QuecPython, Multi-Mode & Multi-Band Support, LTE Cat-1 / Bluetooth, GNSS Integrates EC200U-AU LTE Cat 1 module Supports multi-mode and multi-band operations Features Type-C port for easy connectivity Offers GNSS positioning: GPS, GLONASS, Galileo Includes dual SIM slots: Nano and eSIM The Waveshare EC200U-AU C4-P01 Dev Board for QuecPython, Multi-Mode & Multi-Band Support, LTE Cat-1 / Bluetooth, GNSS is a sophisticated development platform designed to facilitate advanced wireless communication and positioning capabilities. It integrates the EC200U-AU LTE Cat 1 module, offering a maximum data rate of up to 10 Mbps for downlink and 5 Mbps for uplink, supporting multi-mode and multi-band operations. This board is compact and cost-effective, making it suitable for a variety of applications. The development board features a Type-C port for straightforward connectivity and development, along with a 40PIN GPIO pin header that is compatible with most Raspberry Pi HATs. It supports a wide range of protocols including TCP, UDP, MQTT, and HTTPS, among others, ensuring versatile communication options. Additionally, it provides GNSS positioning capabilities, supporting systems such as GPS, GLONASS, and Galileo. The board includes a Nano SIM card slot and an eSIM card slot, allowing for dual card single standby functionality. It also features a MIPI connector for screen connectivity and a camera connector for SPI cameras, enhancing its multimedia capabilities. Development is further supported by tools like QPYcom and plugins for Thonny IDE and VSCode, along with comprehensive online resources and manuals. Note: Ensure proper handling within the operating temperature range of -30 to 75°C and storage temperature range of -45 to 90°C to maintain device integrity. View more What's Included 1x Waveshare EC200U-AU C4-P01 Dev Board for QuecPython, Multi-Mode & Multi-Band Support, LTE Cat-1 / Bluetooth, GNSS Links Website EC200U-AU C4-P01 Dev Board for QuecPython, Multi-Mode & Multi-Band support, LTE Cat-1 / Bluetooth, GNSS - Dev Board Wiki Specifications Equipped with EC200U-AU LTE Cat 1 wireless communication module with multi-mode and multi-band support Onboard 40-pin GPIO header compatible with most Raspberry Pi HATs Includes 5 LEDs to indicate module operating status Supports protocols: TCP, UDP, PPP, NITZ, PING, FILE, MQTT, NTP, HTTP, HTTPS, SSL, FTP, FTPS, CMUX, MMS Supports GNSS positioning: GPS, GLONASS, BDS, Galileo, QZSS Onboard Nano SIM card slot and eSIM card slot with dual card single standby Onboard MIPI connector for connecting MIPI screen, fully compatible with Raspberry Pi peripherals Onboard camera connector supports customized SPI cameras with a maximum of 300,000 pixels Provides tools such as QPYcom, Thonny IDE plugin, and VSCode plugin for easy learning and development Comes with online development resources and manual (example in QuecPython) Type-C USB port supports AT commands testing, GNSS positioning, firmware upgrading Operating temperature: -30 to 75°C Storage temperature: -45 to 90°C Interfaces include Raspberry Pi GPIO header, power ON/OFF jumper, 1.8V output jumper, module power supply jumper, SD power supply selection, GNSS active power supply selection, SIM card slot 1 for Nano SIM card, SIM card slot 2 for eSIM card, SD card slot, MIPI interface, camera interface, reserved matrix keyboard pads, USB Type-C port, ADC testing points, LTE main antenna connector, GNSS antenna connector, DIV/Wi-Fi/Bluetooth antenna connector, MIC & SPK header
